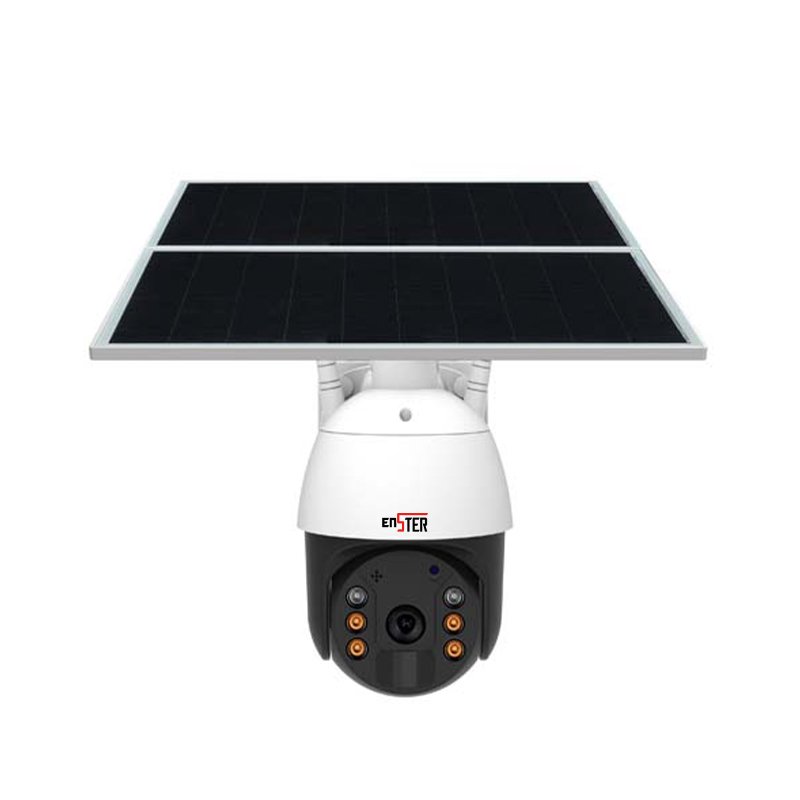

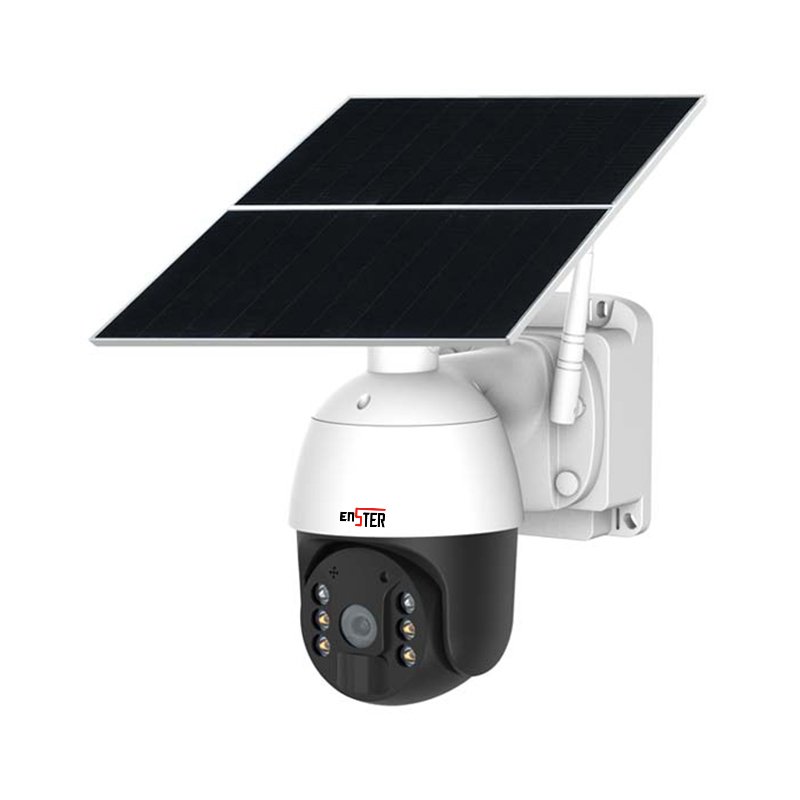

Product Description
 Main features:

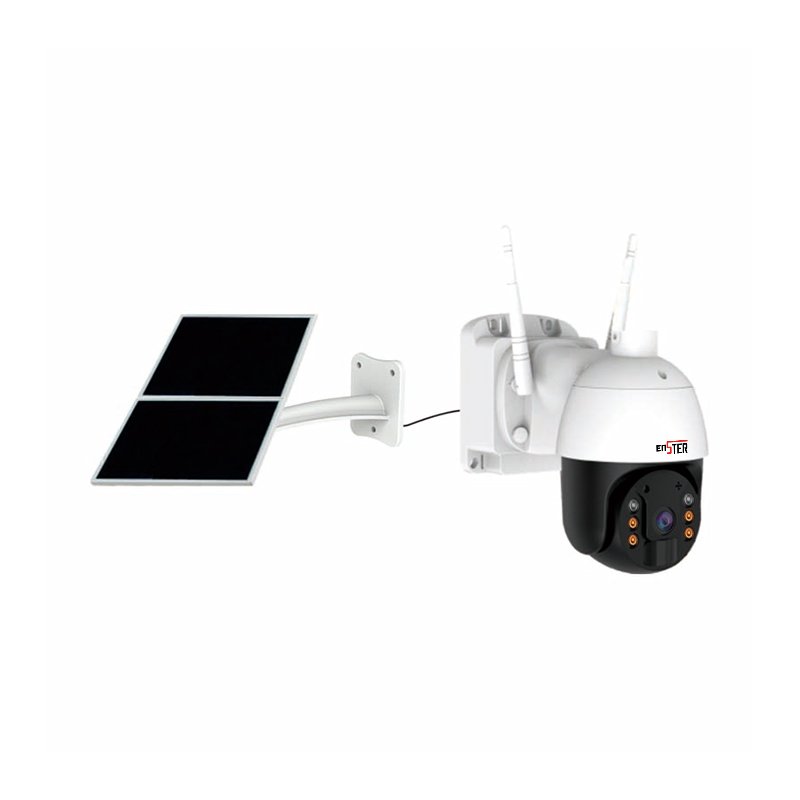

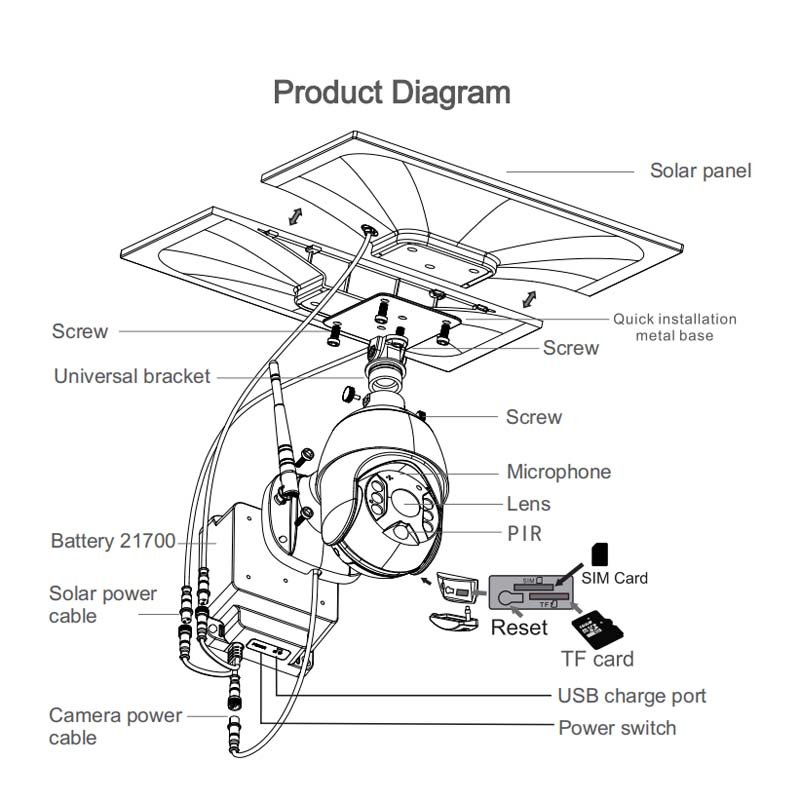

• 20W folding solar panels,Support All-in-One installation and separated installation
• 24 hours recording plus low power sleeping mode   Â
• Built-in high capacity Li-ion battery, support 7days/24hours Â
• PIR Human detection + AI Human shape detection
• High-performance ISP and 1/2.7" progressive sensor, blacklight full color
• 1920*1080P HD video
• Built-in microphone and loudspeaker,support two way audio
• Support Cloud storage and local storage
• APP support Android/IOS
• Metal material housing,IP65 waterproof
• Compact package fit for long distance transportationÂ
Model No. | Â NST-IPU7232-L | |
Camera Type | 4G Solar PTZ Camera | |
| General | Main processor | Ingenic-T31ZL |
APP operating system | Android, IOS | |
Sensor | 1/2.7 ″ Image Sensor | |
Compression format | H.264 + / H.265 | |
Resolution | 1920 * 1080 1080P | |
Network | 4G | TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD |
4G ModuleVersion | CN/ AU/ EU/ JP/ US/ ASEAN (Optional) | |
Alarm mode | Detection mode | PIR Human detection + AI Human shape detection |
Detection distance | 0 ~ 12M | |
Detection angle | 95 ° | |
Alarm method | Realtime calling or push message | |
Pan/Tilt | Pan/Tilt angle | Horizontal 355 ° Vertical 100 ° |
Rotating speed | Horizontal 55 °/S Vertical 40°/S | |
Night vision mode | Full color night vision | Illumination 0.001LUX |
Infrared light | Infrared LED distance 30M | |
White light | White LED distance 30M | |
Sound | Built-in speaker | 3W |
Built-in microphone | Monitoring range 20M | |
Lens | Focal length | 3.6mm |
| Lens Angle | 95 ° | |
Storage | Cloud storage | Cloud storage (alarm recording) |
Local storage | TF card (up to 128G) | |
Power supply | Power supply mode | Solar Panel+ Build in Batteries |
| Panel Material | monocrystalline silicon | |
Solar Energy power | 20W | |
Battery capacity | 6*21700 battery 30000MAH | |
Working power | 4W | |
Standby power | 0.003W | |
Others | working environment | Indoor / outdoor |
Operating temperature | -30 ° ~ + 60 ° | |
Working humidity | 0% ~ 90% RH | |
Package | Net weight | 3.8kg/pc |
Color box size | 340*240*180mm | |
| Quantity in carton | 4pcs | |
G.W. | 16.5KG/CTN | |
Carton size | 355*494*380mm | |
