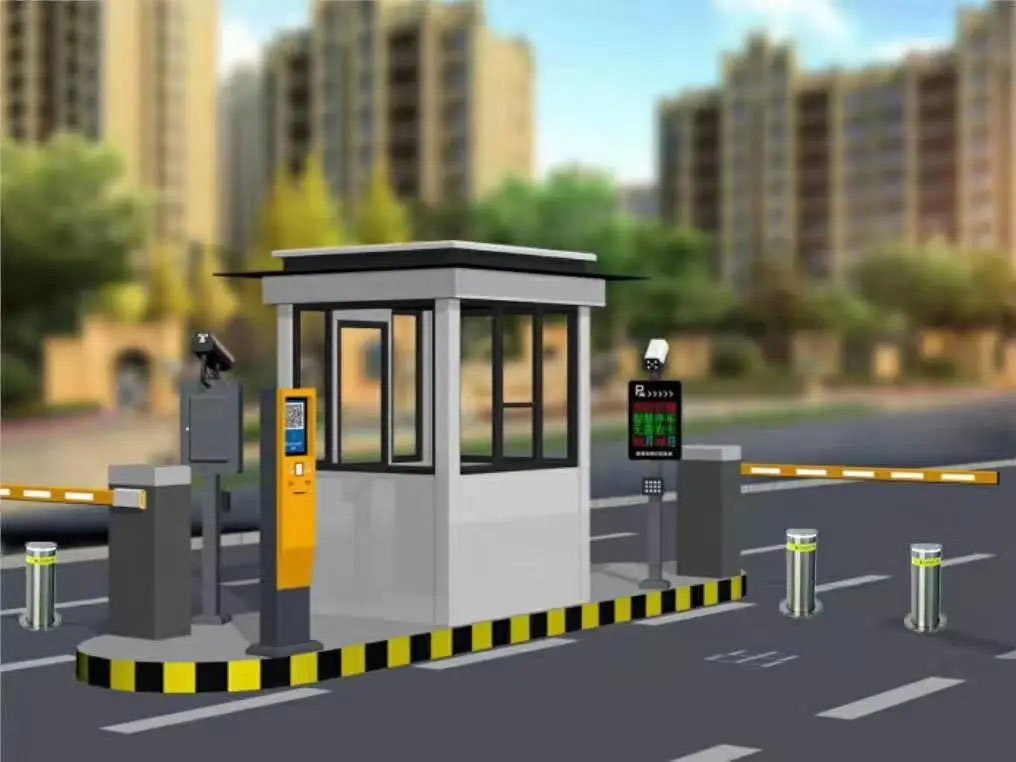

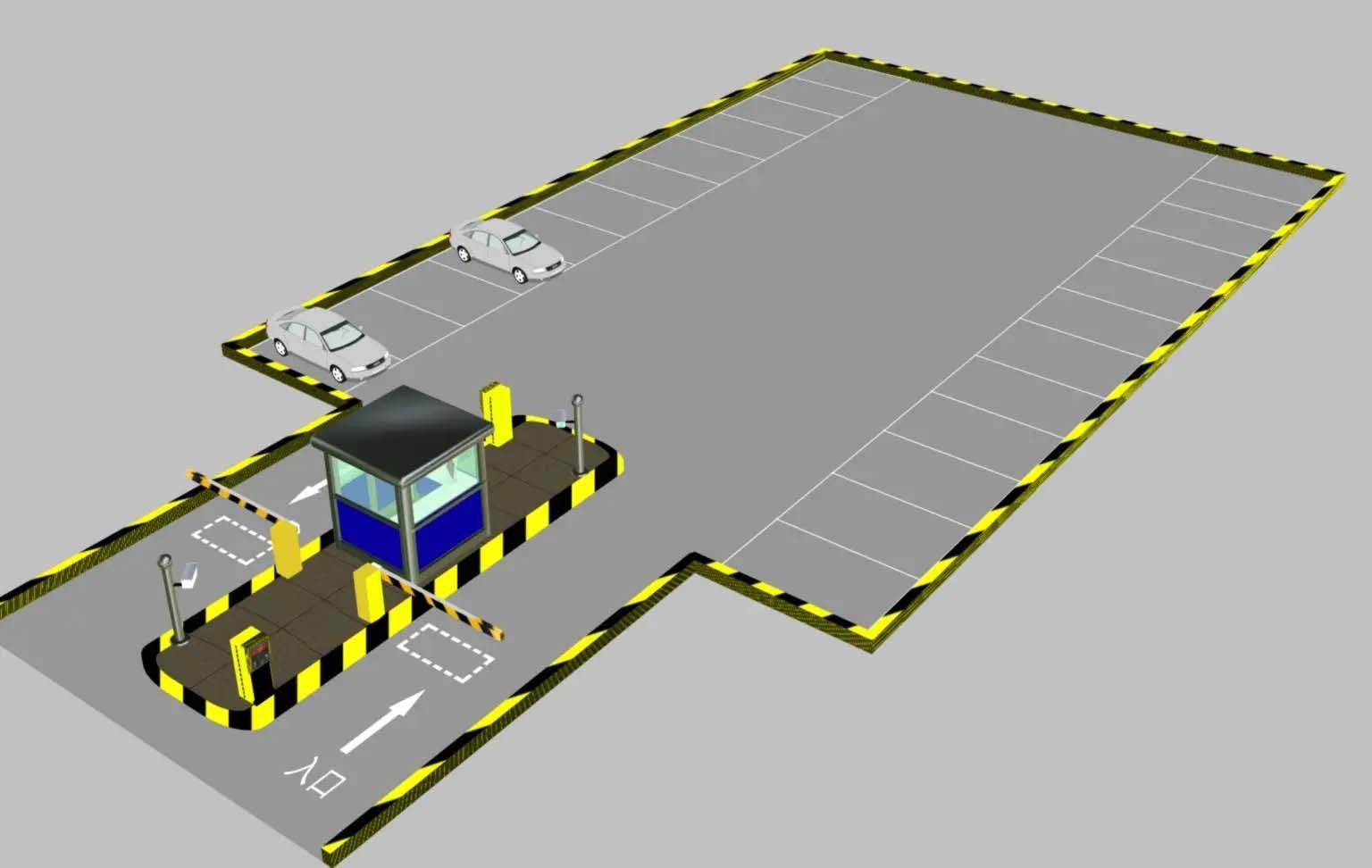

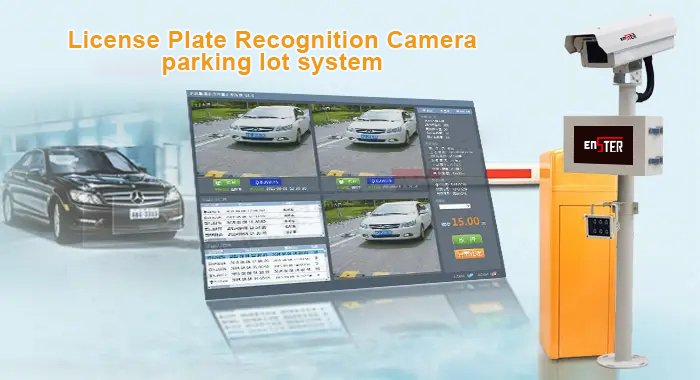

License plate recognition camera parking lot charging system

Parking platform Software*1

License plate recognition camera parking lot charging system software,

1.


2.

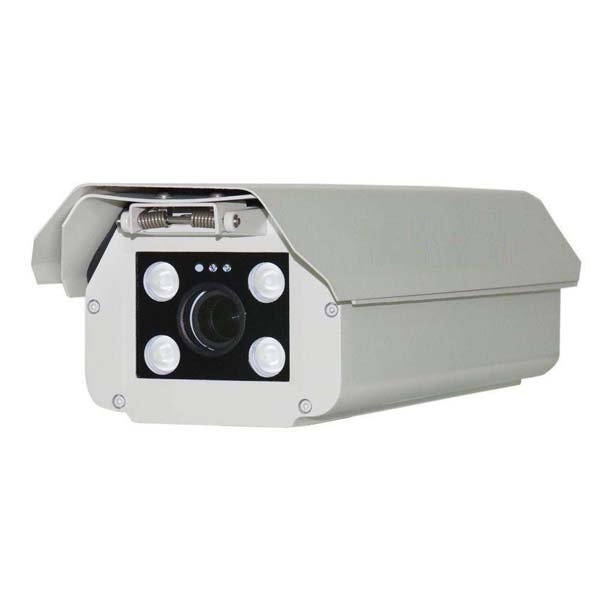

3. ANPR Camera(NST-IPC5112-ANPR)*2

4. 1.cpu:Hisilicon, specialized license plate recognition chip

5. 2.Sensor:1/3" CMOS Image Sensor  Minimum illumination:0.01Lux   Lens:6mm fixed focus lens

6. 3.Built-in light:4 high-power LED white lights

7. 4.Plate recognition accuracy:≥97%  Plate types:Overseas licence plate

8. 5.Triggering mode:Video trigger, coil trigger

9. 6.Image output:1080P(1920x1080),960P(1280x960),720P(1280x720),D1(704x576),CIF(352x288)

10. 7.Picture output:2 mega-pixel JPEG

11. 8.Video compression format::H.264 High Profile , Main Profile, Baseline , MJPEG

12. 9.Network interface:10/100,RJ45

13. 10.IO:2 input & 2 output 3.5mm connecting terminals

14. 11.Serial interface:2 x RS485

15. 12.Audio interface:1 input & 1 output

16. 13.SD card:Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G

17. 14.Power supply:AC220V   Power consumption:≤7.5W  Working temperature:-25℃~+70℃

18. 15.Protection grade:IP65

19. 16.Size(mm):452(L)*148(W)*120(H)  Weight:2.7kg

Fill-in Light*2

1.light source 12 wafer white LED

2.Lighting distance 10 Meters

3.Color temperature 6000-6500K

4.Turn on illuminance 10Lux

5.power waste 12W

6.Waterproof grade：IP65

LED Display*2

1.working temperature:-30℃~ 80℃

2.Voltage AC90~264V

3.Display size 1280*800

4.Rated power 36W

5.Display brightness 10000cd/m2

Column*2

1.height 1.2m

2.diameter 8cm

3.thickness 1.5mm

4.material:iron

5.color:white or black
