Product Description

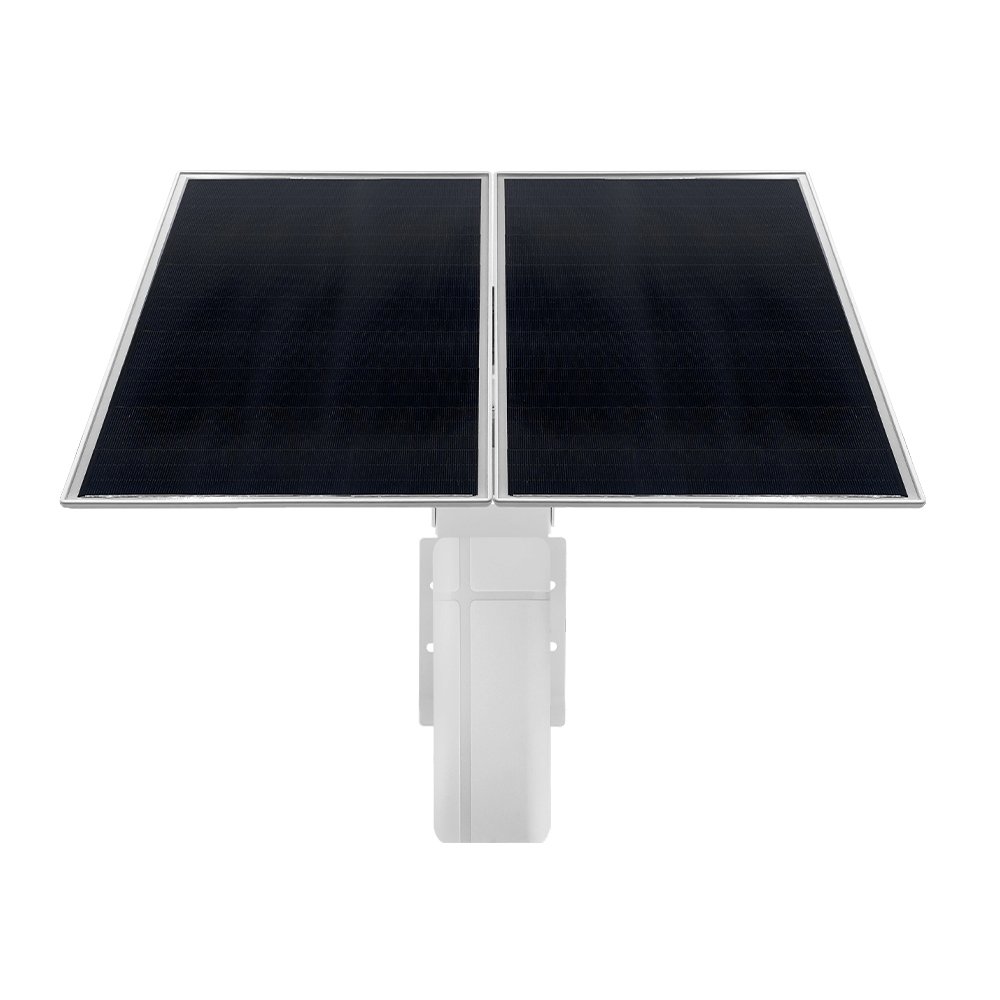

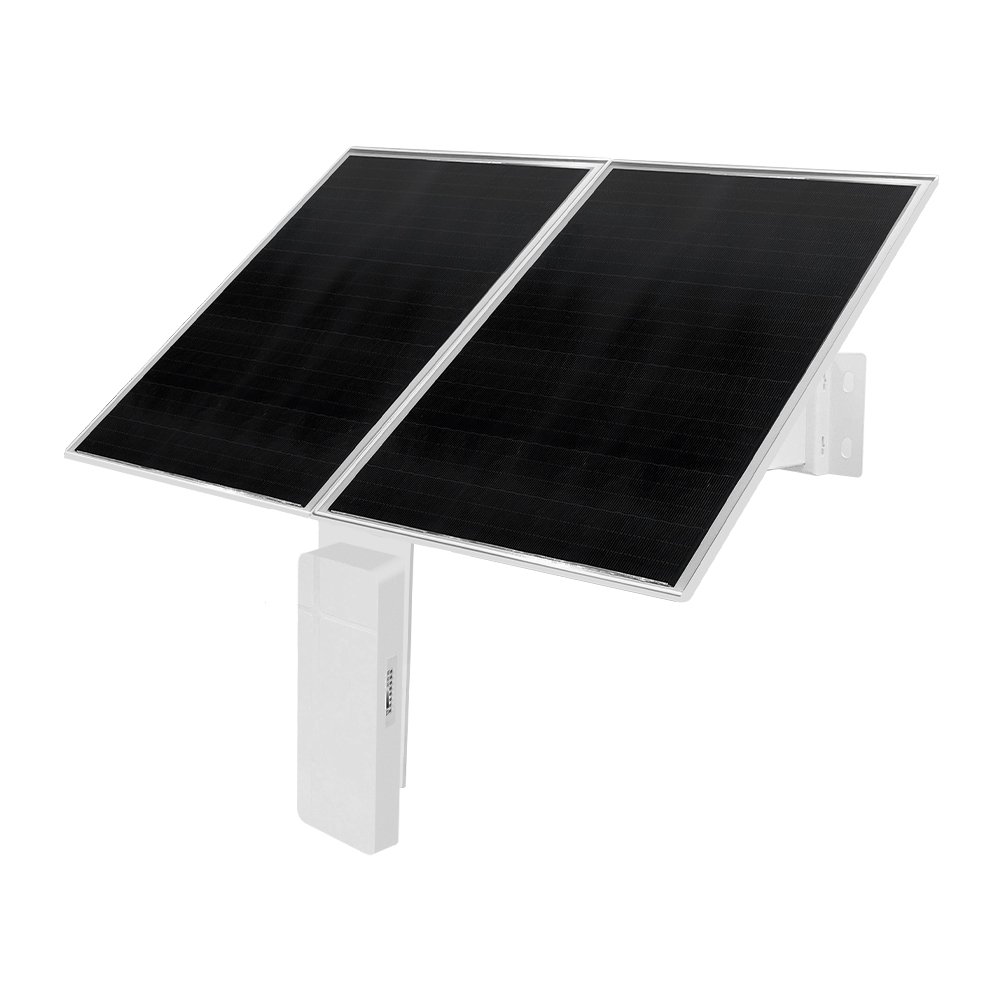

30W Solar Panel Power and 20AH Lithium Battery 1000-3000 Meters Wireless Bridge CPE
18V 30W Monocrystal Solar Energy Panel*1
2.4Ghz Wireless Bridge CPE * 1 (option 2pcs)
DC 12V /20AH Lithium Battery * 1
MPPT Solar Controller *1
Metal Wall Mount Bracket * 1
Solar Panel Specification
Model No. | NST-SPM30W |
Cell Material | High Efficiency Monocrystalline |
| Maximum Power(Pmax) | 30W |
| Maximum Power Voltage(Vmp) | 18V |
| Maximum Power Current(lmp) | 1.67A |
| Open Circuit Voltage(Voc) | 21.9V |
| Short Circuit Current(lsc) | 1.77A |
| Conversion efficiency | 19% |
| Power Tolerance | ±3% |
| Maximum System Voltage | 1000VDC |
| Frame | PC Complex Material |
| Temperature Range | -40℃to +80℃ |
| Dimensions(mm) | 550*350*18mm |
