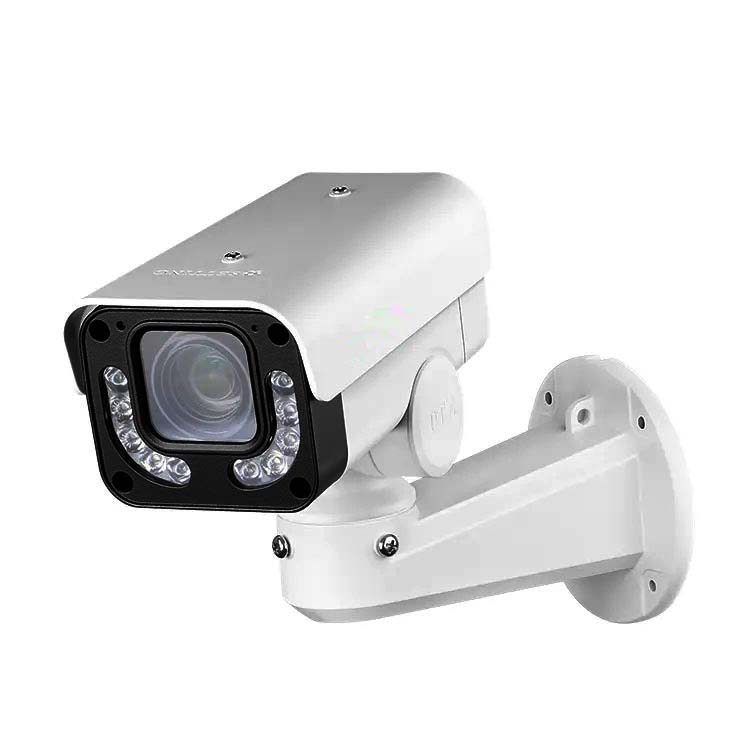

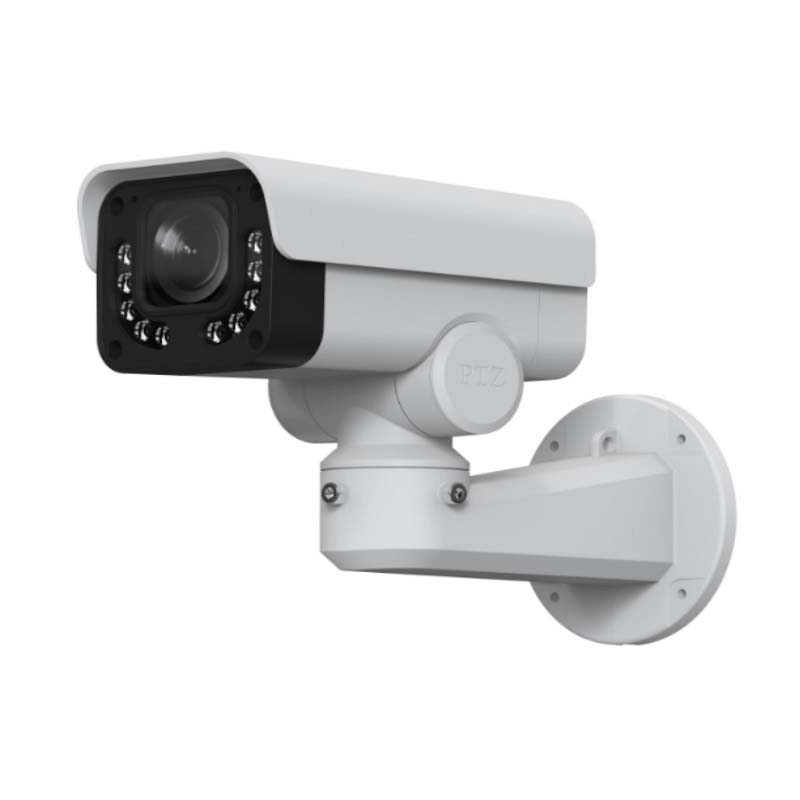

4K 8MP 20X Zoom Two way Audio SD Card Preset Auto Patrol CCTV Security IP Camera Manufacturer

100M IR Distance , Smart Dual Light(4Far+4Near+2White)

Powerful 20x optical zoom Support ONVIF

Video Analysis Light-Adjustment Technology

IP 66 all-environments protection

POE/WIFI/4G   Optional

Image Sensor 1/2.8" Progressive Scan CMOS IMX335

Resolution 5MP(2592x1944)

Mini Illumination 0.05 Lux (Colour) (F1.6,AGC ON), 0.01 Lux (B/W) (F1.6,AGC ON)

Lens f=4.9~98 mm

IRIS F1.6~F22

Angle of View 56°(wide) ~ 3.86°(tele)

Min Object Distance 10mm~1500mm

Optical Zoom 20x

Electronic Shutter 1/25~1/30,000s

Day/Night ICR (Auto/color/black)

Focus Auto/Manual

AGC Auto/Manual

BLC Auto/Manual

White balance Auto/Manual

SNR >52dB

WDR Support

Mirror Image Level, Tilt, Centre

Noise Reduction 3D

Solution Sigmastar SSC377D

Video Coding H.264/H.265

Dual-stream Support

Image Resolution "Main stream：25FPS@2592×1944，30FPS@(2560×1440,2304×1296，1920×1080，1280×720)

Sub stream：：720×480,D1,VGA,640×360"

Audio Coding G.711/G.711A/AAC

ONVIF Protocol Support

NETWORK PROTOCAOL TCP/IP、HTTP、DHCP、DNS、RTP、RTSP、NTP、UPnP

Port 1channel network port，1channel power supply input

IR Distance 100m,  Support Smart Dual Light(4Far + 4Near + 2White)

Pan  Range 200°

Tile Range -15°~45°

Manual Speed Horizontal: 0°/s - 20°/s,Vertical: 0°/s - 10°/s

Preset Speed Pan: 20°/s，Tile: 10°/s

Preset 256

Auto Cruising 1 groups（32 Preset/group）

Auto Scan 1 groups（setup left and right boundary）

Pattern Scanning 1 groups

Bracket Wall mount

Power Supply DC12V±10%

Power consumption ≤15W

Working Temp -35℃~+60℃

Working Humidity ≤95%

Protection Level IP66

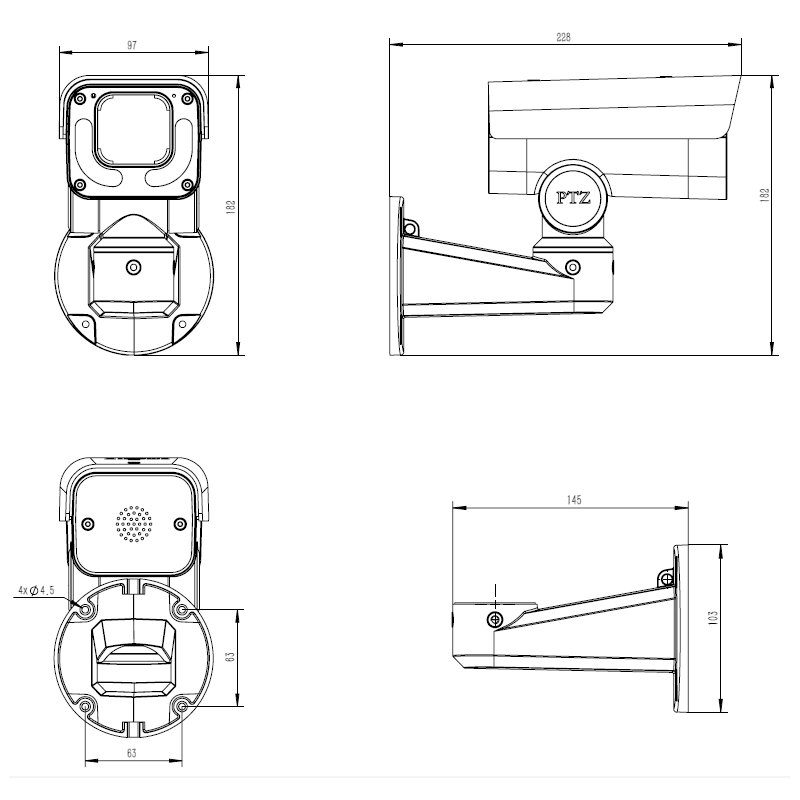

Package Size 265*220*125mm

Weight 1.35kg
