Product Description
2. Embedded intelligent algorithms for best viewing license plate day and night.
3. HLC(highlight compression) function, auto shift from daytime setting mode to night setting mode. Good anti-headlights night effect.
4. WDR adjust
5. 1-2 lanes surveillance.
6. Shutter speed adjustable:4 traffic modes selectable: 30KM/H, 60KM/H, 90KM/H,120KM/H,standard mode

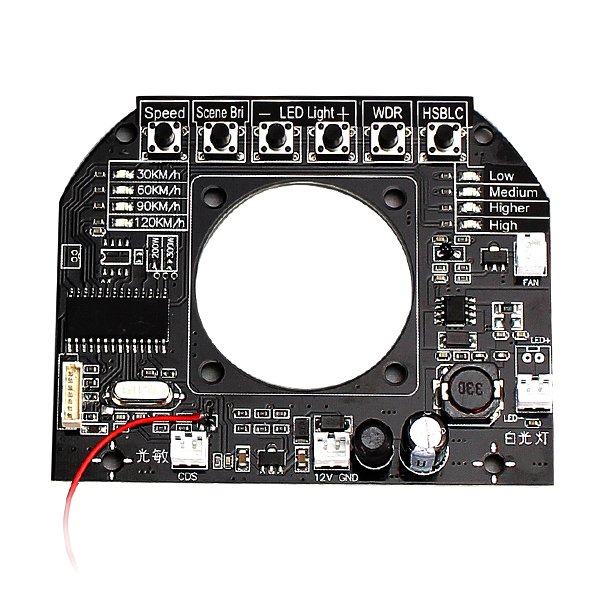

8. Easy setting: no need professionals, no need client software. Manual setting all the function on control board inside camera.
10.LED display SPEED/HLC value.

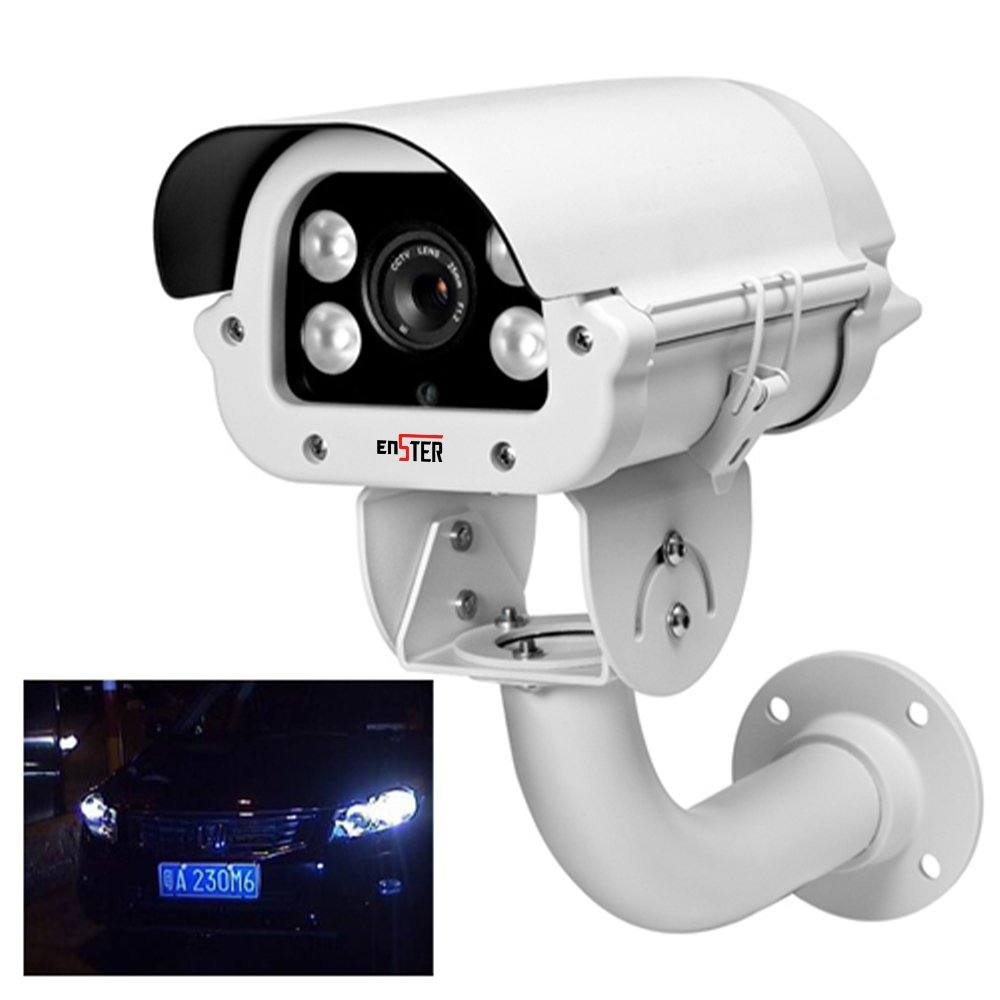

11. 4 PCS white bright lights.Color image at night. Night vision distance <20 M. Luminance add+ / decrease-, adjustable no matter in daytime or at night. Auto shift from daytime setting mode to night setting mode.

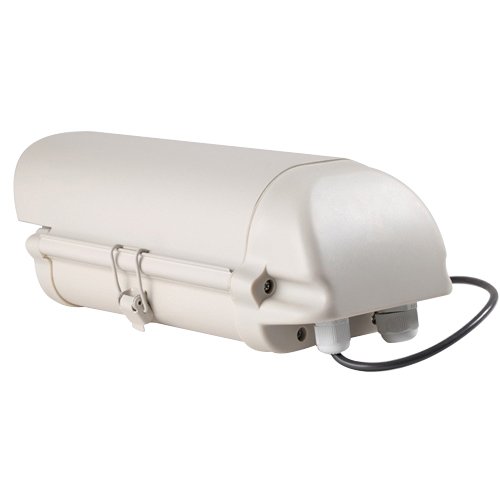

12. IP66, waterproof. . High quality double shield housing.Heater, FAN Option
13. double front glasses to avoid light halo and spot when LED is ON.
14.IR illuminator option, black & white image at night.

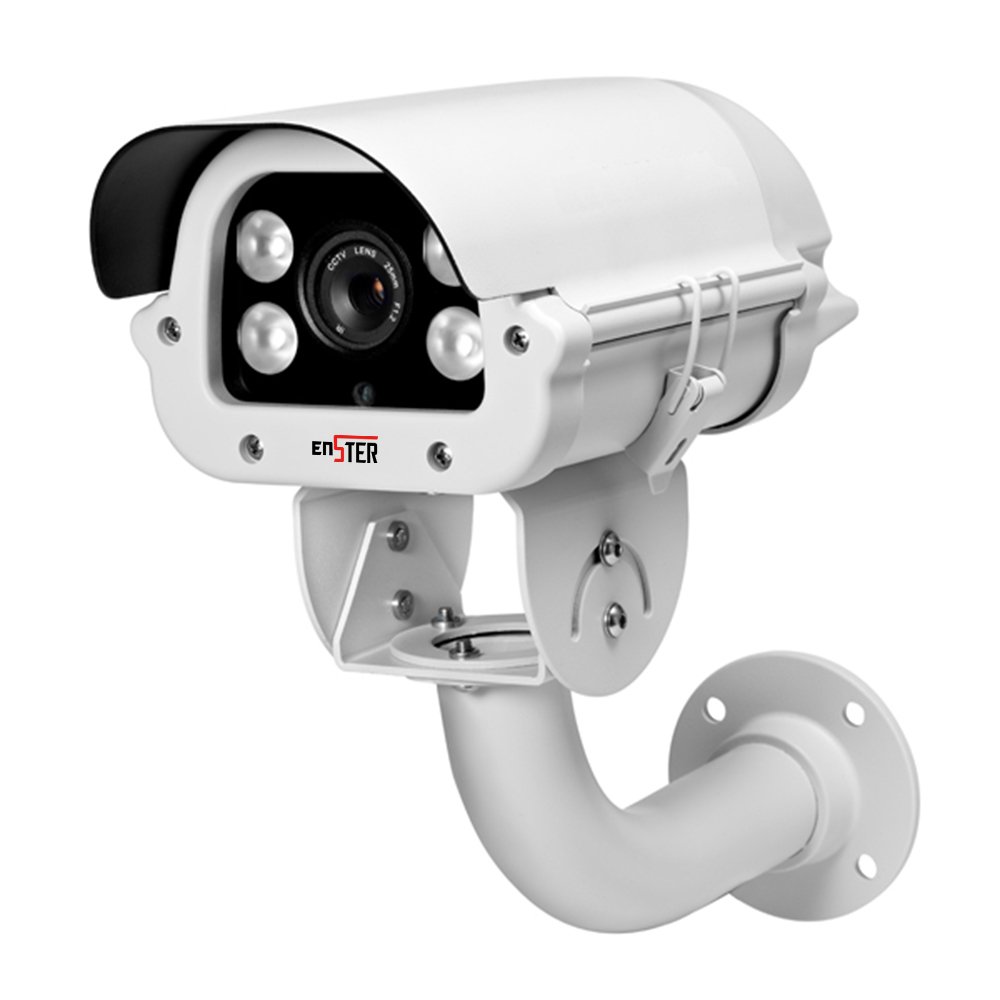

Model No. | NST-ATC6092NP-VF0622 |
Camera Type | 4 IN 1 (AHD/TVI/CVI/Analog)Camera |
| Effective Pixels | 2.0 Mega Pixels |
| Image Sensor | 1/2.8" SONY IMX290 CMOS Sensor,OSD,ICR |
| DSP | Nextchip 2441H |
| Min. Illumination | Color 0.01Lux@F1.2 |
B/W 0.001 Lux@F1.2 | |
| On Screen Display | Yes |
| OSD Function | Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone |
| IR Cut Filter | IR LED synchronous switching double filter |

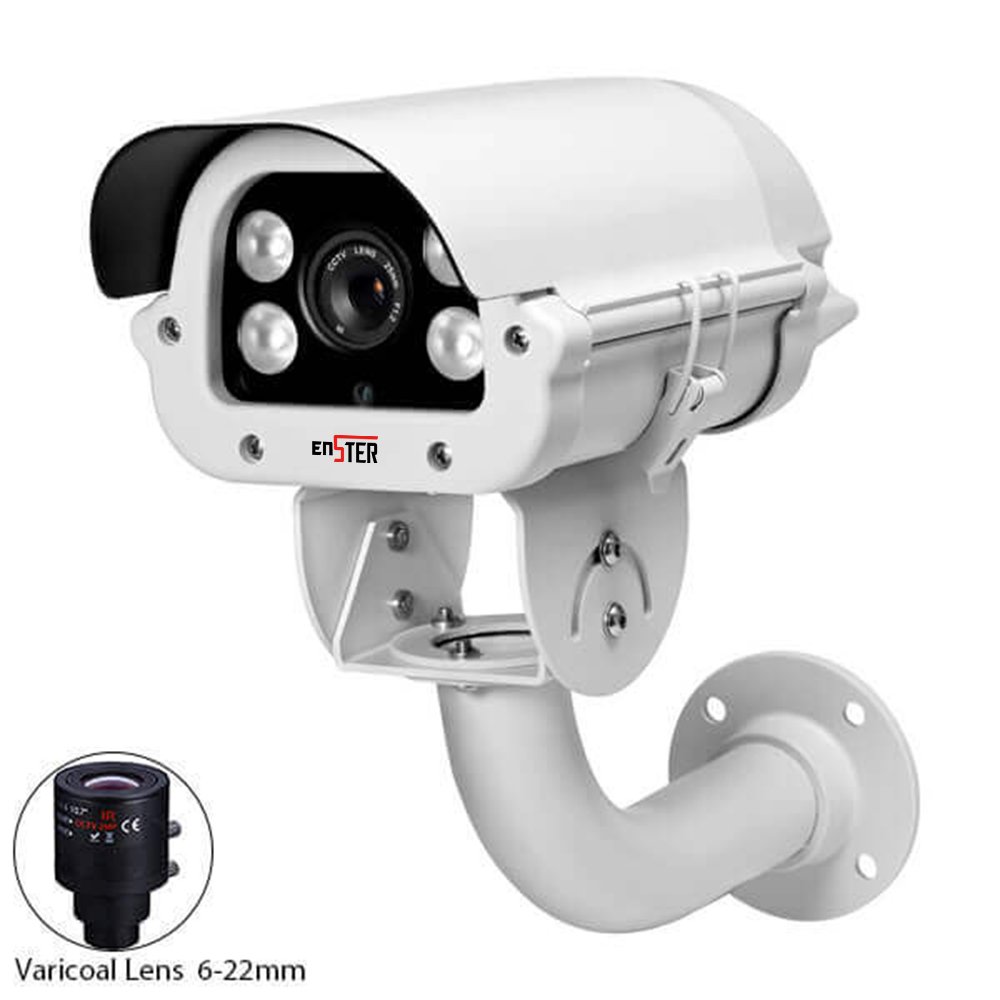

| Lens Mount | Varicoal Lens 6-22mm |
| Infrared Luminary | 4pcs Array White LED |
| Infrared Wavelength | / |
| Illuminate Distance | 40 M |
| Waterproof Criterion | IP66 |
| I/O Connector | 1*DC Power Connector ,1* BNC Video Connector |
| Supplied Voltage | DC12V |
| Power Consumption | LED On: 600mA max.,LED Off: Less than 200mA |
| Working Enviroment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) |
| Weight | 2.5 kg |
