Product Description

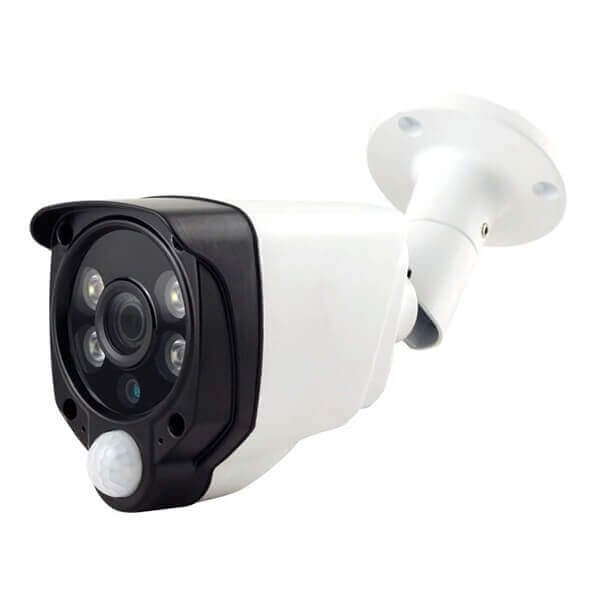

PIR Motion Detection and Dual Light System Smart Alarm CCTV Camera
- MOTION SENSOR ALARM SECURITY CAMERA SYSTEM - Based on motion detection alarm.Dual sensor technology detect object, by requiring both heat and motion be detected simultaneously reduces false alarms by up to 90%
- AROUND-THE-CLOCK AND COLORFUL IMAGE/VIDEO EVEN AT NIGHT –2 PCS Array LEDs and 2 PCS Array White light clear voision at low light condition,show colorful image/video even at night When the lights are on-Never miss anything.
- OUTDOOR/INDOOR HD WEATHERPROOF CAMERA –IP66 Weatherproof:Dustproof and waterproof, suitable for both indoor and outdoor use, high definition 1080P wired HD analogue security camera.

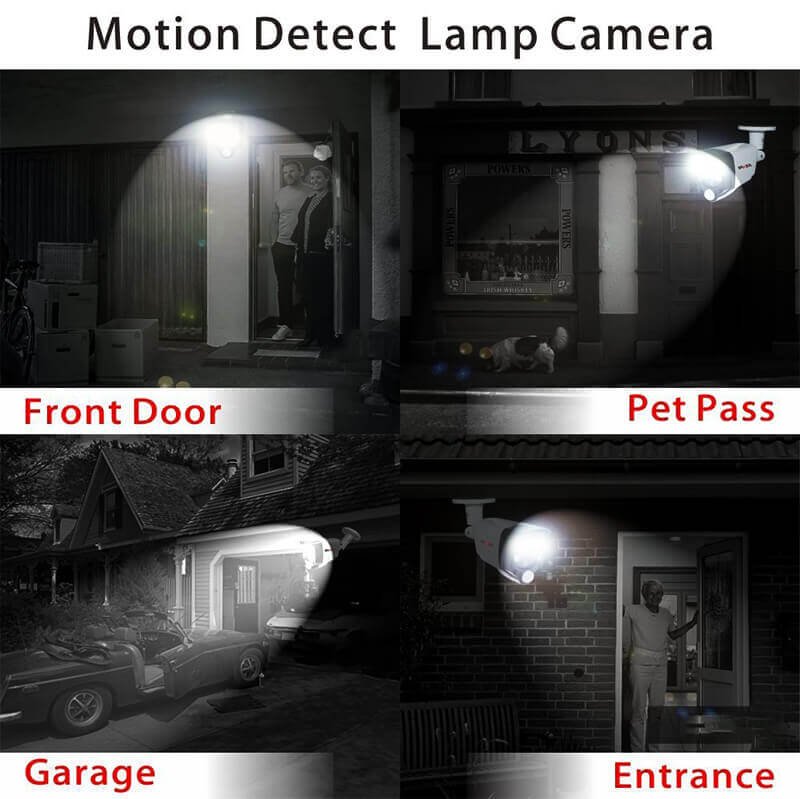

- MOTION SENSOR LAMP – Peace of Mind, take it as energy saving lamp, once people move, as it switch on only people move, otherwise switch to 100ft white/black night visi

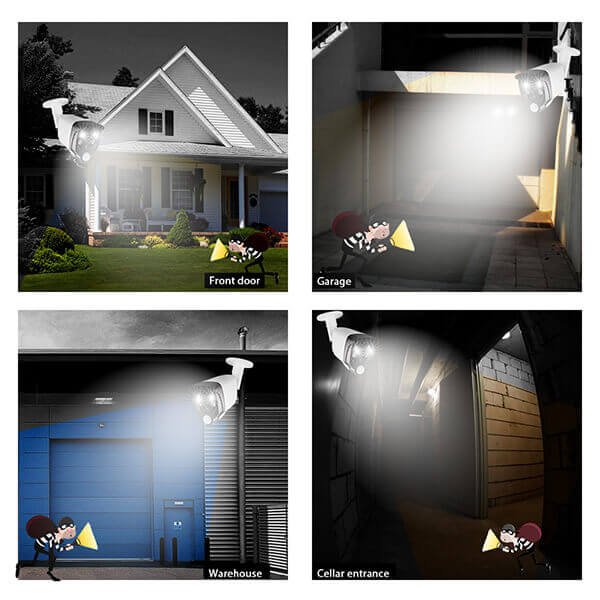

Effectively deter theft, Never miss anything.
Capture Colorful Image/Video even at Night.
Heat motion detect alarm technology and dual light technology, perform full colorful image/video even at night time recording. It will be back to the normal recording video(black/white) after 8 seconds when people left or no people moving around.
Specifications:

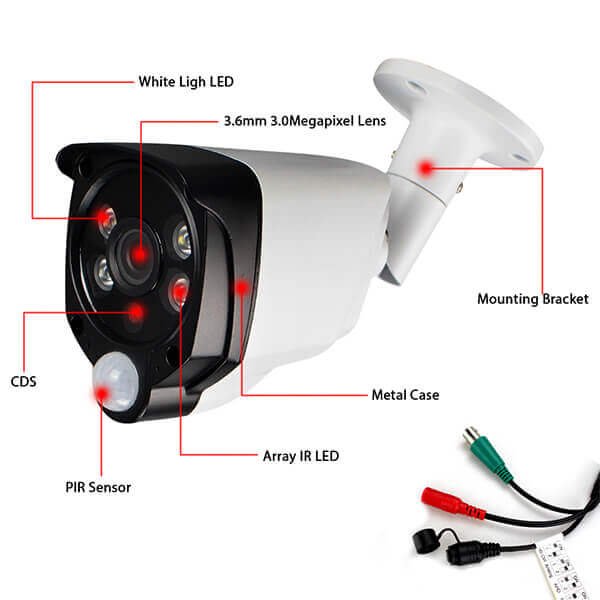

1. PIR Outdoor CCTV Camera
2. Image Sensor: 1080P 2.0MP High Definition Image Sensor
3. Infrared: 2PCS White Light+2PCS ARRAY IR LED
4. IR Range: 30 Meter IR Distance
5. Lens: 3.6mm 3.0Megapixel Lens
6. Built in 3-Axis Bracket
7. PIR Sensitivity Distance: 8~10Meter
8. Viewing Angle:100 Degree Wide Angle Viewing;100ft. of Night Vision
9. Reduces false alerts by up to 90%
|
Model No. |
NST-ATC6644-PIR |
NST-ATC6642-PIR |
NST-ATC66413-PIR |
|
Camera Type |
HD 4 In 1(AHD/TVI/CVI/Analog )Camera |
||
| Effective Pixels | 4.0 Mega Pixels | 2.0 Mega Pixels | 1.3 Mega Pixels |
| Image Sensor | 1/3" OV CMOS Sensor,OSD,ICR | 1/2.8" SONY CMOS Sensor,OSD,ICR | 1/3" Aptina CMOS Sensor,UTC,ICR |
| DSP | Nextchip 2475H | Nextchip 2441H | Nextchip 2431H |
| Min. Illumination | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | Color 0.01Lux@F1.2 |
| B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | |
| On Screen Display | Yes | Yes | Yes |
| OSD Function |
Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone
|
||
| IR Cut Filter |
IR LED synchronous switching double filter
|
||
| Lens Mount |
Board Lens 3.6mm
|
||
| Infrared Luminary |
2 pieces IR-LEDs/2 pieces White LEDs
|
||
| Infrared Wavelength |
850 nm
|
||
| Illuminate Distance |
30 M
|
||
| Waterproof Criterion |
IP66
|
||
| I/O Connector |

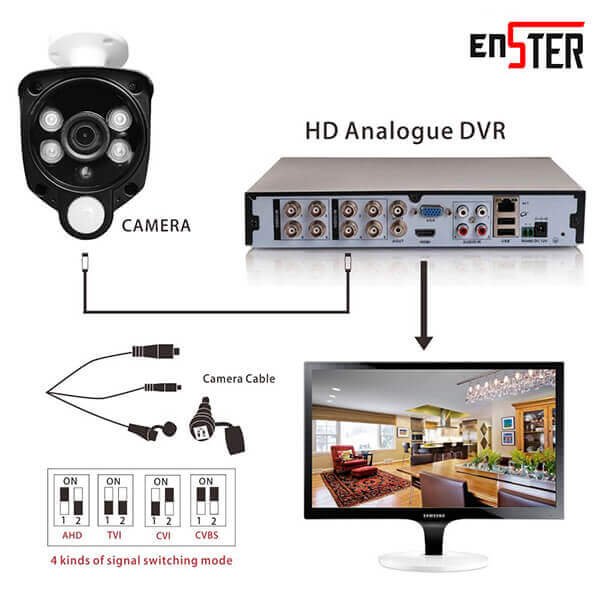

1*DC Power Connector ,1* BNC Video Connector,1*DIP Switch
|
||
| Supplied Voltage |
DC12V
|
||
| Power Consumption |
IR On: 600mA max., IR Off: Less than 200mA
|
||
| Working Enviroment |
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
|
||
| Weight |
0.7kg
|
||
