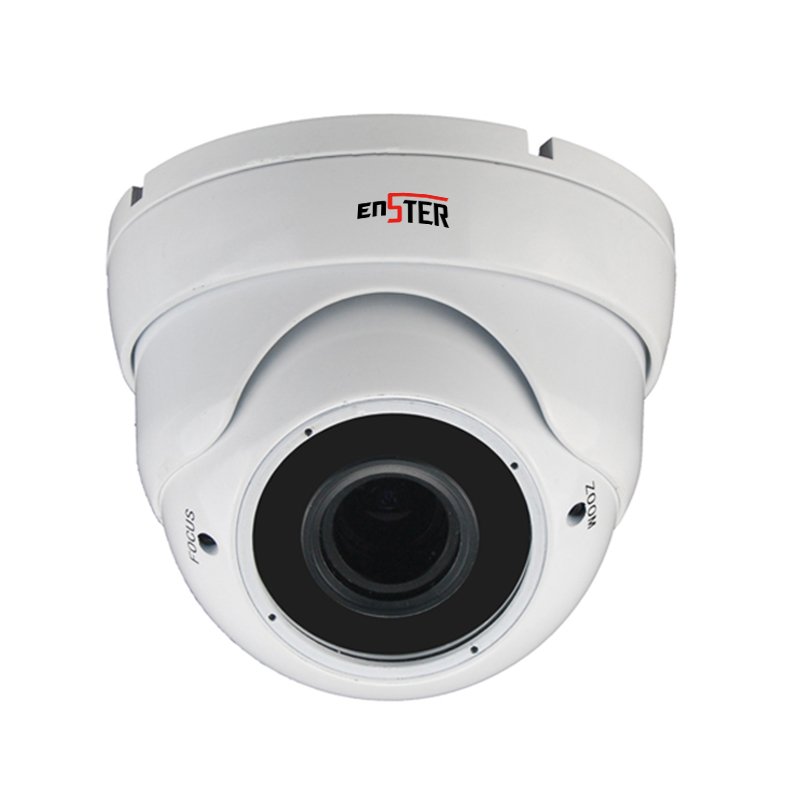

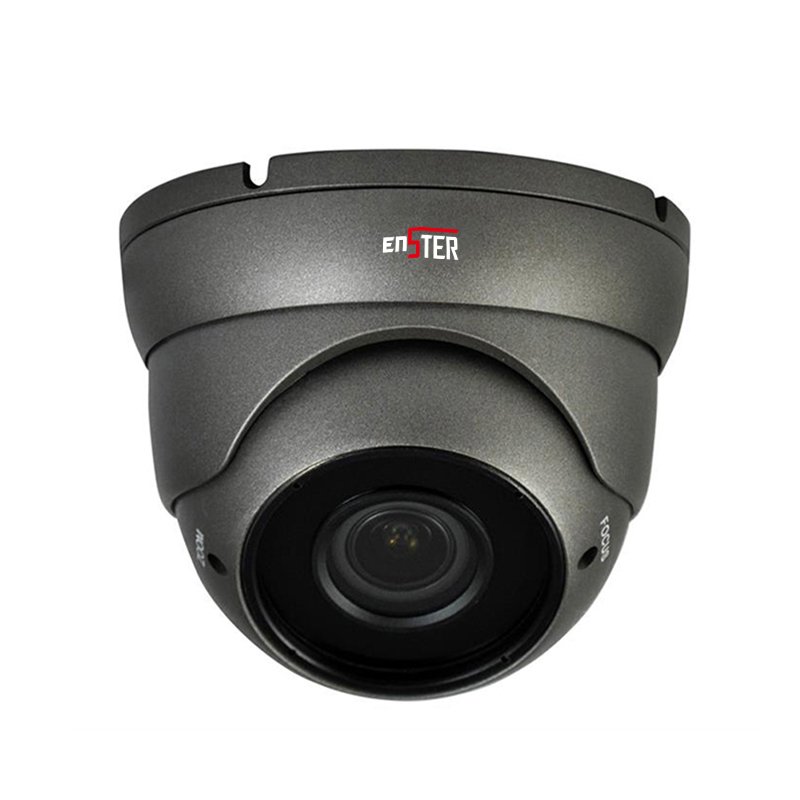

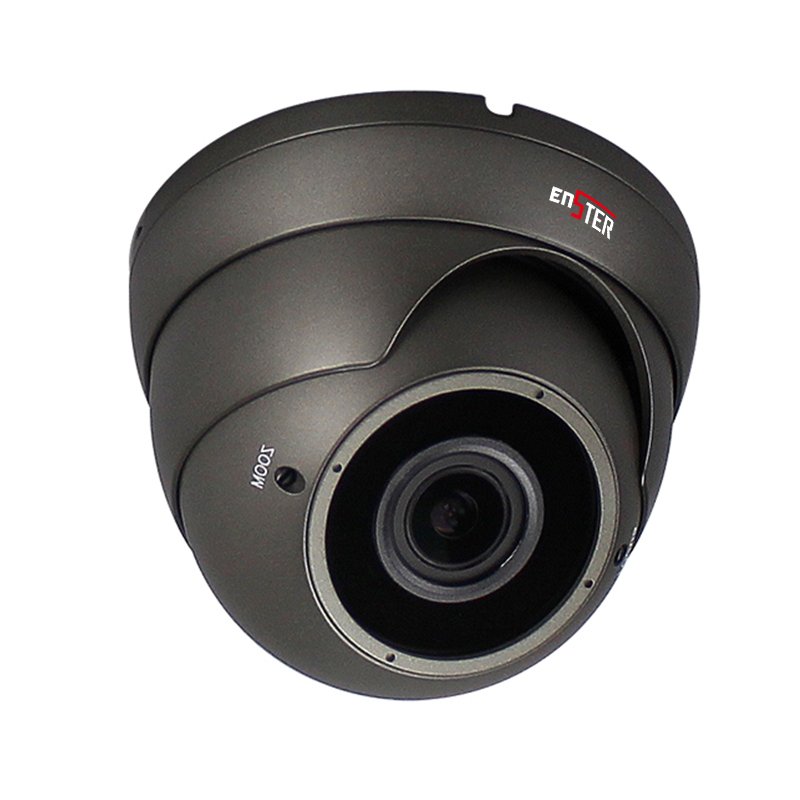

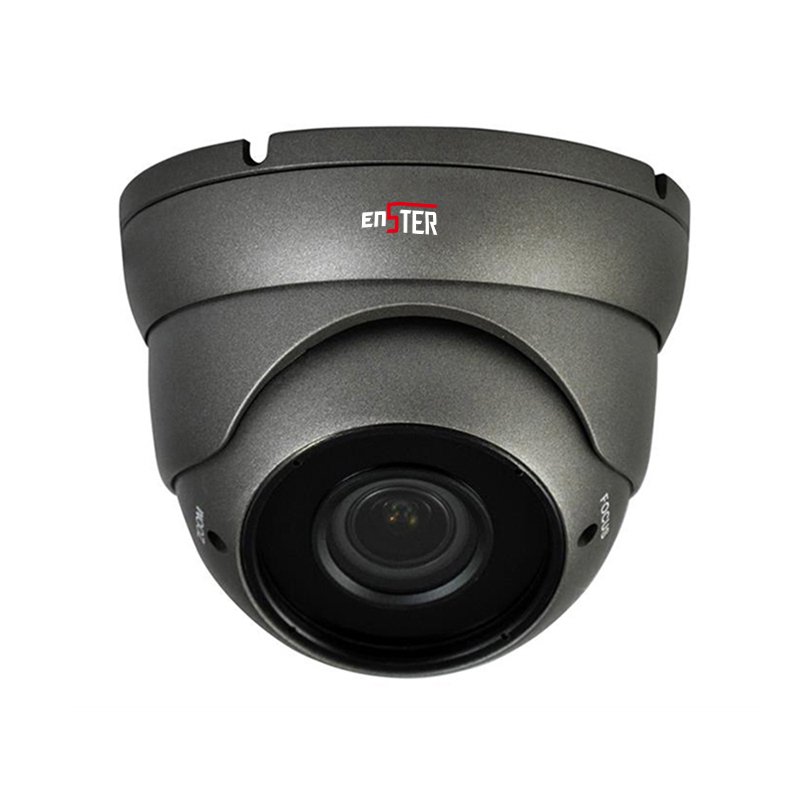

Product Description
Model No. | NST-ATC3292-AL | NST-ATC3292-L |
| Camera Type | Starlight AHD TVI CVI 4 IN 1 Camera | |
| Effective Pixels | 2.0 Mega Pixels 1080P(25/30fps) | |
| Image Sensor | 1/2.8" SONY Exmor CMOS Sensor (IMX291) | |
| DSP | Nextchip 2441H | |
| Min. Illumination | Color 0.001Lux@F1.2 | |
B/W 0.001 Lux@F1.2 | ||
| Signal System | AHD/TVI/CVI/CVBS or PAL/NTSC | |
| On Screen Display | Yes, Cable Control/UTC | |
| OSD Function | 1080P 30/25FPS Sens-up x2 x4 x8 Digital Zoom 16x Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone | |
| IR Cut Filter | N/A | |
| Lens Mount | 4X Optical Zoom AutoFocus Lens 2.8-12mm | Manual Varifocal Lens 2.8-12mm |
| Infrared Luminary | N/A | |
| Infrared Wavelength | N/A | |
| Illuminate Distance | N/A | |
| Waterproof Criterion | IP65 | |
| I/O Connector | 1*DC Power Connector ,1* BNC Video Connector | |
| Supplied Voltage | DC12V | |
| Power Consumption | Less than 200mA | |
| Working Enviroment | -10¡ãC~+60¡ãC, 10%~90% ( Built in Heater being optional added for enviroment lower than -20¡ã ) | |
| Weight | 1.0KG | |
