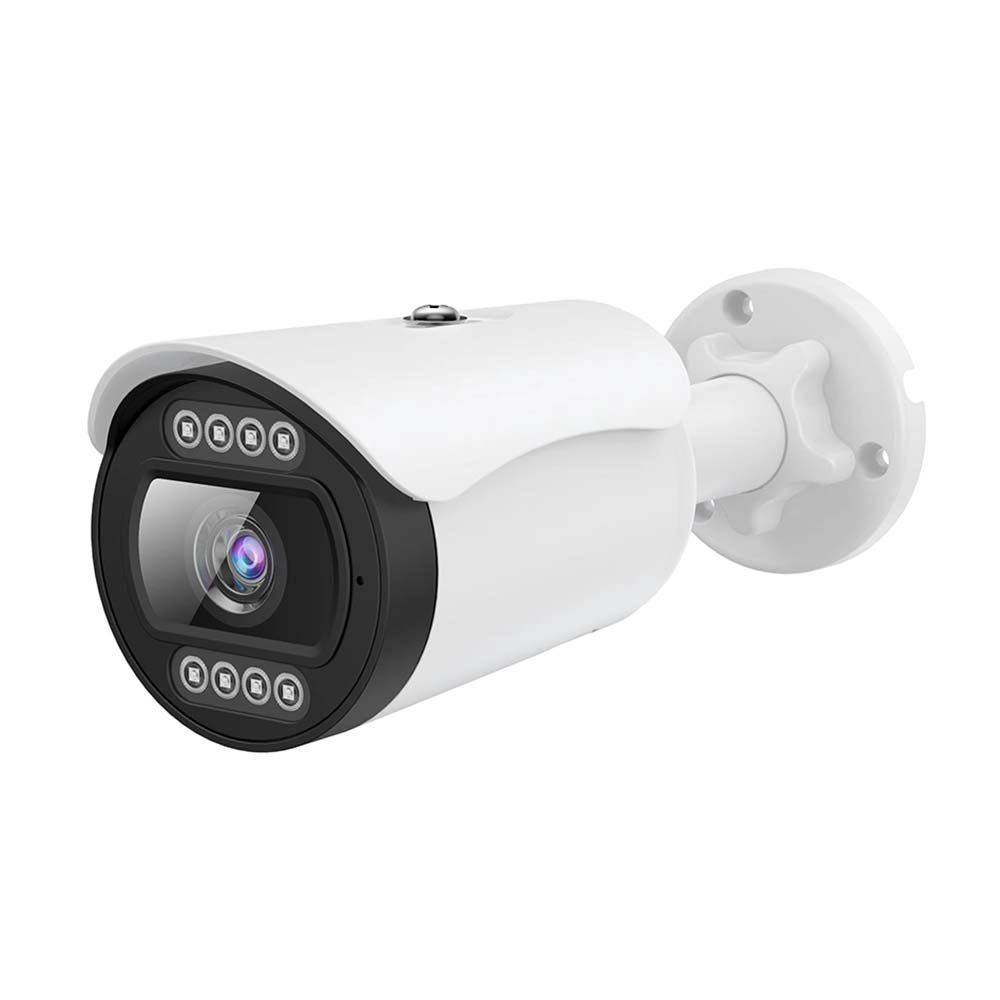

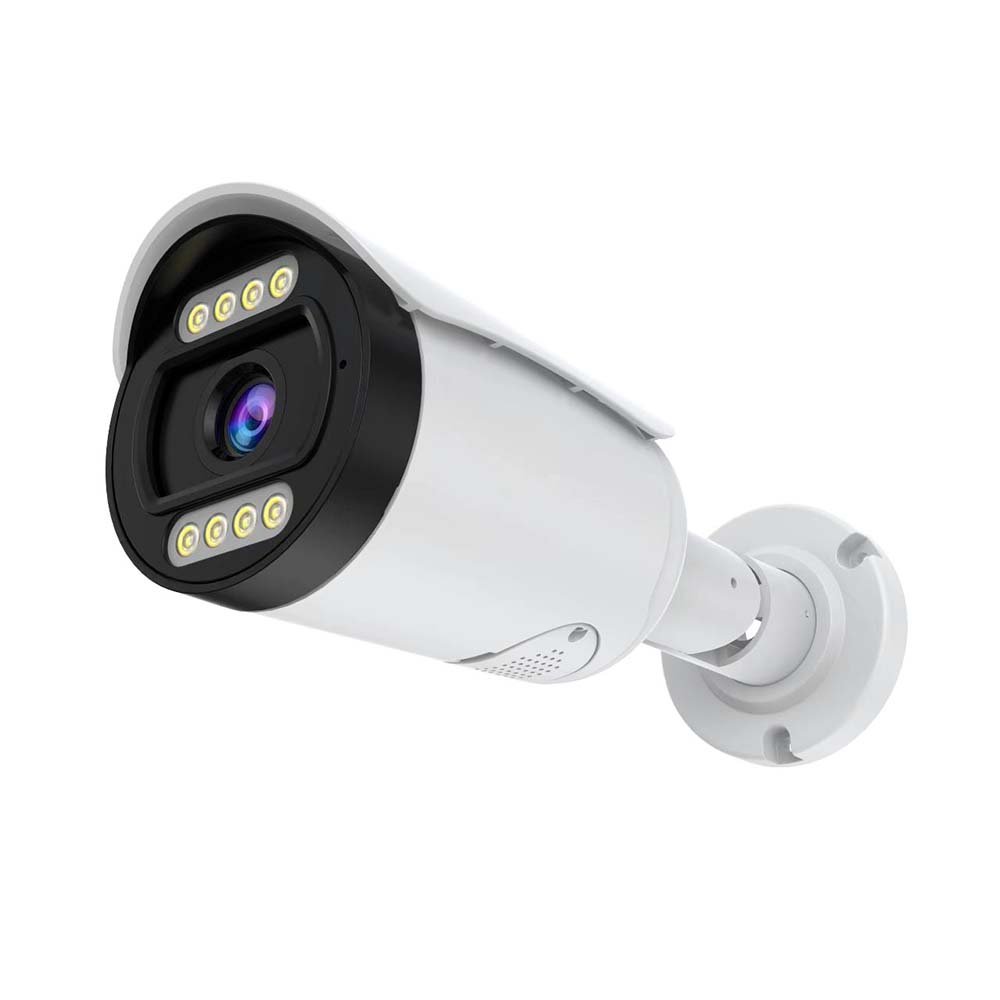

Triple Stream H265 h264 Motorized Lens Sony Sensor PoE FTP Server 5MP 8MP IP Camera

Triple Stream H265 h264 Motorized Lens Sony Sensor PoE FTP Server 5MP 8MP IP Camera

Triple Stream H265 h264 Motorized Lens Sony Sensor PoE FTP Server 5MP 8MP IP Camera Main stream:3840*2160@25/30fpsSub stream:1280*720@25fps,704*576@25fpsThird stream: D1@25/30fps,CIF@25/30fps

NST-IPM5218-TS

SEND INQUIRY NOW

NST-IPM5218-TS

1/2.7” 8MP progressive scan CMOS

3840×2160(8MP)@20/30fps

Smart H.265+ & H.264+ / 2 streams

Smart Dual Illumination - IR mode, white light turns on motion detection/

Human detection /vehicle detection Alert

8 IR & 8 White Light LED up to 40 m

Two-Way Audio Built-in Microphone and Speaker

IP67/ 12VDC/PoE

Product Description

Model No.		NST-IPM5218P-TS	NST-IPM5218-TS	NST-IPM5215-TS
Camera Type		Triple Stream H265 5MP 8MP IP Camera
System		Embedded RTOS design
Camera	Effective Pixels	8.0 MegaPixels	8.0 Megapixels	5.0 MegaPixels
		Main stream:3840*2160@25/30fps	Main stream:3840*2160@20fps	Main stream:2592*1944@25/30fps
		Sub stream:1280720@25fps, 704576@25fps Third stream: D1@25/30fps,CIF@25/30fps	Sub stream:1280720@25fps, 704576@25fps Third stream: D1@25/30fps,CIF@25/30fps	Sub stream:1280720@25fps, 704576@25fps Third stream: D1@25/30fps,CIF@25/30fps
	Image Sensor	1/2.8" SONY IMX415 Cmos Sensor	1/2.8" SONY IMX415 Cmos Sensor	1/2.8" SONY IMX335 CMOS Sensor
	Soc Chipset	Sigmastar	Sigmastar	Sigmastar
	Min. Illumination	Color 0.01Lux/F1.2	Color 0.01Lux/F1.2	Color 0.01Lux/F1.2
		B/W 0.0001 Lux/F1.2	B/W 0.001 Lux/F1.2	B/W 0.01 Lux/F1.2
	Adjust Parameters	DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video	Compression	H.265/H.264 Main profile
	Stream	support dual stream,AVI format
	Bit Rate	support 0.1M ~8Mpbs bit rate adjustable
	Frame Rates	support 1~30fps adjustable
Audio	Input and output	Two Way Audio,Built in micphone and Speaker,Multiple warning sounds can be selected
	Compression	G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm	Types	Human detection /vehicle detection /Motion Detection, Video Blind , Video Loss
Network	WEB Browser	Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
	Smart Phone	mobile remote Monitoring (iPhone,Android,....)
	CMS Software	Uniform CMS Software(multiple devices management system)
	Cloud P2P	www.enster.com,MYEYE platform and other program,Offer SDK
	Network	10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
	ONVIF	Support (ONVIF 2.4)
	POE	Support(optional)
General	Language	20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Motorized Zoom Auto focus Lens 2.8-12mm
	Aux Luminary	8pcs IR Light+8pcs Warm Light LED,Warm light turns on motion detection/Human detection /vehicle detection
	Infrared Wavelength	850nm/580nm
	Illuminate Distance	40m
	Waterproof Criterion	IP 66
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Power Consumption	IR On: 600mA max., IR Off: Less than 200mA
	Working Environment	-20°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	0.9kg
