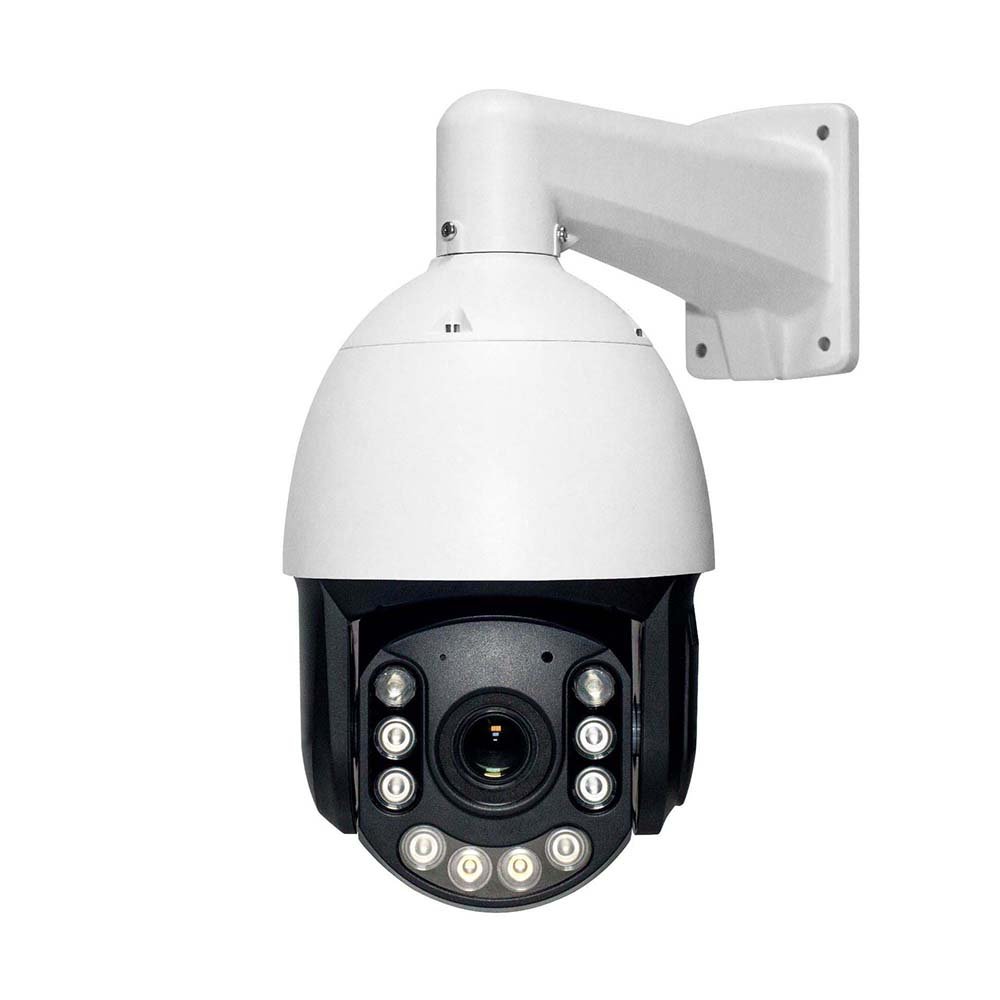

12MP Outdoor PTZ IP POE Security Camera IMX577 CMOS Sensor Auto Tracking Smart AI Human Vehicle Detection
1/2.3” 12MP SONY IMX577 CMOS
4000×3000(12MP)@25/30fps
Smart H.265+ & H.264+ / 2 streams
36X Optical Zoom Lens
10X Digital Zoom
Built-in Microphone,Support AAC
Smart Dual Illumination - IR mode, white light turns on motion detection/
Human detection /vehicle detection Alert
10 Pcs IR & White Light LED up to 150 m
IP66/ 12VDC/PoE
Camera
Image Sensor:1/2.3" IMX577 CMOS
Effective Pixels: 12 megapixels
Electronic Shutter:AUTO, 1/25s ~ 1/10000s
Min. Illumination:0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night:Auto/Color/(B/W)/Timing
WDR:Support WDR
White Balance: Auto/Manual
BLC /HLC:Support
DNR:2D/3D DNR
Other:Privacy Mask, Flip ,OSD overlay, video cover alarm
Smart Detection:Human & Vehicle Detection...........
Encode
Video Standard: H.265/H.265+/H.264
Video Resolution: MainStream:30fps@12MP(4000x3000)/8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.,Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates:512Kbps - 12Mbps, VBR/CBR
Audio Standard:G.711-u/G.711-a/AAC
Built-in Mic and Speaker:Yes
OSD Overlay:Title and Time overlay ,custom color adjustable
Illuminator
Leds: 10PCS IR / White LEDs (3000K)
Distance:150-200 M
Lens
Focal length:4.7-169.2mm F1.6 lens
Zoom:36X Optical Zoom ,10X Digital Zoom
Optional Function:PoE, Audio, SD Card Slot, Reset, etc.
PTZ
Pan/Tilt Range Pan:0° to 360° endless, Tilt: 0° to +90°,
Manual Control Speed:Pan: 100 °/s ,Tilt: 60 °/s
Preset Speed:Pan: 200 °/s,Tilt: 100°/s
Preset:100
Cruise:8 cruises lines,up to 30 presets
Power off memory:Yes
Network Services
Protocol: HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
P2P: Yes
Web: IE , Firefox (32bit esr), etc.
Media: CMS, Android, IOS
General
Network Port: 1-RJ45, 100Mbps, POE optional
Power Supply:12 VDC ± 10%
Power Consumption:< 20 W
Operating Temp.:-30℃-(+60)℃, 10%-90%RH
