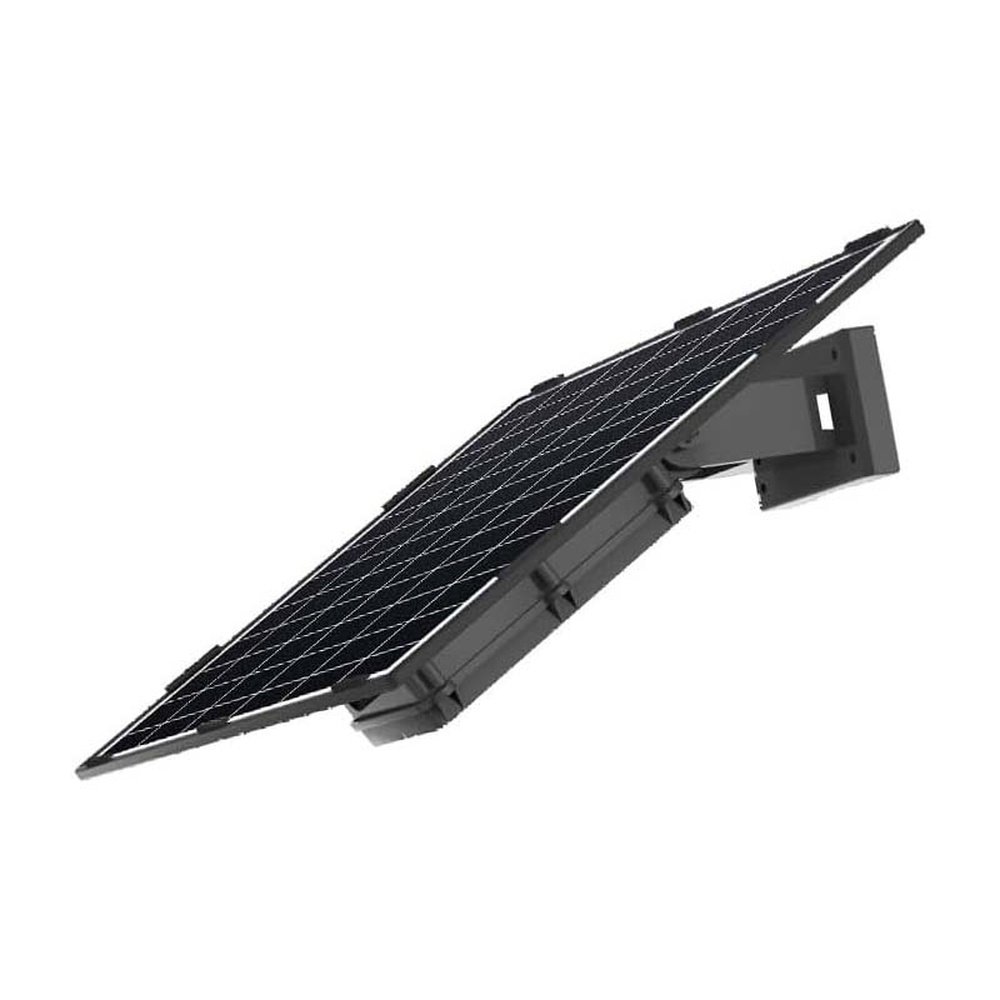

20W solar panel
24AH (88.8WH) ternary lithium battery (18650) pack
Integrated bracket, PV panel, battery compartment and charge/discharge circuit - easy installation
No internal wires, 0 transmission loss
No hardware switch; auto power-on when cable connected, power-off when disconnected
Low internal resistance components, extremely low temperature rise and loss at full power charging
LED indicator: flashes every 15s; 6 flashes = 60% battery. Solid light = charging, light off = not charging
5521 output cable: 1200mm
Product Description
Model No. | NST-SL2012 | |
Package | Package Dimensions (L × W × H mm) | 410 × 90 × 310 |
| Package Weight | 2.3KG | |
Solar Panel | Solar Panel Dimensions (L × W mm × Qty) | 380 × 270 × 1 |
| Solar Panel Power | 20W | |
Battery | Battery Type | Ternary Lithium Battery (18650) |
| Battery Pack Voltage | 3.7V | |
| Battery Capacity | 24AH (88.8WH) | |
| Battery Cell Config | 2AH × 12 cells | |
Charge & Discharge | Charging Current & Voltage | Max charging capacity: 5A, current limit: 3A, charging voltage: 9-15V |
| Discharging Current & Voltage | Max discharging capacity: 3A, current limit: 2A, discharging voltage: 9-12.6V | |
Output & Accessories | 5521 Output Cable (mm) | 1200 |
| Accessories | Aviation to DC output cable 1.2m, hex key 1pc, mounting clamp 1pc | |
Features | Key Features | No internal wires, 0 transmission loss No hardware switch; auto power-on when cable connected, power-off when disconnected. Low internal resistance components, extremely low temperature rise and loss at full power charging Integrated: bracket, PV panel, battery compartment, charge/discharge circuit - easy installation LED indicator: flashes every 15s; 6 flashes = 60% battery. Solid light = charging, light off = not charging |
