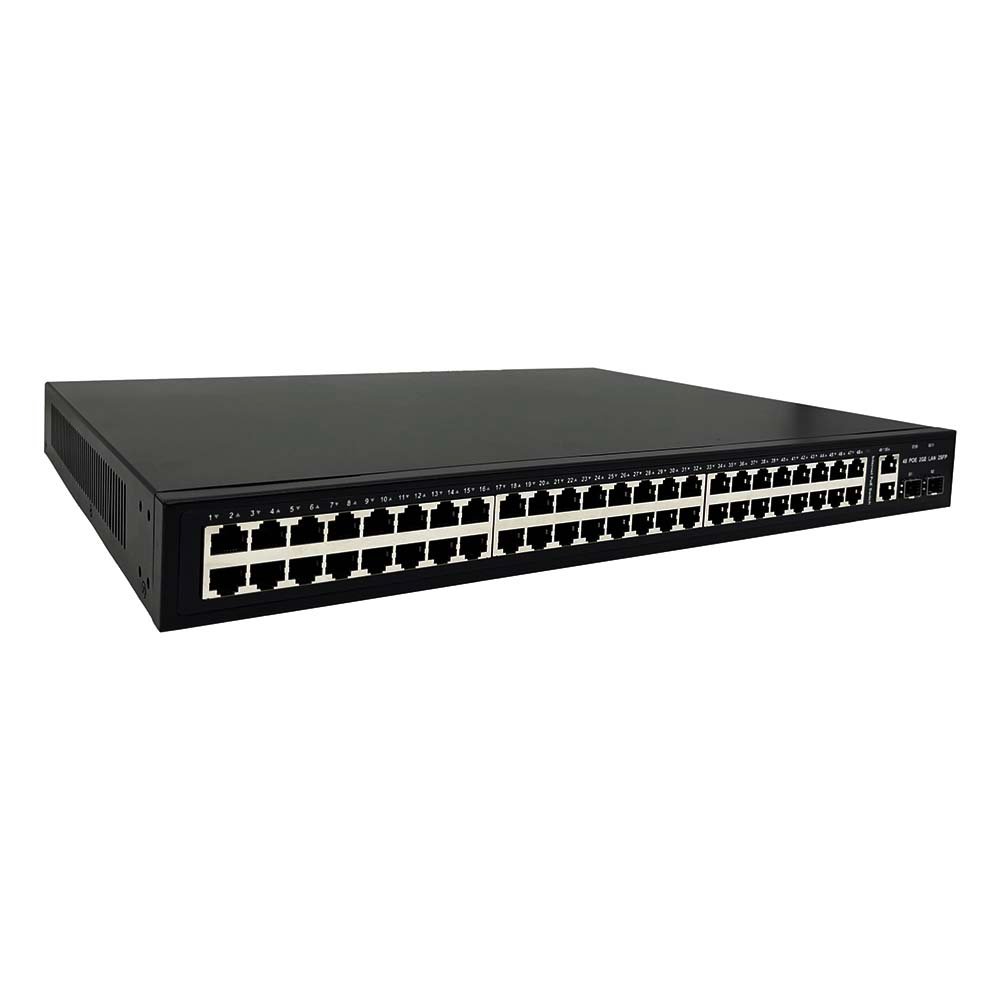

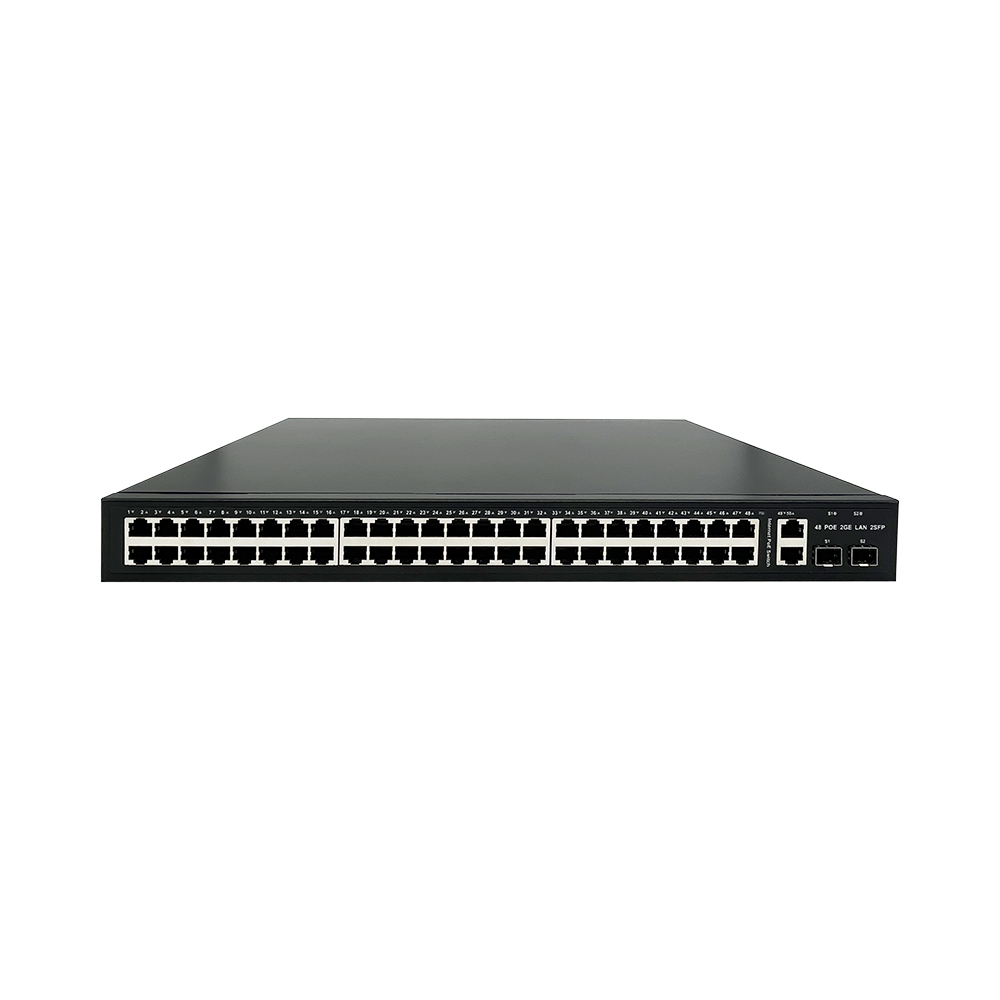

48 Port All 10/100/1000Mbit  Gigabit POE Switch

1024K-P48 is a full gigabit PoE switch with 48 gigabit adaptive RJ45 ports. Each rj45 interface supports mdi/mdix automatic rollover and wire-speed transmission work. All ports provide POE power supply and support iee 802.3af/at standards. They can be used as power supply devices over Ethernet. They can automatically detect and identify receiving devices that meet the standards and supply power to them through network cables.

Plug and play, no management, convenient and fast.

Product name:48 GE Full Gigabit PoE Switch

 Model:NST-1024K-P48

 Fixed Port:48*10/100/1000Mbps PoE port（Data/Power）

 PoE Ports:1-48 port supports PoE

 Network Protocol:

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

 PoE Standard:Support IEEE802.3af/at

 Port Specification:10/100/1000BaseT（X）Auto

 Transmission Mode:Store and Forward(full wirespeed)

  Bandwidth:56Gbps

  Packet Forwarding:80.64Mpps

  MAC Address:8K

  Buffer:4.1M

  Transmission Distance:

 10BASE-T ： Cat3,4,5 UTP(≤100 meter)

100BASE-TX ： Cat5 or later UTP(100 meter)

1000BASE-TX ： Cat6 or later UTP(100 meter)

  Power Pin:Default 1/2(+)，3/6(-)ï¼›

  Single port power:MAX 30W;

   Total power/Input voltage:MAX 600W （AC100-240V 50/60HZ）

   Watt:Standby Power Consumption：≤20Wï¼›

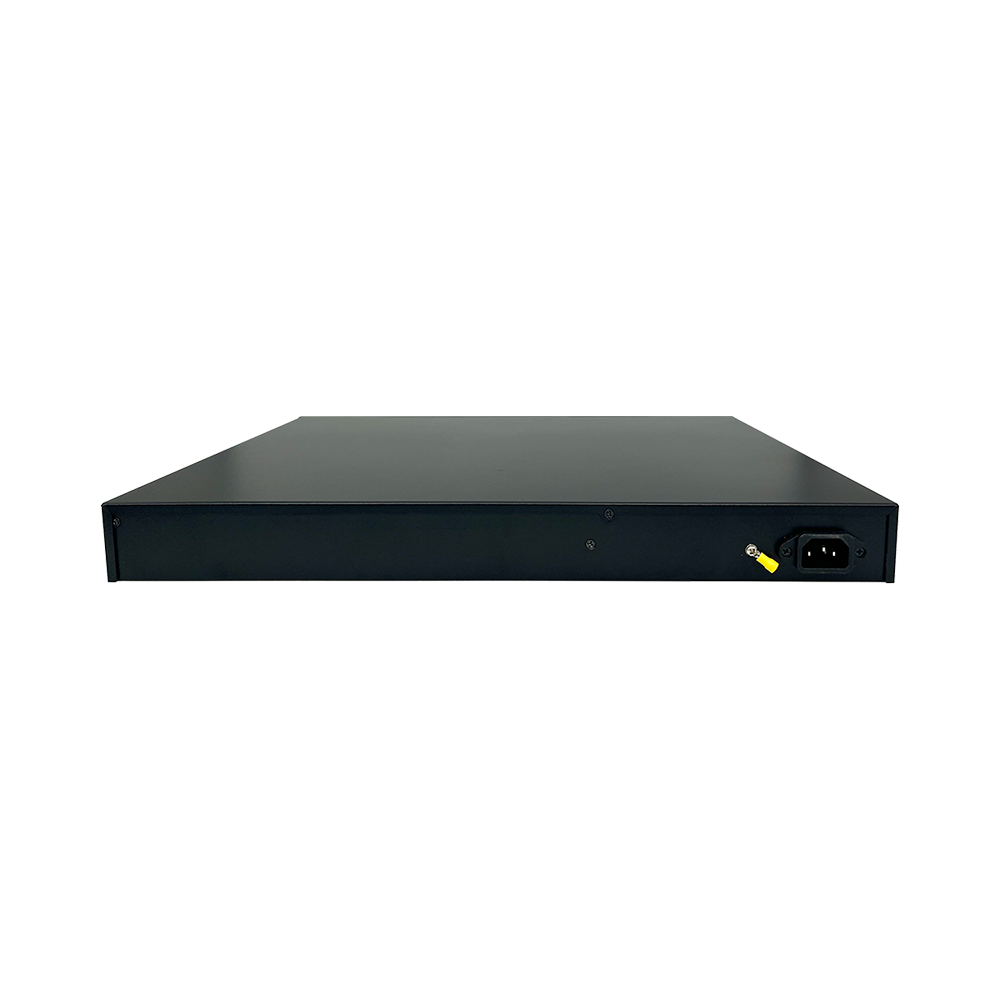

   Power Input:Built-in power AC：100～240V 50-60Hz 7A

   Operating Temperature/Humidity:-10～+55°Cï¼›5%～90% RH Non coagulation

   Storage Temperature/Humidity:-40～+75°Cï¼›5%～95% RH Non coagulation

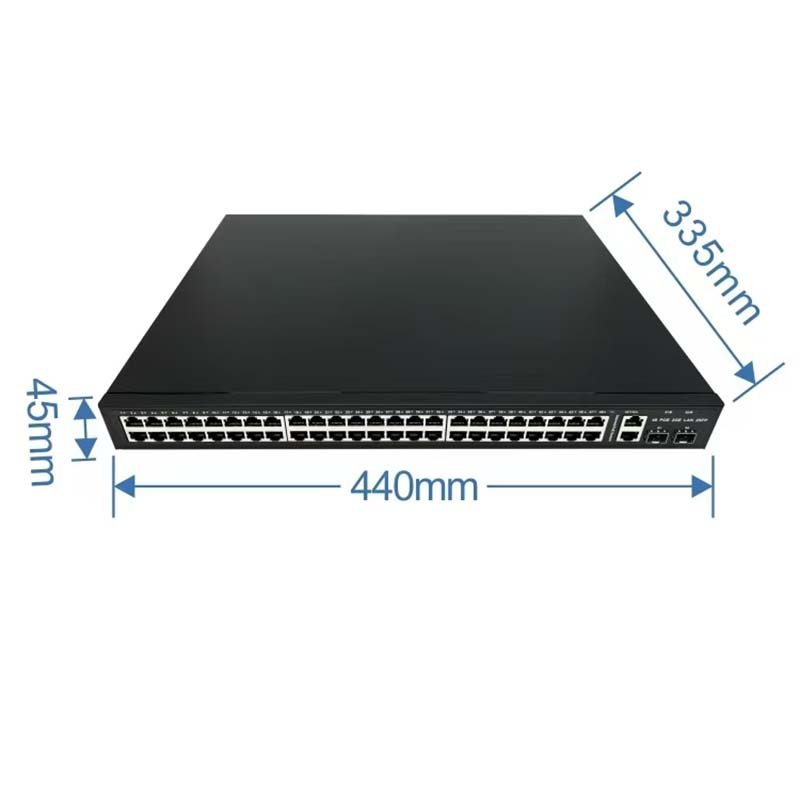

   Product size/Packing size（L*W*H）:440*335*45mm    576*386*71mm

   N.W/G.W（kg）:3.8kg/5.3kg

   Installation:Rack-mount(optional machine hanger spare parts)

   Lightning protection level:3KV 8/20usï¼›    IP30

  Certificate:CE  FCC
