Product Description

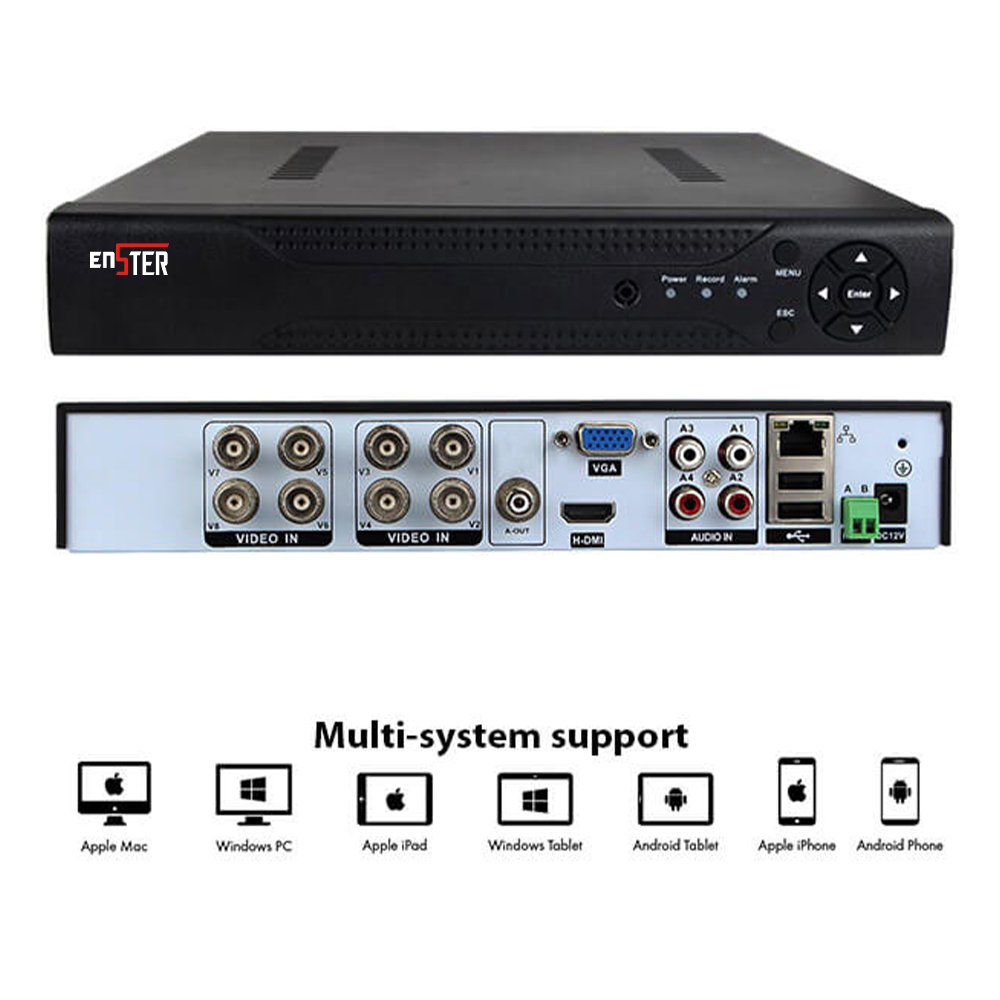

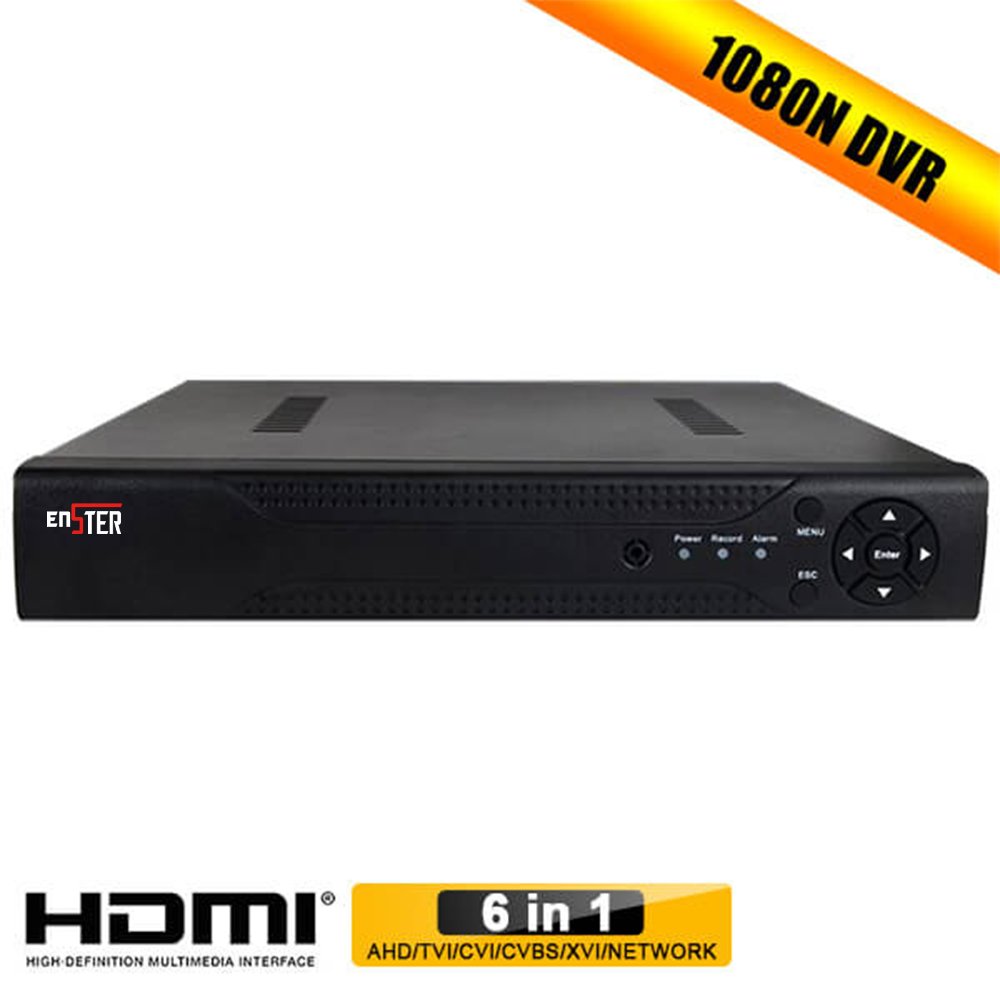

Penta-brid XVR DVR 8 Channel 1080N Digital Video Recorder Support AHD TVI CVI CVBS XVI IP Video Input
Main Features:
1) Channel: 8ch 1080N video input ability @15fps H.264 Compression

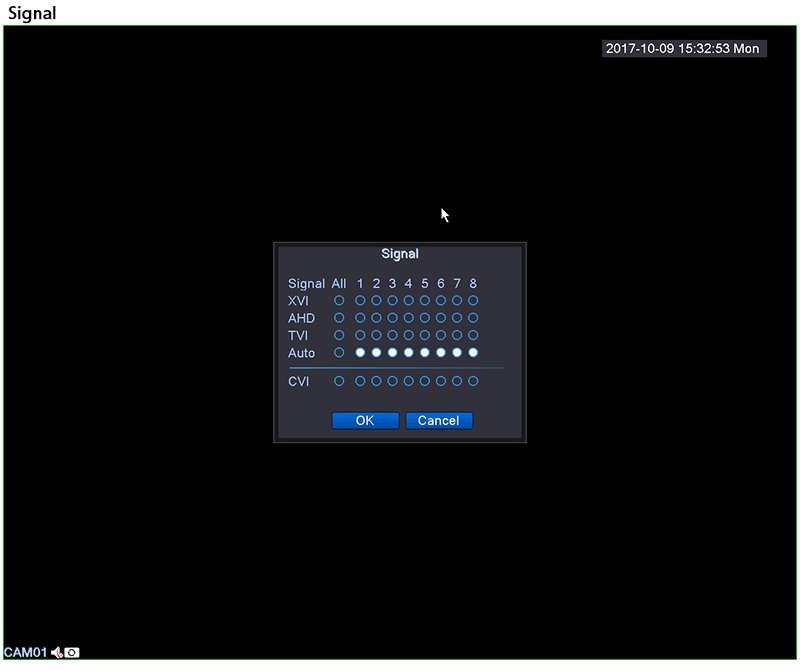

2) Video Input Type: AHD, TVI, CVI, XVI, CVBS, IP 6 in 1

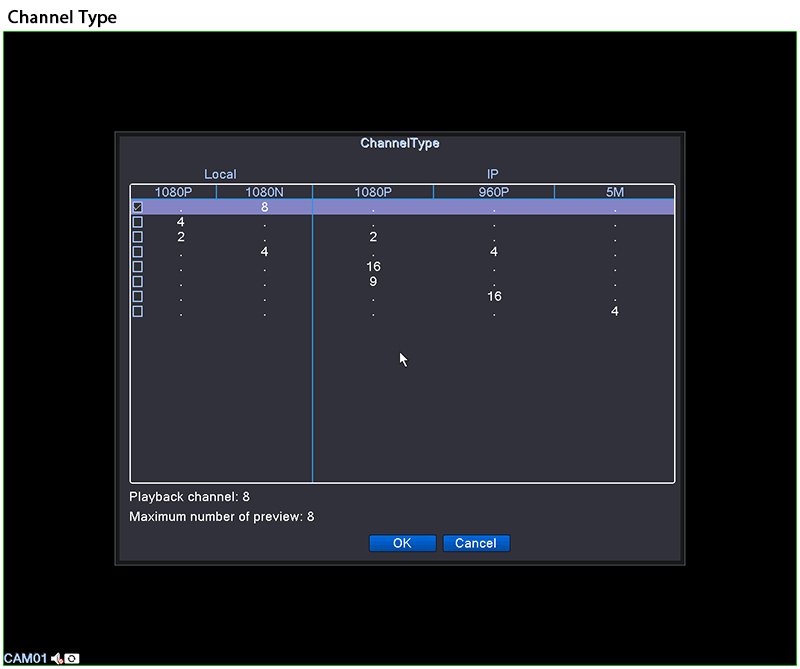

3) Channel Type: 8*1080N or 4*1080P (Coaxial HD) / 2*1080P(Coaxial HD)+2*1080P(IP) / 16*1080P or 4*5MP (IP)
4) Support 4ch Audio in and 1ch Audio out
5) Support RS485
6) Support 1*6TB
1>Support VGA, HDMI full HD output simultaneously;
2>Support ONVIF; access third party;
3>Support AHD, TVI ,CVI,CVBS,IPHD video input;

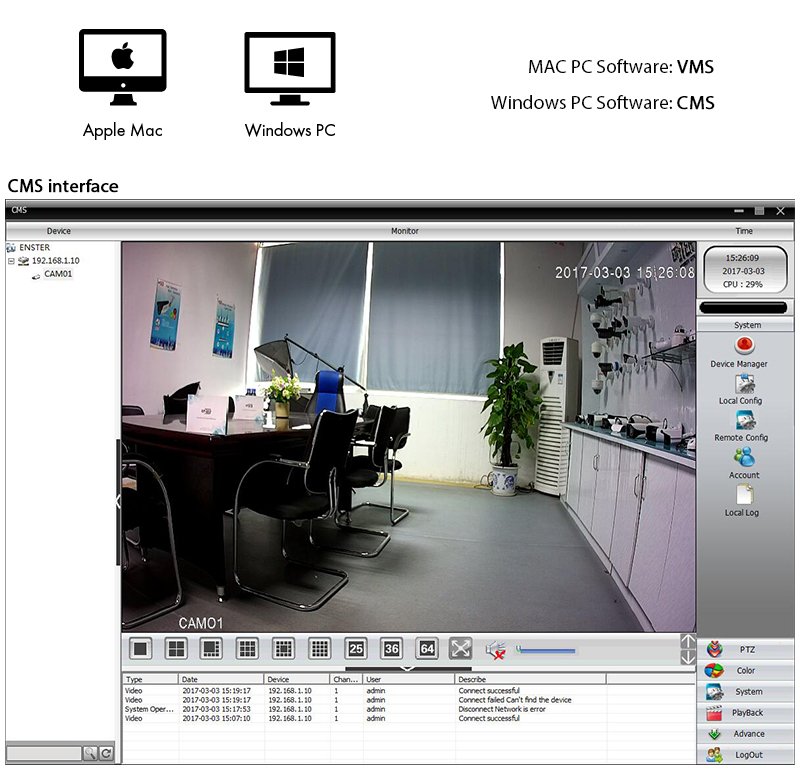

4>Support Web, CMS, center platform management software XMEYE, provide SDK development;
5>Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

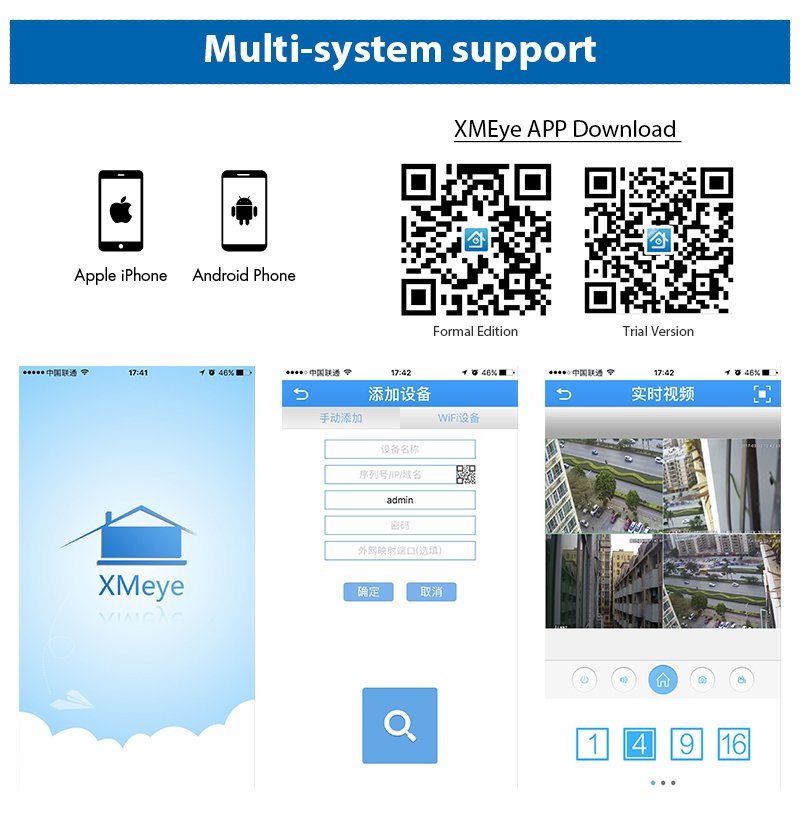

6>Support various mobile monitoring (iPhone, Android);
7>Remote Access, With DNS (ARSP),easy to monitor remotely.
Model No. | XVR6108-NH | |
System | Main processor | Technical grade embedded microprocessor HI 3520DV300 |
Operating system | Embedded LINUX operating system | |
System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |

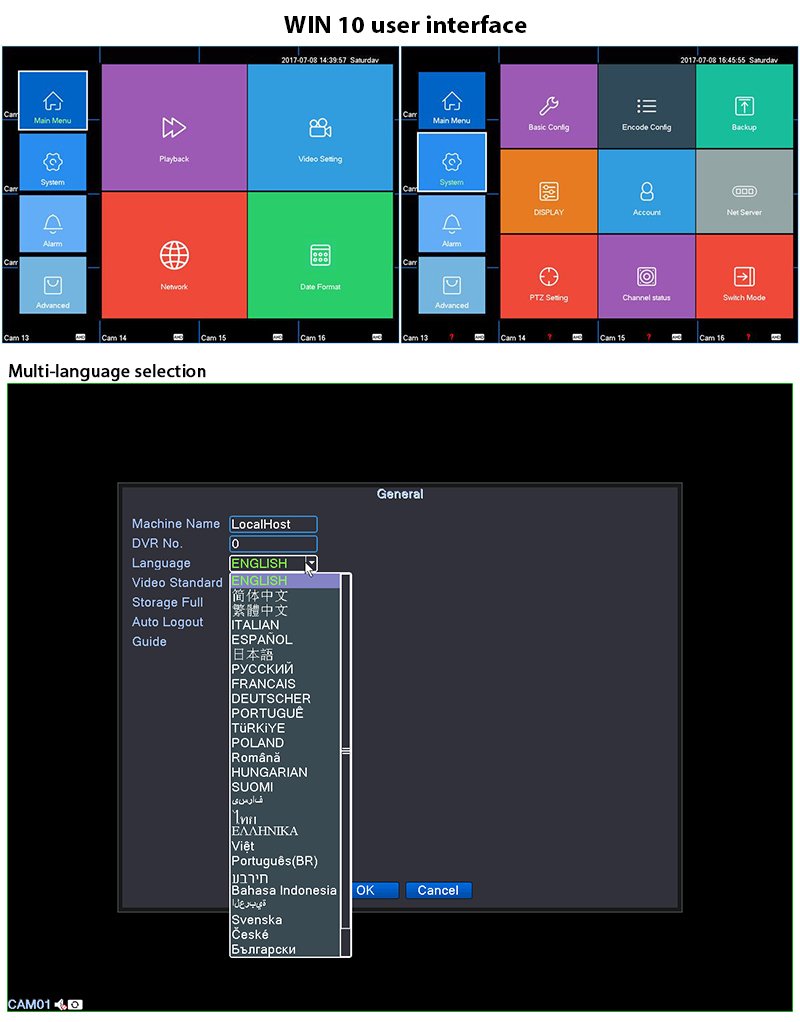

Interface | Operation interface | 16bit real color GUI interface support mouse operation |
Display screen | 1/4/8 screen (take analog channel as an example, other is base on the selected channel mode) | |
Video | Video standard | PAL/NTSC( 1080N ) |

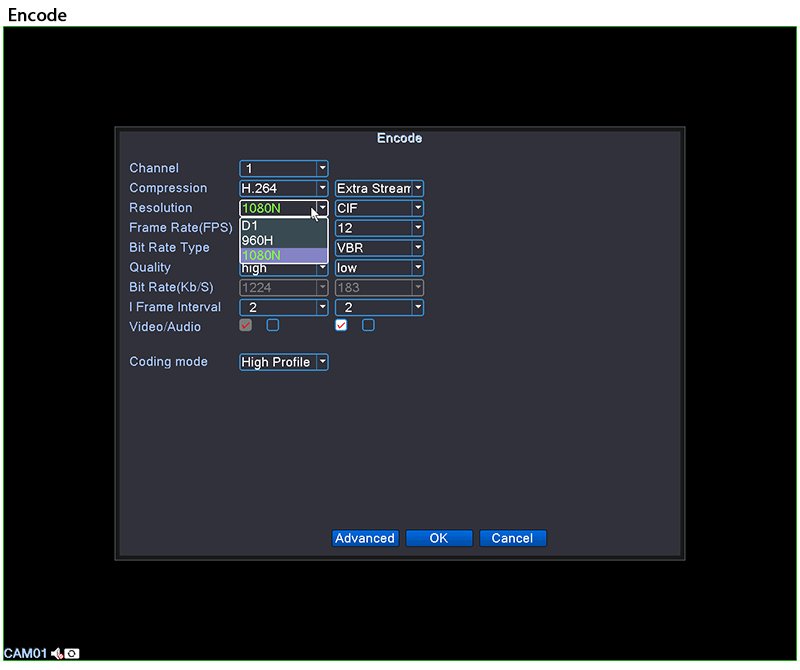

Image encode | H.264(High Profile); JPEG | |
Monitor quality | Monitor: D1, VGA, HDMI: High definition ( support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768 , 800*600 ) | |
Playback quality | 1080N/ D1/HD1/CIF | |
Encode capability | 8*1080N | |
Decode capability | 4*1080N | |
Multi-mode video input | AHD/TVI/CVI/ANALOG: 8*1080N(12FPS) HVR: 2*1080P(AHD)+2*1080P(IP) | |
Motion detection | Each channel can set 192(16*12)detection area; can set multi-level of flexibility (for local analog channel only) | |
Audio | Audio compression | G711A |
Bidirectional talk | support | |
Record and playback | Record mode | manual > alarm > motion detection > timing |
Local playback | 1-9ch playback synchronously (take local analog input for example, other is depended on the selected channel mode) | |
Video search | time, date, event, channel search | |
Storage and back up | Space occupation | Video: CIF 4~5G/day*channel, D1 16~20G/day*channel; |
Video storage | Local HDD, Network | |
Back up mode | Network backup, USB portable HDD, USB imprint, SATA imprint | |

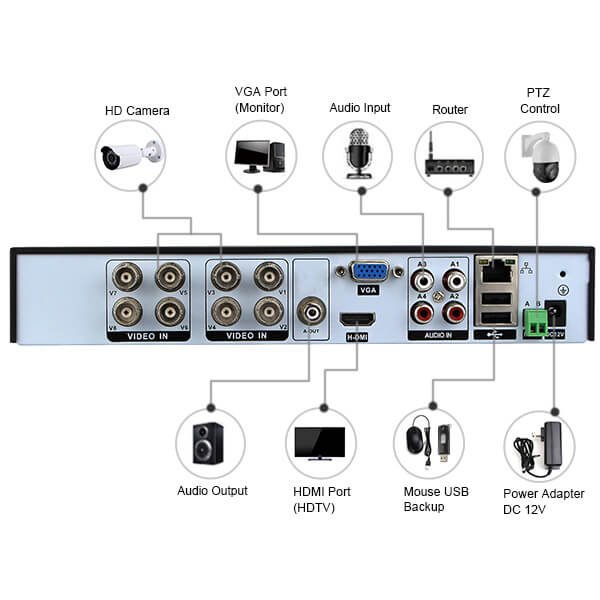

Interface | Video input | 8CH BNC(1.0Vp-p,75Ω) |
Video output | 1 CH VGA, 1 CH HDMI | |
Audio input | 4CH RCA | |
Audio output | 1 CH RCA(200-3000mV,5KΩ) | |
Alarm input | N/A | |
Alarm output | N/A | |
Network port | RJ45 10M/100M self-adaptive Ethernet port | |
PTZ control | 1 RS485; support multi kinds of PTZ protocol | |
USB port | 2*USB 2.0 | |
HDD port | 1 SATA ports (each max to 6TB) | |
Wireless port | 3G/WIFI( extension via USB port ) | |
other | Power | 12V/ 2.5 A |
Consumption | <15W ( not including HDD ) | |
Temperature | 0 ℃ - +55 ℃ | |
Humidity | 10% - 90% | |
Atmosphere pressure | 86kpa - 106kpa | |
Dimension | L255*W220*H45MM | |
Weight | 2.5KG | |
