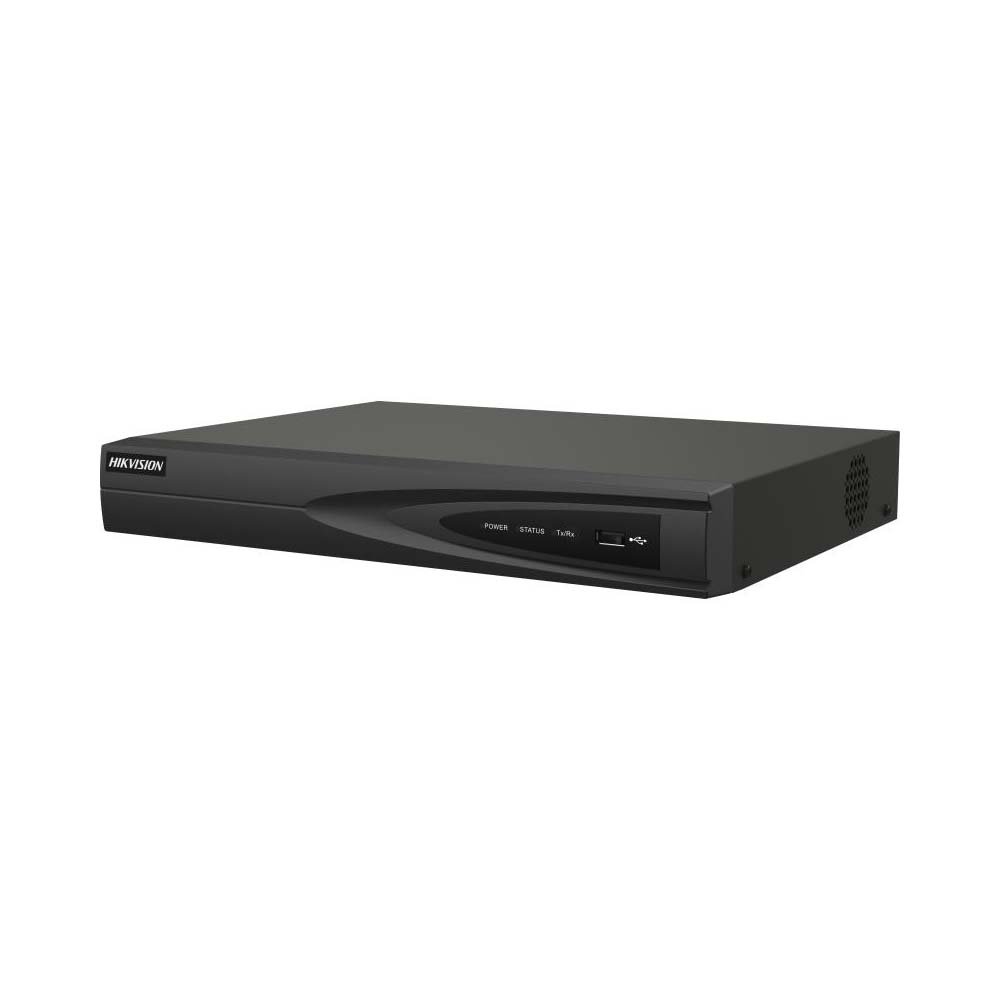

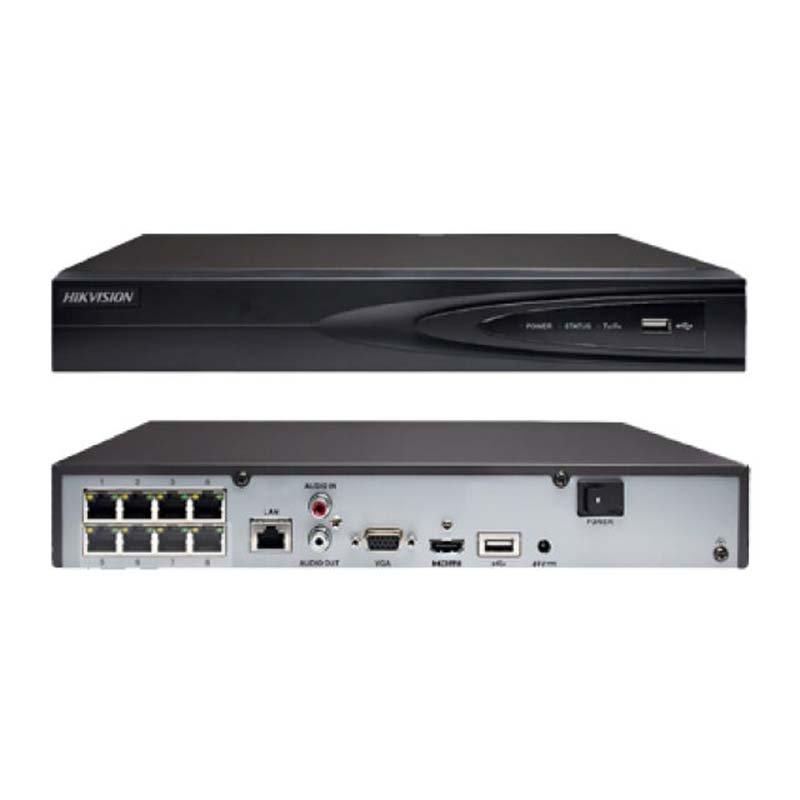

DS-7608NI-Q1/8P

Video And Audio

IP Video Input8-ch

HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,

VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output ModeHDMI/VGA simultaneous output

Incoming Bandwidth80 Mbps

Outgoing Bandwidth80 Mbps

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Recording

Stream TypeVideo, Video & Audio

Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Synchronous Playback8-ch

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Remote Connection32

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 75 W

Auxiliary Interface

Alarm In/OutN/A (4/1 is optional)

SATA1 SATA interface

CapacityUp to 8 TB capacity for each disk

USB Interface2 × USB 2.0

General

Power Supply48 VDC, 1.88 A

Consumption≤ 10 W (without HDD and PoE off)

Working Temperature-10 to +55º C (+14 to +131º F)

Working Humidity10% to 90%

Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight≤ 1 kg (without HDD, 2.2 lb.)

Certification

FCCPart 15 Subpart B, ANSI C63.4-2014

CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
