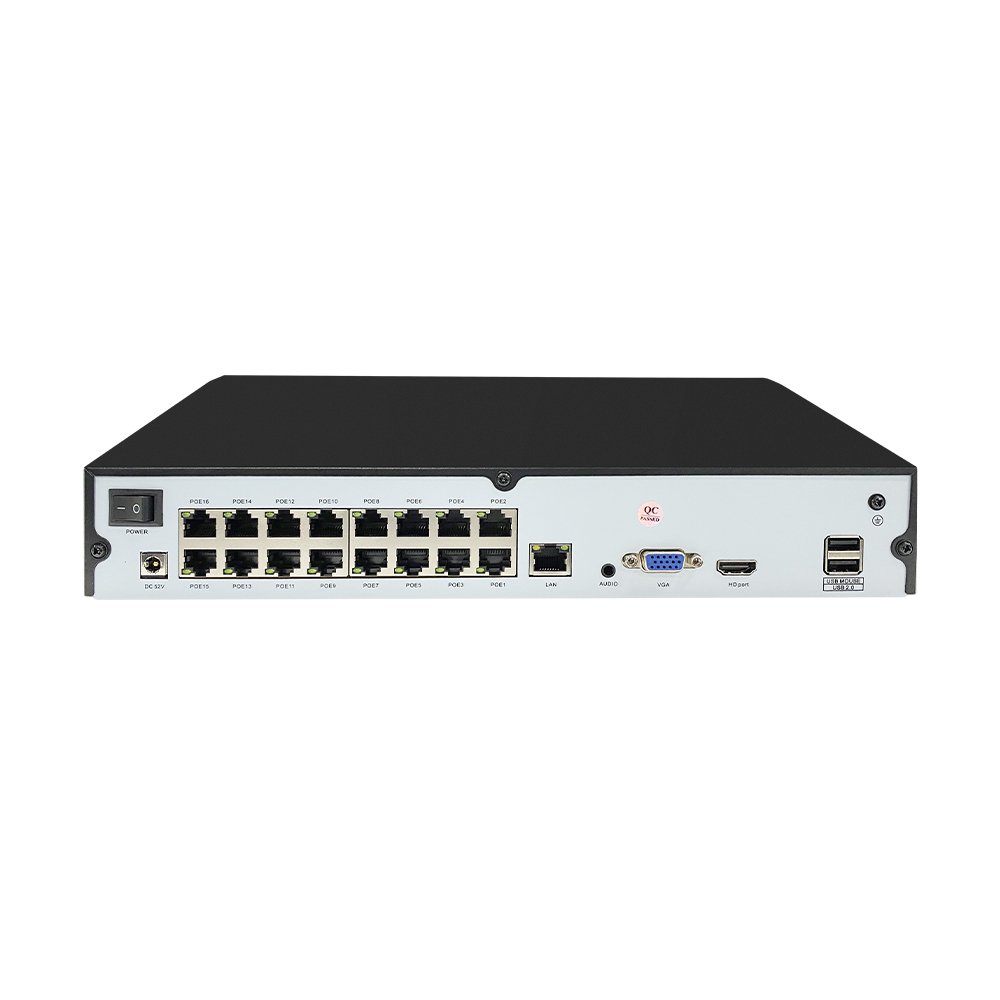

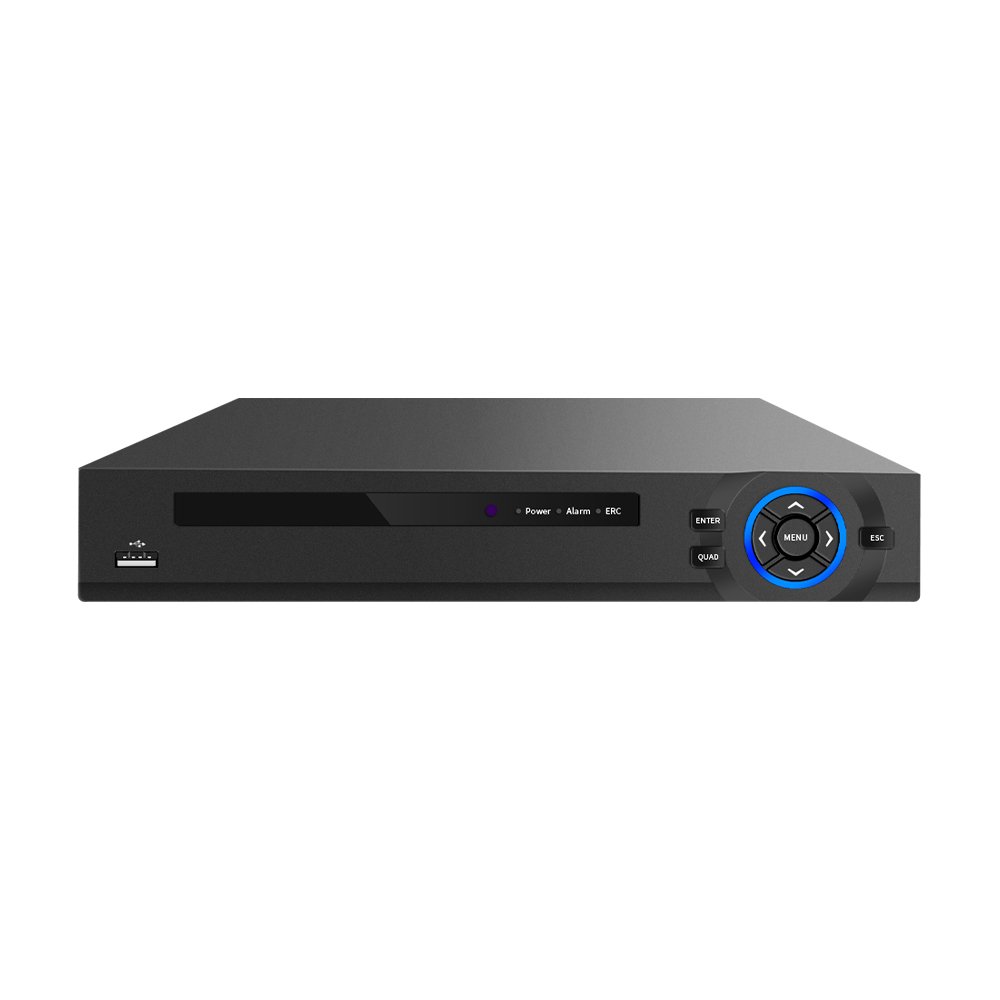

32 Channel 8MP H.265 Embedded Plug and Play PoE NVR With 16 Port PoE Switch DC48V Output

NST-NVR7516P-4K2

Product Description

Features:

Support Face Detection

Support VGA, HDMI full HD output simultaneously;

Support ONVIF; access third party;

Support Web, CMS, center platform management software XMEYE, provide SDK development;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support various mobile monitoring (iPhone, Android);

Remote Access, With DNS (ARSP),easy to monitor remotely.

Specifications:

Model No.	NBD80N32RA-KL-V3
System	Main processor	NT98332
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Interface	Preview	1/ 2/ 4 /6/8/9/16/25/32
Video	Video input (IP)	32*4K
	Video compression	H.265AI/ H.265 +(compatible H.265 /H.264)
	Display quality	Max: 4K
	Playback quality	4K/5M/4M/3M/1080P
	VR	Unsupport
	Motion detection	Support(depend on camera)
Audio	Audio compression	G.711 A
Audio	Intercom	support
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2)
	Search mode	Search by Time/Calendar/Event/Channel /Face
	Record storage	HDD 、 Network 、 Cloud
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output	1ch VGA ， 1ch HDMI HD output
	Audio I/O	1 / 1(3.5MM)
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M /1000M Adaptive Ethernet port
	USB interface	2*USB2.0 ports
	HDD	2 SATA(Up to 14TB for each disk)
	ESATA	No
	Serial interface	No
O ther	ONVIF	Support
	Power supply	12V/ 4 A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature: 0℃ － 55℃ , Humidity : 10% － 90% RH , Atm : 86kpa － 106kp
	Dimension	118mm*73mm
	Weight	A total of about 63g
