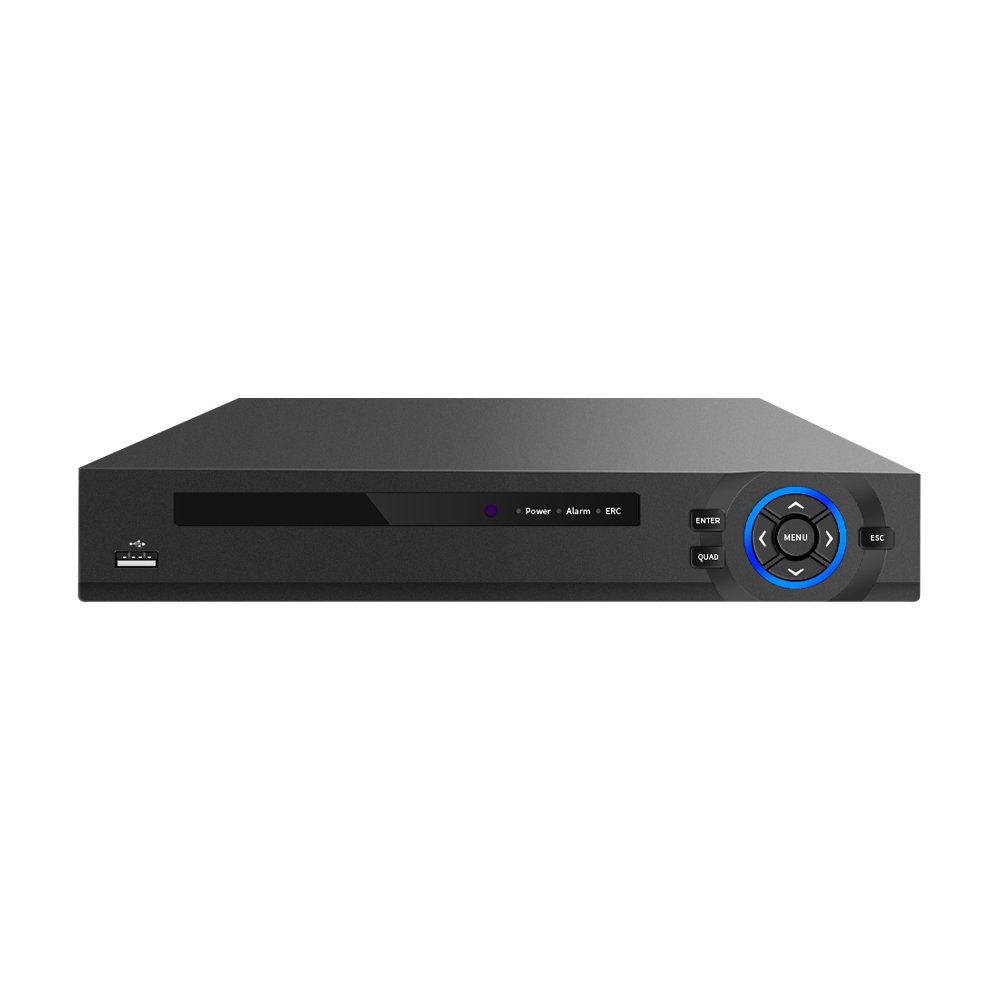

Product Description
Features:
Support Face Detection
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely.
Specifications:
Model No. | NST-NVR7516P-4K1 | |
System | Main processor | NT |
Operating system | Embedded LINUX operating system | |
System resource | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operation interface | 16-bit true color graphic menu operation interface, support mouse operation |
Display screen | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*8MP/16*4K |
Video standards | PAL(625TVL,50f/s);NTSC(525TVL,60f/s) | |
Video compression | H.265/H.264 | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
Decode | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
human shape / Face | Depend on camera | |
Audio | Audio compression | G711A |
intercom | support | |
Record and playback | Record mode | Manual>Alarm>Dynamic Detection>Timing |
Local playback | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Storage and back up | Record Storage | HDD 、 network |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |

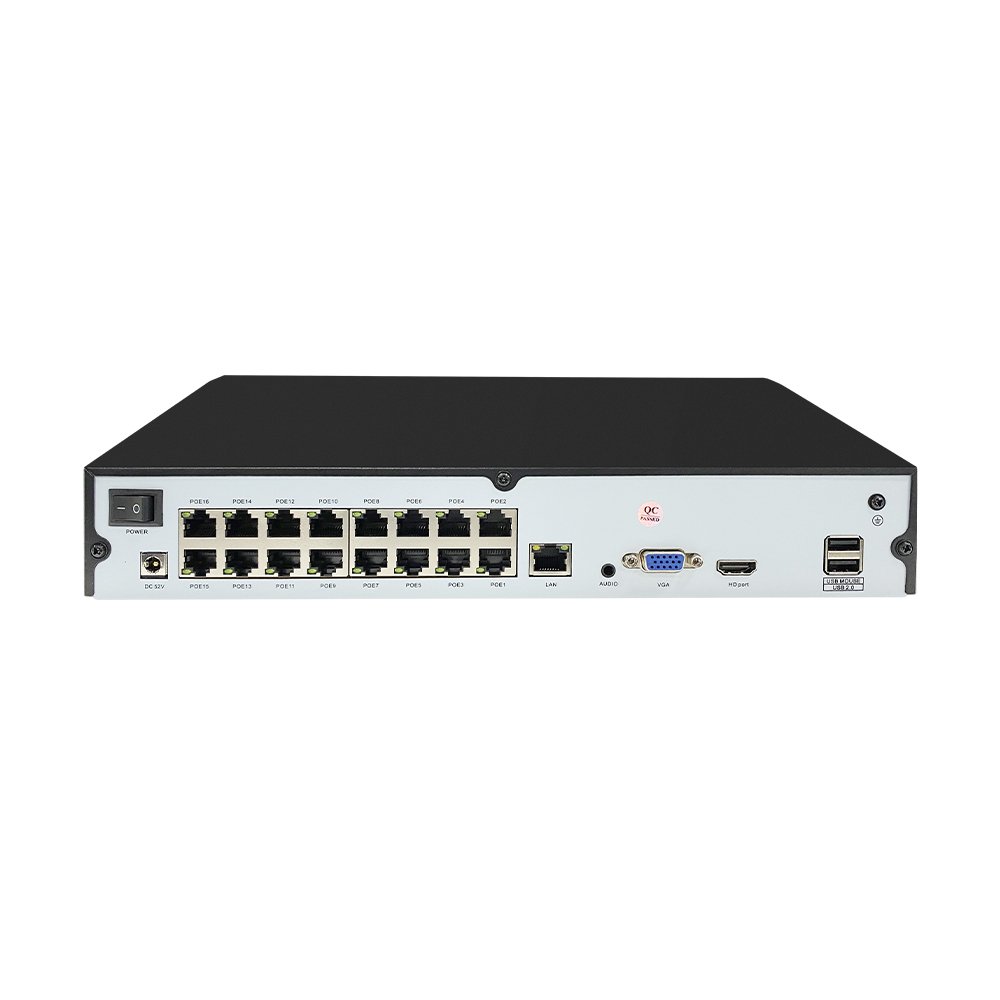

Interface | Video output | 1ch HDMI HD Output ,1CH VGA Output |
Audio I/O | 1/ 1（3.5mm） | |
Alarm I/O | 0/0 | |
Network interface | 1*SFP Port, 2* 100M/1000M Adaptive Ethernet port,16 POE Output ports | |
USB interface | 2*USB2.0 port | |
Hard disk | 1*SATA (Up to 14TB for each disk) | |
other | PTZ control | Control PTZ device by network |
ONVIF | Available | |
Power supply | DC 48V /5 A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp | |
Dimension | L440*W320*H45MM | |
Weight | 3.2KG | |
