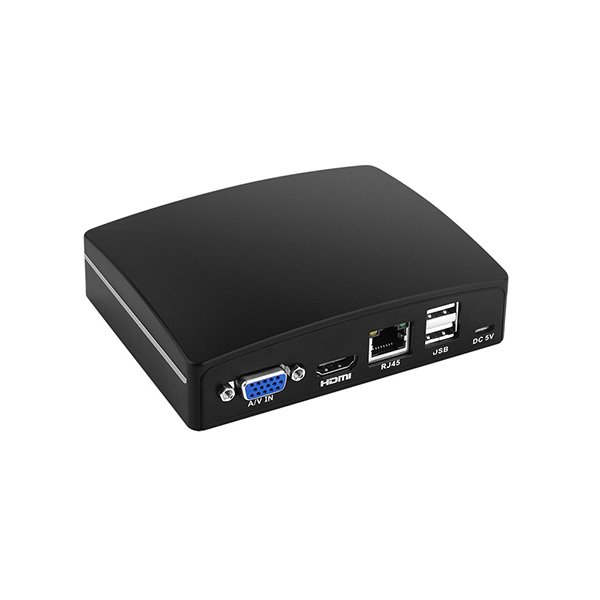

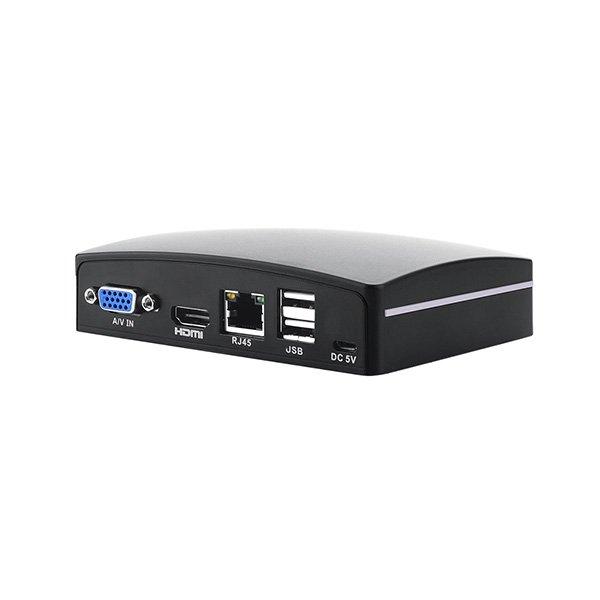

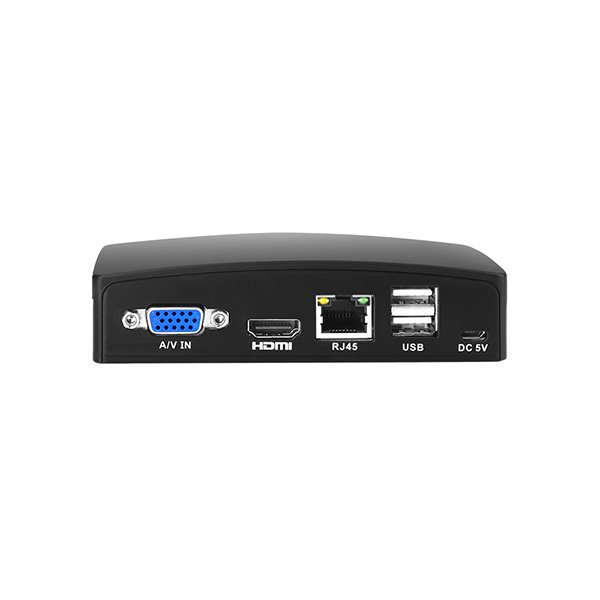

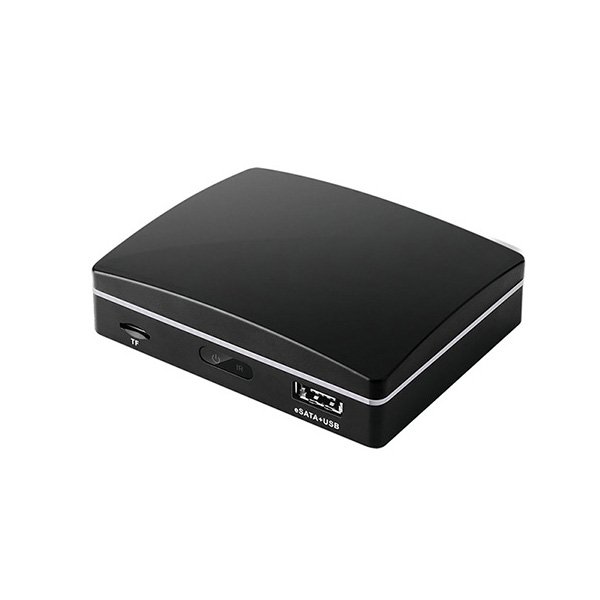

Product Description
| Model | NVR-2004 | NVR-2008 | |
| System | Main Processor | HI3520D | HI3520D |
| Operating System |
Embedded LINUX |
||
| System Resources | Pentaplex function:live,recording,playback,backup & remote access | ||
| Operation interface | 16-bit true color graphic menu operation interface, support mouse operation | ||
| Previer | 1/4 | 1/4/8/9 | |
| Video |
Video Standards |
NTSC ,PAL | |
|
Compressione Video |
H.264 High profile | ||
| quality supervision | VGA,HDMI: HD | ||
| Video Input(IP) | 4*1080P/8*960P/8*D1 | 8*1080P/12*960P/8*720P | |
| Video Recording | 1080P/960P/720P/D1 | ||
| Motion Detection | Rely on the front camera(If your camera is seamlessly supported by the NETIP protocol, if your camera is connected to the NVR via ONVIF, depending on the integrity of the camera's ONVIF protocol.) | ||
| Audio | ONVIF | ONVIF2.3 | |
| Power Supply | DC5V/1.5A(if you use more than 2tb hdd, please change 5V/4A or more adaptor by yourself) | ||
| Consumption | <10W(not including HDD) | ||
| Temperature | -20℃-55℃ | ||
| Humidity | 10%-90% | ||
| Atmosphere pressure | 86kpa-106kpa | ||
| Dimension | 200mm(length)*200mm(width)* 42mm(height) | ||
| Weight | 0.14kg(about) | ||
| Package weight | 0.41kg(about) | ||
