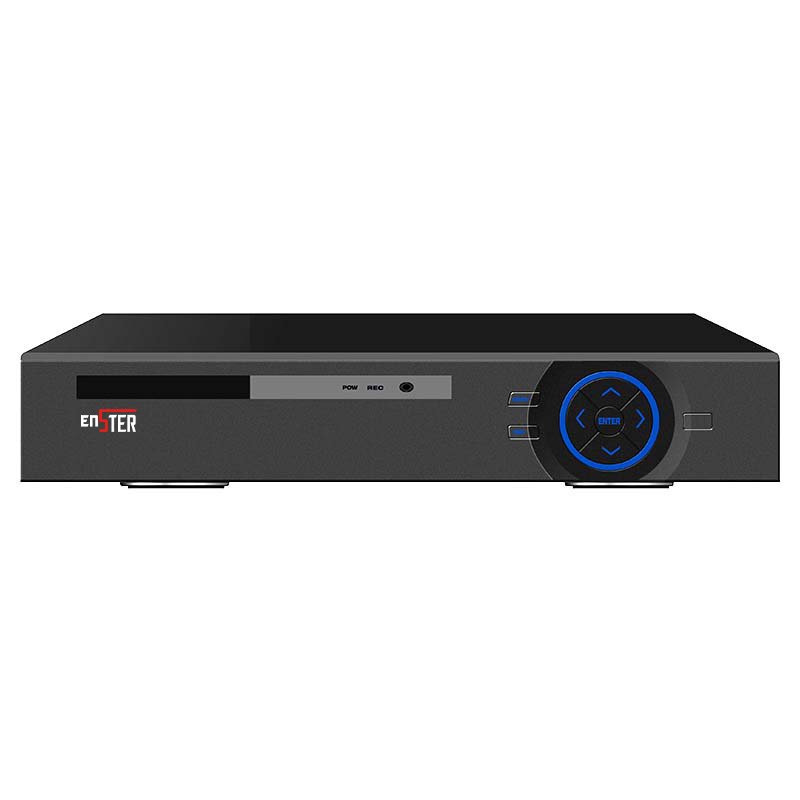

16CH H.265 8MP IP Camera Input NVR

NST-7516H
16CH H.265 8MP IP Camera Input NVR

NST-7516H

Product Description

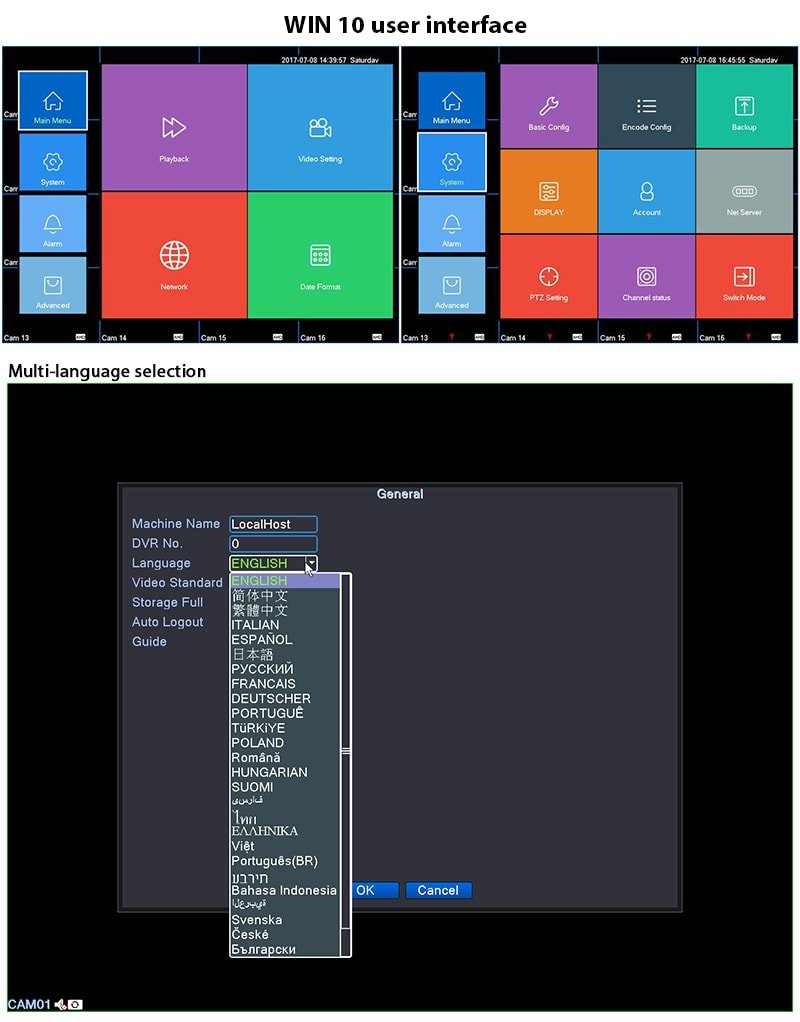

7508P-4-min

Support VGA, HDMI full HD output simultaneously;

Support ONVIF; access third party;

Support Web, CMS, center platform management software XMEYE, provide SDK development;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support various mobile monitoring (iPhone, Android);

Remote Access, With DNS (ARSP),easy to monitor remotely;

Model No.		NBD80S16S-KL
System	Main processor	Hi3536D
	Operating system	Embedded Linux
	System resource	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operation interface	16-bit true color graphic menu operation interface, support mouse operation
Interface	Display screen	1/2/4/6/8/9/16
Video	Video input (IP)	16*4K
	Video standards	PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:2560*1440
	Playback quality	4K/5M/4M/3M/1080P
	Decode	4K(1)/5M(1+1)/4M(2+1)/3M(2+2)/1080P(4+2)
	Motion detection	Depend on camera
Audio	Audio compression	G.711A
Audio	intercom	support
Record and playback	Record mode	Manual>Alarm>Video Detection>Continuous
	Local playback	4K(1)/5M(1+1)/4M(2+1)/3M(2+2)/1080P(4+2)
	Search mode	search by Time/calendar/event/channel
Storage and back up	Record Storage	HDD 、 network
Storage and back up	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
Interface	Video output	1ch VGA,1ch HDMI HD output
	Audio I/O	1/1（3.5mm）
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port
	USB interface	2*USB2.0 ports(one USB extension interface is reserved)
	Hard disk	1 SATA(Up to 14TB for each disk)
other	PTZ control	Control PTZ device by network
	ONVIF	Available
	Power supply	12V 2 A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
	Dimension	118mm*46mm
	Weight	A total of about 47g
