Product Description
Support VGA, HDMI full HD output simultaneously;
|
Model No. |
NBD80N32RA-KL-V3
|
|
|
System
|
Main processor |
NT98332 |
|
Operating system |
Embedded Linux |
|
|
System resource |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
|
Interface |
Operation interface |

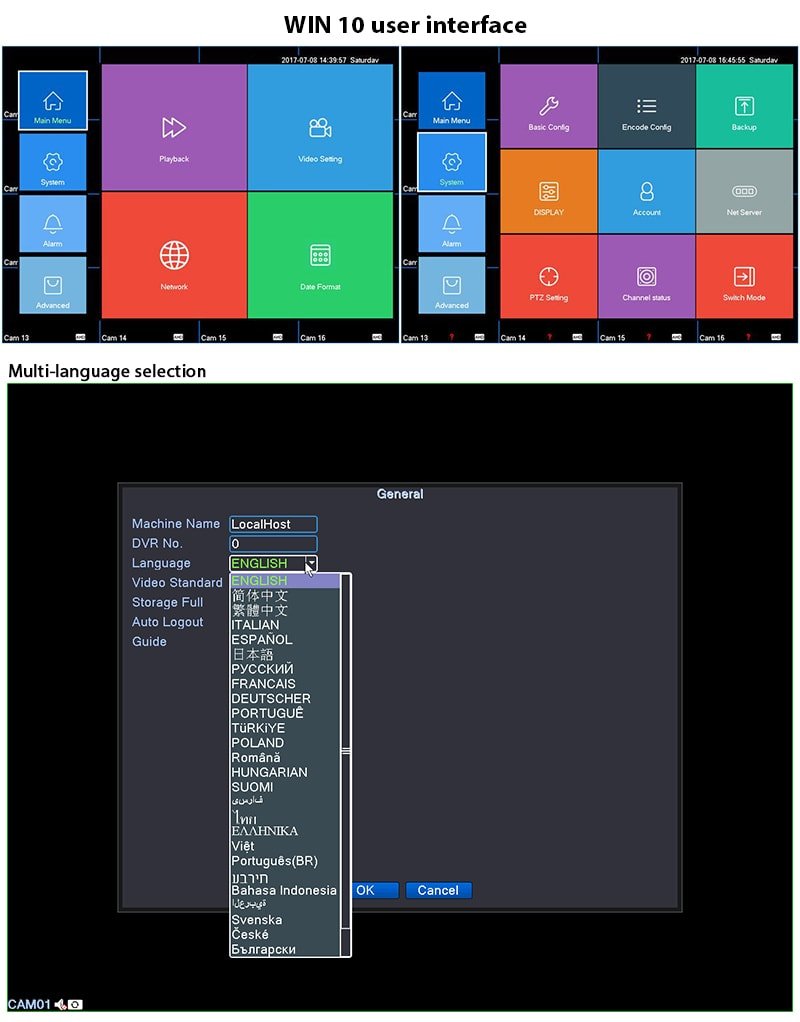

16-bit true color graphic menu operation interface, support mouse operation |
|
Display screen |
1/2/4/6/8/9/16/25/32 |
|
|
Video
|
Video input (IP) |
32*4K |
|
Video standards |
PAL(625TVL,50f/s);NTSC(525TVL,60f/s) |
|
|
Video compression |
H.265AI/H.265+(compatible H.265/H.264) |
|
|
Display quality |
Max:4K |
|
|
Playback quality |
4K/5M/4M/3M/1080P |
|
|
Decode |
4K(1+2)/5M(2+3)/4M(2+5)/3M(3+6)/1080P(5+9) |
|
|
Motion detection |
Depend on camera |
|
|
Audio |
Audio compression |
G.711A |
|
intercom |
Unsupport |
|
|
Record and playback |
Record mode |
Manual>Alarm>Dynamic Detection>Timing |
|
Local playback |
4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2) |
|
|
Search mode |
Search by Time/Calendar/Event/Channel/Face |
|
|
Storage and back up |
Record Storage |
HDD、Network、Cloud |
|
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
|
Interface |
Video output |
1ch VGA，1ch HDMI HD output |
|
Audio I/O |
1/1(3.5MM) |
|
|
Alarm I/O |
0/0 |
|
|
Network interface |
1*RJ45 10M/100M/1000M Adaptive Ethernet port |
|
|
USB interface |
2*USB2.0 ports |
|
|
Hard disk |
2 SATA(Up to 14TB for each disk) |
|
|
other |
PTZ control |
Control PTZ device by network |
|
ONVIF |
Available |
|
|
Power supply |
12V /4 A |
|
|
Power Consumption |
<10W(Without HDD) |
|
|
Work environment |
Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
|
|
Dimension |
118mm*73mm |
|
|
Weight |
A total of about 63g |
|
