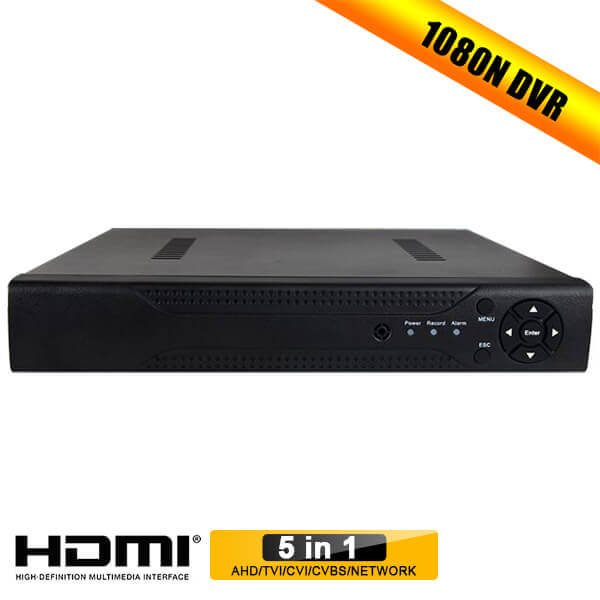

Product Description
|
Model No. |
AHD-6216NH |
|
| System | Main processor |
Hi3521A
|
| Interface | Preview |
1/4/8/9/16
|
| Video | Codec |
|
| Monitor quality |
VGA,HDMI:HD
|
|
| Preview ability |
16*1080N
|
|
| Encode ability |
16*1080N@12fps
|
|
| Decode ability |
16*1080N@12fps
|
|
| Multi-mode input |
analog: 16*1080N;8*1080N; hybrid: 8*1080N(analog)+8*960P(network) Network only:8*1080P+8*960P;16*960P;4*3M;4*5M
|
|
| Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
| Audio | Audio compression |
G.711A
|
| Intercom |
support
|
|
| Record & playback | Record mode |
manual>alarm>motion detection>timing
|
| Local Playback |
16ch(local input mode)
|
|
| Search mode |
Search by time, calendar, event, channel
|
|
| Storage & backup | Video storage |
HDD, network
|
| Backup mode |
Network, USB hard disk, USB burner, SATA burner
|
|

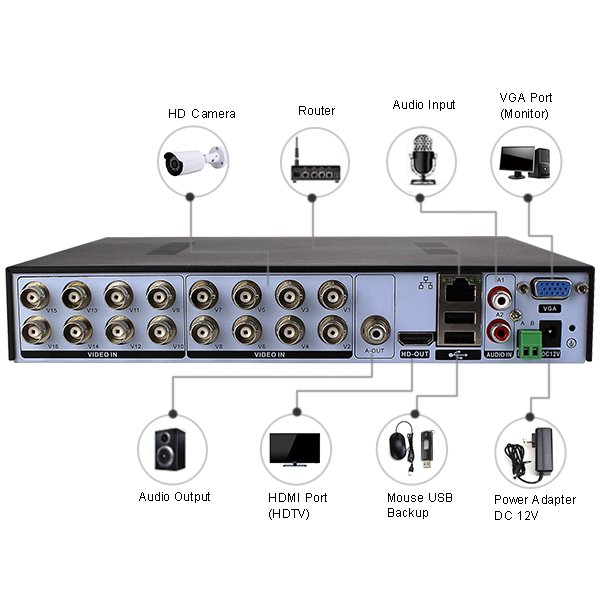

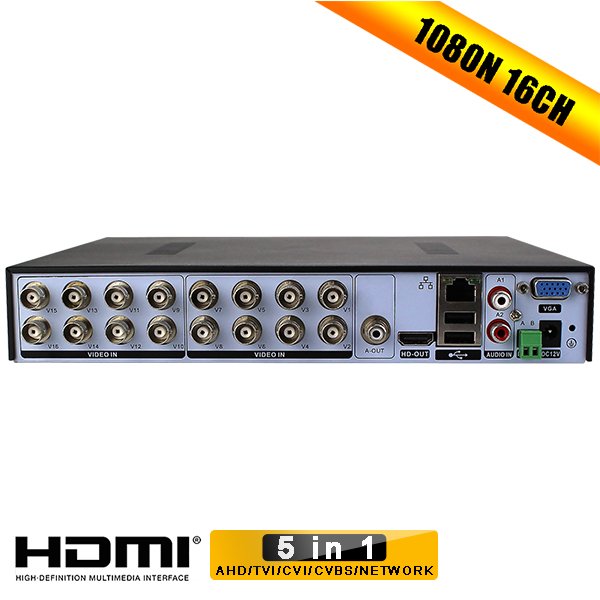

| External Interface | Video input |
16ch BNC
|
| Video output |
1ch VGA, 1ch HDMI
|
|
| Loop Vout |
N/A
|
|
| Audio I/O |
2(Can be extended to 6ch)/1
|
|
| Alarm I/O |
0(Can be extended to 4ch)/0(Can be extended to 1ch)
|
|
| Network interface |
RJ45 10M/100M self-adaption
|
|
| PTZ control |
1*RS485, Support kinds of PTZ protocols
|
|
| USB |
2* USB 2.0 ports
|
|
| HDD |
2*SATA ports (Max 8TB/per)
|
|
| Wireless |
3G, WIFI (extend via USB)
|
|
| General | Power supply |
12V/4A
|
| Power Consumption |
<15W (without HDD)
|
|
| Working environment |
Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
|
|
| Dimension |
235mm*90mm
|
|
| Weight |
279g
|
|
