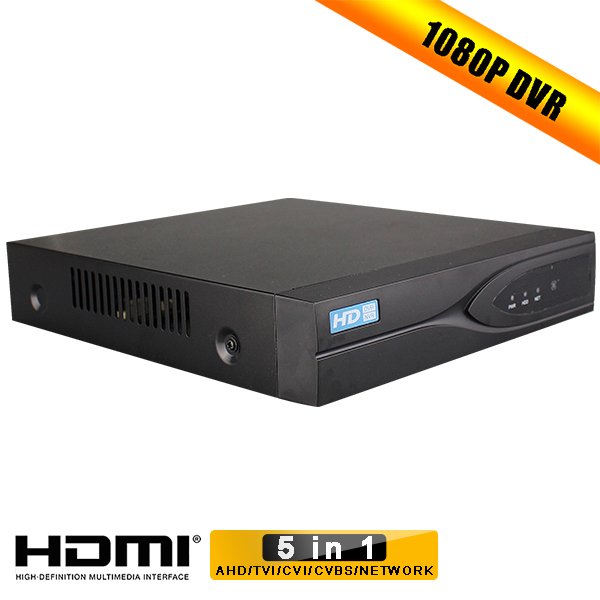

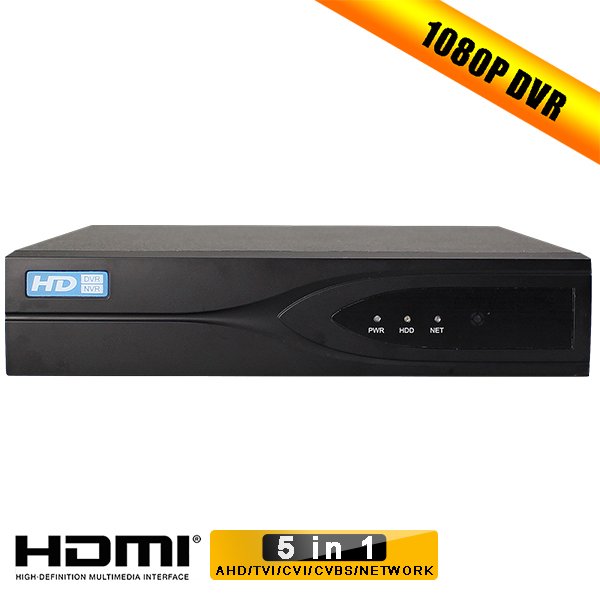

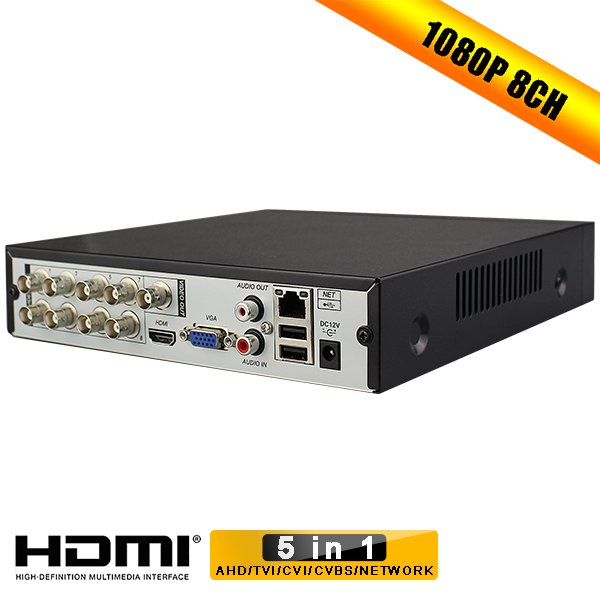

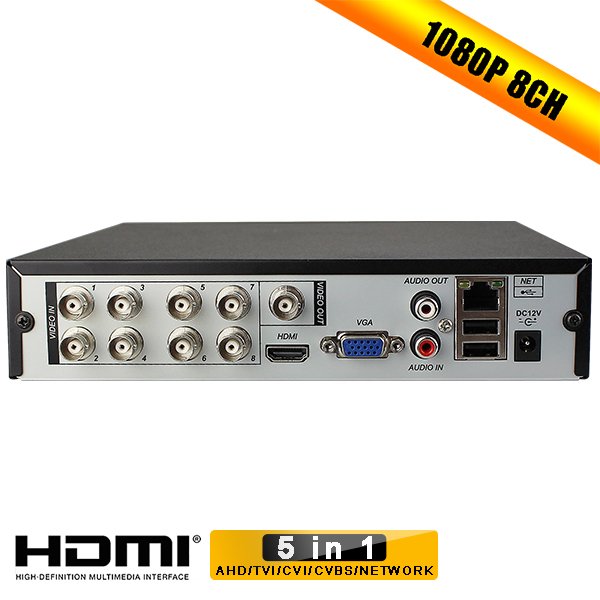

Model

NST-XVR6104GT

NST-XVR6108GT

NST-XVR6116GT

OS

Embedded Linux

Video&Audio
input

Video Input

4CH

8CH

16CH

CVBS/TVI/AHD/CVI/IPC

support remote coaxial visual control

BNC interface(1.0Vp-p,75ohms)

TVI1080P/TVI720P/AHD1080P/AHD720P/CVI1080P/CVI720P/960H/D1

IP channel

32Mbps

64Mbps

128Mbps

Up to 2048*1536@30FPS

Audio Input

1CH,RCA(2Vp-p,1Kohms)

Bidirectional
Talk

Reuse audio input/output channel 1

Video&Audio
output

CVBS Output

1CH,BNC(1.0Vp-p,75ohms)

VGA

1CH,1920×1080,1280×1024,1366×768,1280×720,1024×768

HDMI

Standard 1.3a

Standard 1.4a

1920×1080,1280×1024,1366×768,1280×720,1024×768

3840×2160,1920×1080,1280×1024,1366×768,
1280×720,1024×768

Audio output

1CH,RCA(Line out,2Vpp,300ohms)

Video&Audio encoding

Live Resolution

2048*1536(IP channel)/1080P/Half-1080P/720P/WD1/D1

Video Compression

H.264 High Profile@Level4.2

Encoding resolution

Main stream:1080P/Half-1080P/720P/WD1/D1
Auxiliary stream:CIF/QCIF

Max Compression Ability

4CH 720P@25FPS1080P@12FPS

8CH 720P@30FPS1080P@15FPS

16CH 720P@30FPS1080P@15FPS

Encoding Frame

1~30FPS

Bitrate Control Mode

CBR/VBR

Video Bit Rate

32Kbps~4096Kbps

Stream Type

Video/Video&Audio

Audio Compression

G.711A

Audio Bit Rate

64Kbps

Dual-Stream

Support,Up to CIF@30FPS

Video&Audio
decoding

Video Decoding

H.264 High Profile@Level4.2

Synchronous Playback

Up to 4CH

Up to 8CH

Up to 16CH

Decoding Ability

≥4CH 720P@30fps

≥8CH 720P@30FPS

Intelligent Analysis

1CH Face Detection or 4CH Perimeter Detection

2CH Face Detection or
8CH Perimeter Detection

Other
Function

Bidirectional Talk

Two-way voice intercom function

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Privacy Zone Masking

4 Area per channel

Picture Capture

Support JPEG capture

HDD
Interface

SATA

1 SATA Interface

Max Capacity

Unlimited

External
Interface

Network
Interface

1 RJ45 Interface;
10M /100M self-adaptive Ethernet interface

1 RJ45 Interface;
10M /100M /1000M self-adaptive Ethernet interface

USB

2 USB2.0 Interfaces

RS-485

N/A

N/A

1 RS-485 Interface

Structure

Dimensions

410x293x60mm

410x293x60mm

370x305x115mm

Size

215x235x45mm

215x235x45mm

320x246x48mm

Installation

Desktop Installation

General

Power Supply

DC +12V 2A

DC +12V 3.3A

Working Temperature

0℃--+55℃

Working Humidity

10%--90%

Consumption

6W(without HDD)

8W(without HDD)

16W(without HDD)
