Product Description
|
Model No.
|
XVR6304-K
|
|
|
System
|
Main processor |
Hi3521D
|
|
Interface |
Preview |
1/4/8/9 |
|
Video
|
Codec |
H.265+ |
|
Monitor quality |
VGA(1080P at most);HDMI(4K at most) ) |
|
|
Preview ability |
4*8M@15fps5M@20fps |
|
|
Encode ability |
4*8M@8fps5M@14fps4M@18fps3M@21fps |
|
|
Decode ability |
4*8M@8fps5M@14fps4M@18fps3M@21fps |
|
|
Multi-mode video input |
analog : 4*8M ; 4*5M; Digital to analog conversion : support ( except 4+4 hybrid mode )Hybrid : 4*5M ( analog ) +4*5M ( network ) 2*4K ( analog ) +2*4K ( network )network : 8*1080P+8*960P ; 4*5M ; 3*5M |
|
|
Motion detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record and playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local playback |
4ch(analog input mode) |
|
| Search mode |
Search by time, calendar, event, channel |
|
|
Storage and back up |
Video storage |
HDD, network |
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
|
|

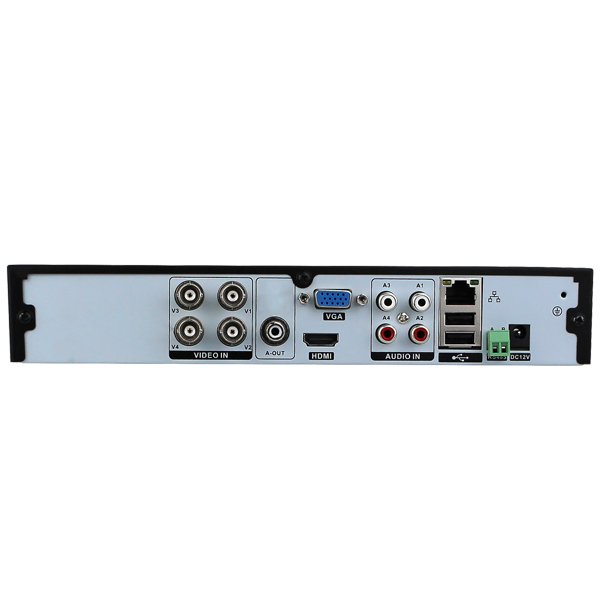

External Interface |
Video input |
4ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Loop Vout |
N/A |
|
|
Audio I/O |
4/1 |
|
|
Alarm I/O |
0 ( Can be extended to 4ch ) /0 ( Can be extended to 1ch ) |
|
|
Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
1*RS485, Support kinds of PTZ protocols |
|
|
USB |
2* USB 2.0 ports |
|
|
HDD |
2*SATA ports (Max 8TB/per) |
|
|
Wireless |
3G, WIFI (extend via USB) |
|
|
General |
Power supply |
12V/4A |
|
Power Consumption |
<15W (without HDD) |
|
|
Working environment |
Temperature:0 ℃— +55 ℃, Humidity:10% — 90% , Atm:86kpa — 106kpa |
|
|
Dimension |
178mm*87mm |
|
|
Weight |
2.4kg |
|
