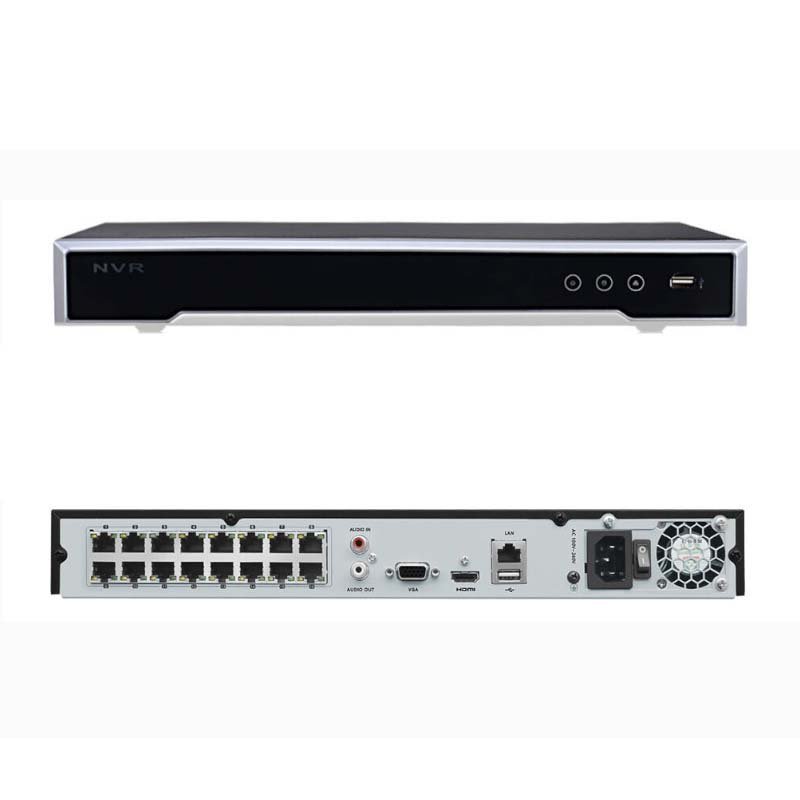

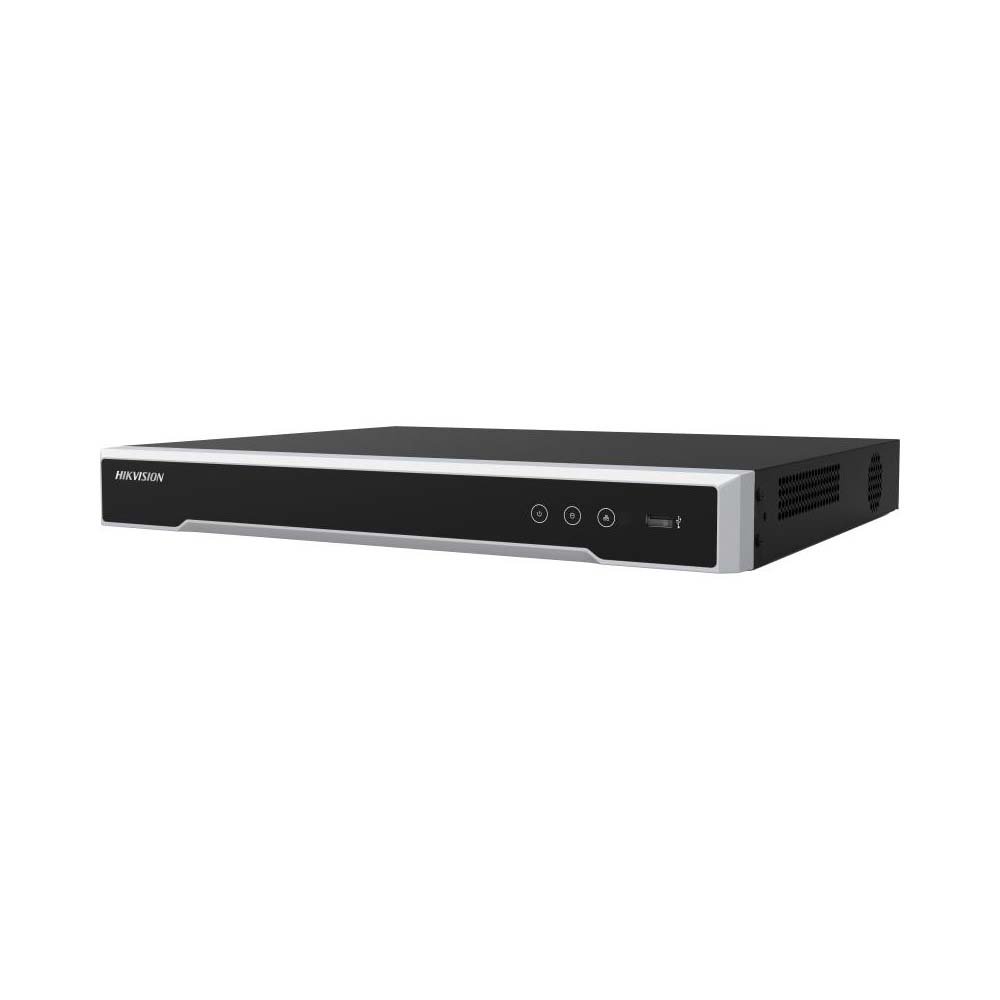

H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR, Plug & Play, International Original English Version H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR, Plug & Play, International Original English Version H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR, Plug & Play, International Original English Version

H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR, Plug & Play, International Original English Version

H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR
Plug & Play
International Original English Version
Compatible with Hik vision Hik-ConnectUp to 16-ch IP camera inputsH.265+/H.265/H.264+/H.264 video formatsUp to 1-ch @ 8MP or 5-ch @ 1080P decoding capacityUp to 160 Mbps incoming bandwidth2 SATA interfaces

DS-7616NI-Q2/16P

SEND INQUIRY NOW

H.265 16 Channel PoE 4K 8MP Network Video Recorder NVR, Plug & Play, International Original English Version, Compatible with Hik vision Hik-Connect


Video And Audio

IP Video Input16-ch

HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output ModeHDMI/VGA simultaneous output

Incoming Bandwidth160 Mbps

Outgoing Bandwidth80 Mbps

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Synchronous Playback16-ch

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface16-ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 150W

StandardIEEE 802.3 af/at

RAID

RAID TypeNo

Auxiliary Interface

SATA2 SATA interfaces

CapacityUp to 8TB capacity for each disk

USB Interface2 × USB 2.0

General

Power Supply100-240V～, 50/60Hz, 3.2A MAX

Consumption≤ 15W

Working Temperature-10 to +55º C (+14 to +131º F)

Working Humidity10 to 90 %

Chassis1U chassis

Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight≤ 2.6 kg (5.7 lb)




CONTACT US

Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.

LEAVE A MESSAGE

If you have any questions about our products or services, feel free to reach out to customer service team.

RECOMMENDED

They are all manufactured according to strict international standards. ENSTER serves 160+ countries with 1,000+ CCTV SKUs and 500+ OEM clients worldwide.

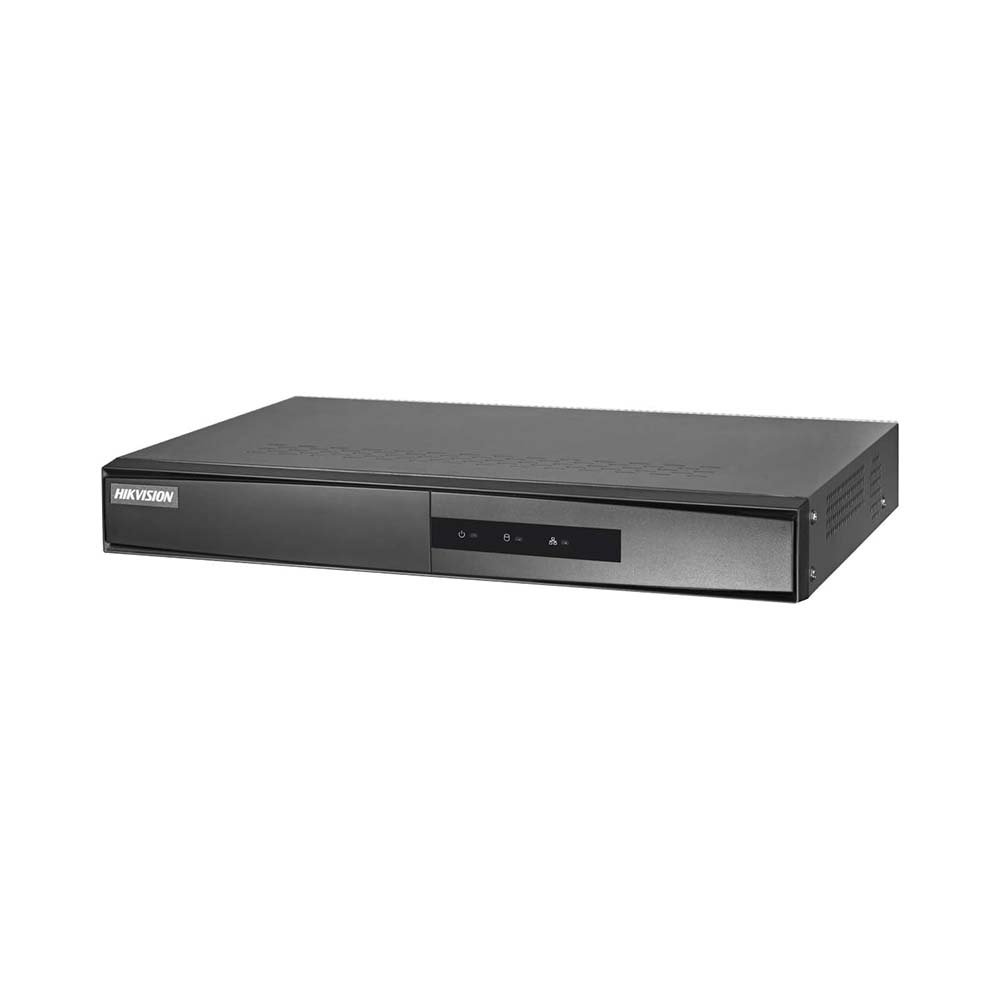

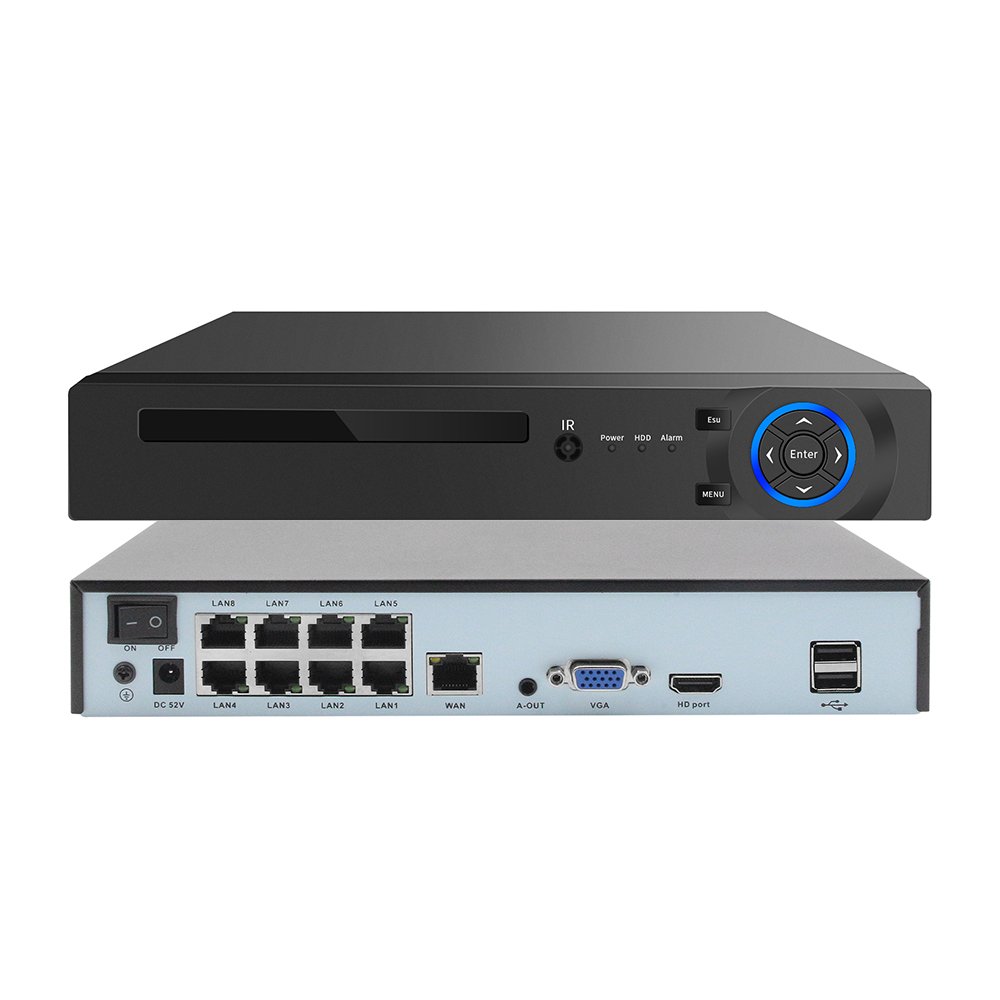

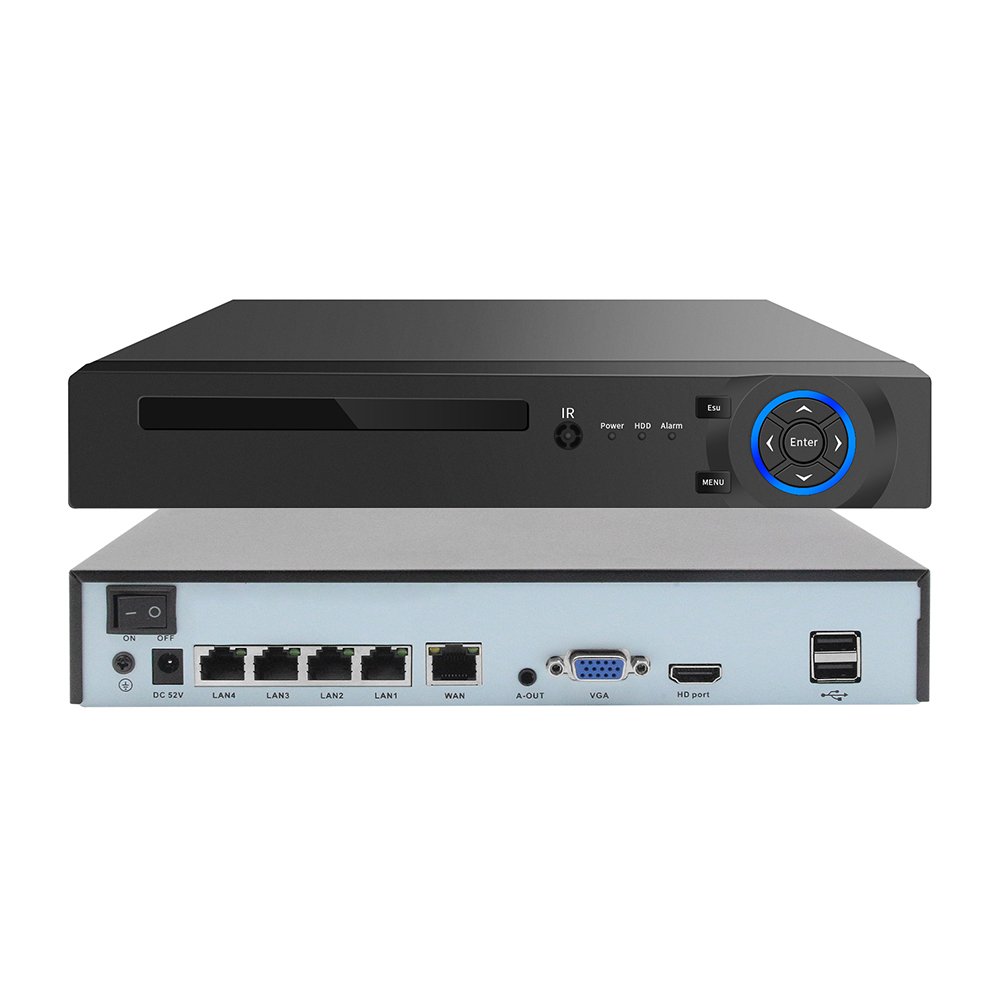

32 Channel 8MP H.265 Embedded Plug and Play PoE NVR With 16 Port PoE Switch DC48V Output 32 Channel 8MP H.265 Embedded Plug and Play PoE NVR With 16 Port PoE Switch DC48V Output NST-NVR7516P-4K2 4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output 4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output NVR-7504P-4K 8CH 4K H.265 Plug and Play PoE NVR With 8 Port DC48V Output 8CH 4K H.265 Plug and Play PoE NVR With 8 Port DC48V Output NST-NVR7508P-4K 16 Channel 8MP 4K UHD H.265 Embedded Plug and Play PoE NVR With 16 Port PoE Switch DC48V Output 16 Channel 8MP 4K UHD H.265 Embedded Plug and Play PoE NVR With 16 Port PoE Switch DC48V Output NST-NVR7516P-4K1 OEM HIKVISION DS-7104NI-Q1/4P/M 4-ch Economic NVR, Up to 4-ch Network Camera Inputs & 40 Mbps Incoming Bandwidth OEM HIKVISION DS-7104NI-Q1/4P/M 4-ch Economic NVR, Up to 4-ch Network Camera Inputs & 40 Mbps Incoming Bandwidth OEM HIKVISION NVRH.265+/H.265/H.264+/H.264 video compressionUp to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidthUp to 4-ch network camera inputsUp to 4-ch 1080p decoding capabilityHDMI and VGA simultaneous output OEM hikvision 8-channel POE NVR DS-7108N1-Q1/8p/M OEM hikvision 8-channel POE NVR DS-7108N1-Q1/8p/M 8-ch Mini 1U 8 PoE NVRH.265+/H.265/H.264+/H.264 video compressionUp to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidthUp to 8-ch network camera inputsUp to 4-ch 1080p decoding capabilityHDMI and VGA simultaneous output 4K 8-Channel PoE Network Video Recorder NVR, Embedded Plug & Play DS-7608NI-Q1/8P 4K 8-Channel PoE Network Video Recorder NVR, Embedded Plug & Play DS-7608NI-Q1/8P 4K 8-Channel PoE Network Video Recorder NVR, Embedded Plug & Play DS-7608NI-Q1/8P HikVision DS-7608NI-Q2/8P 8Channel 8PoE NVR, 2 SATA Interfaces, 80mbps Incoming Bandwidth, 8 PoE Interfaces HikVision DS-7608NI-Q2/8P 8Channel 8PoE NVR, 2 SATA Interfaces, 80mbps Incoming Bandwidth, 8 PoE Interfaces Up to 8-ch IP camera inputsH.265+/H.265/H.264+/H.264 video formatsUp to 1-ch @ 8MP or 5-ch @ 1080P decoding capacityUp to 80 Mbps incoming bandwidth2 SATA interfaces
