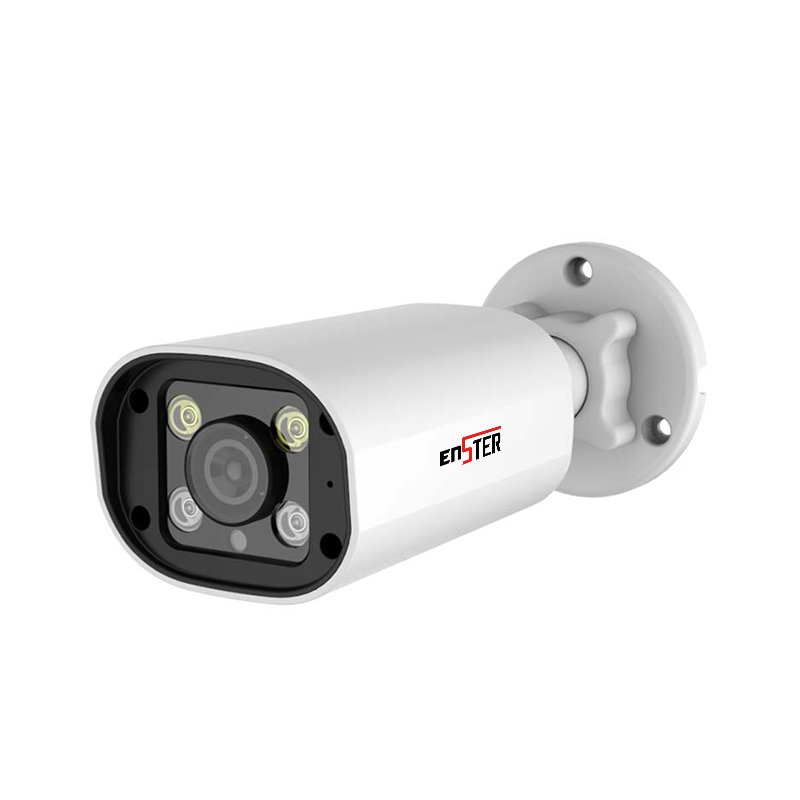

Motion Detection Sound Light Alarm
Face Detection Sound Light Alarm
Human Shap Detection Sound Light Alarm
Vehicle Car Detection Sound Light Alarm(8MP)

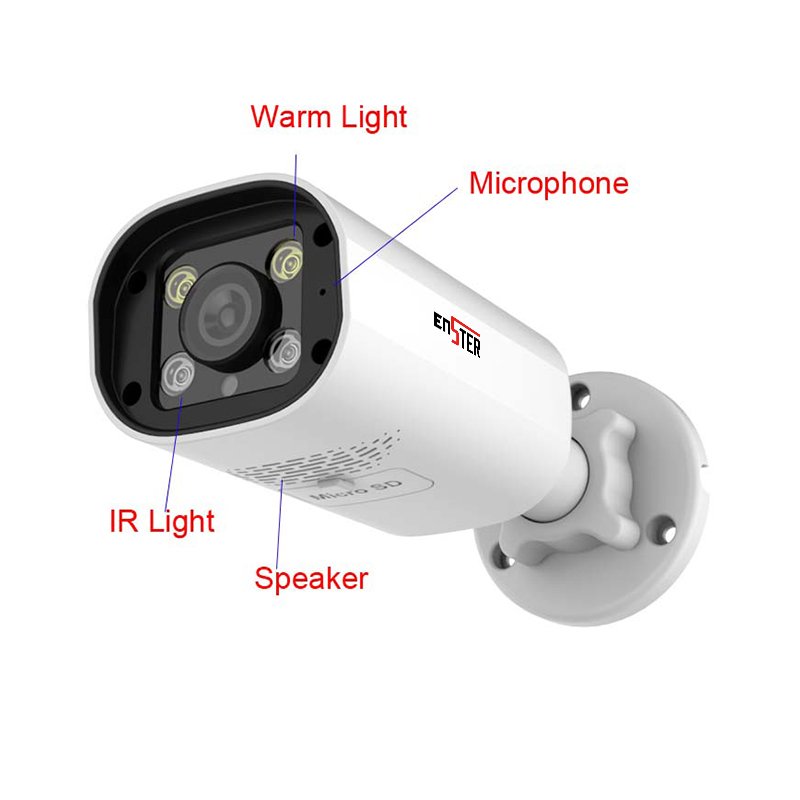

Built-in Microphone and Speaker
Variable Dual Light Warm light and IR light
Product Description
Model No. | NST-IPN6908 | NST-IPG6905 | NST-IPG6902 | |

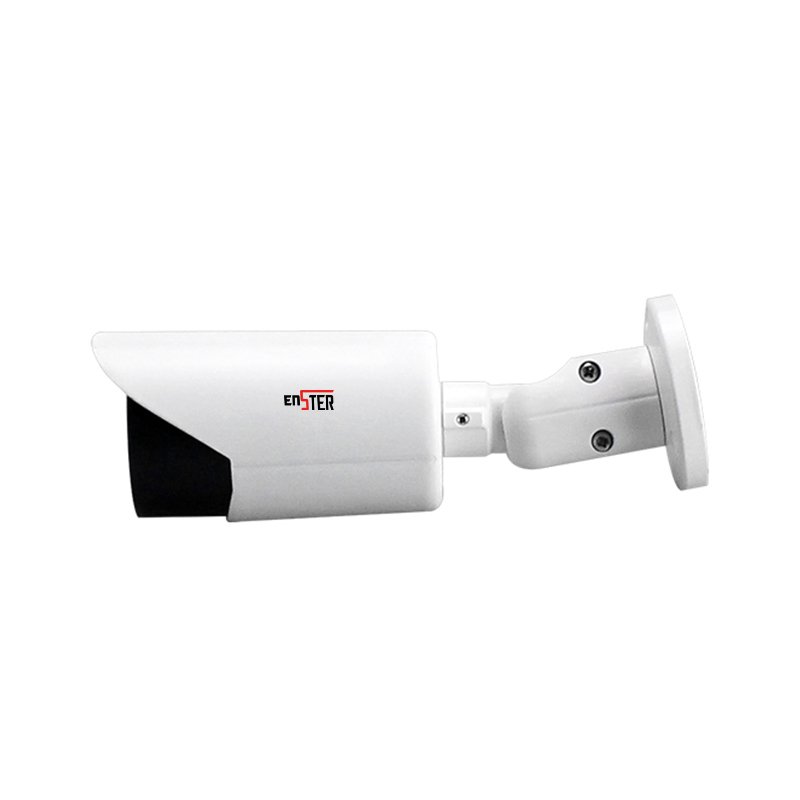

Camera Type | Fixed Lens Bullet IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 8.0 MegaPixels | 5.0 Megapixels | 2.0 MegaPixels |
Main stream:3840*2160@20fps | Main stream:2592*1944@20fps | Main stream: | ||
Sub stream:1280*720@25fps | Sub stream:704*576@25fps | Sub stream:704*576@25fps | ||
Image Sensor | 1/2.7" Cmos Sensor | 1/2.8" Sony IMX335 Cmos Sensor | 1/2.8" Sony IMX307 CMOS Sensor | |
| Soc Chipset | novatek | Goke GK7205 | Goke GK7205 | |
Min. Illumination | Color 0.01Lux/F1.2 | Color 0.01Lux/F1.2 | Color 0.01Lux/F1.2 | |
B/W 0.0001 Lux/F1.2 | B/W 0.001 Lux/F1.2 | B/W 0.01 Lux/F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |||
Video | Compression | H.265/H.264 Main profile | ||
Stream | support dual stream,AVI format | |||
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | |||
Frame Rates | support 1~30fps adjustable | |||
Audio | Input and output | 1ch input( micphone),1ch output( Speaker) Optional | ||
Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | |||
Network | 10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
ONVIF | Support (ONVIF 2.4) | |||
POE | Support(optional) | |||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | Board Lens 3.6mm | |||
Infrared Luminary | 2pcs Array IR LED+2pcs Array White LED | |||
Infrared Wavelength | 850nm | |||
Illuminate Distance | 30m | |||
Waterproof Criterion | IP 67 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
Weight | 0.6kg | |||
