Product Description

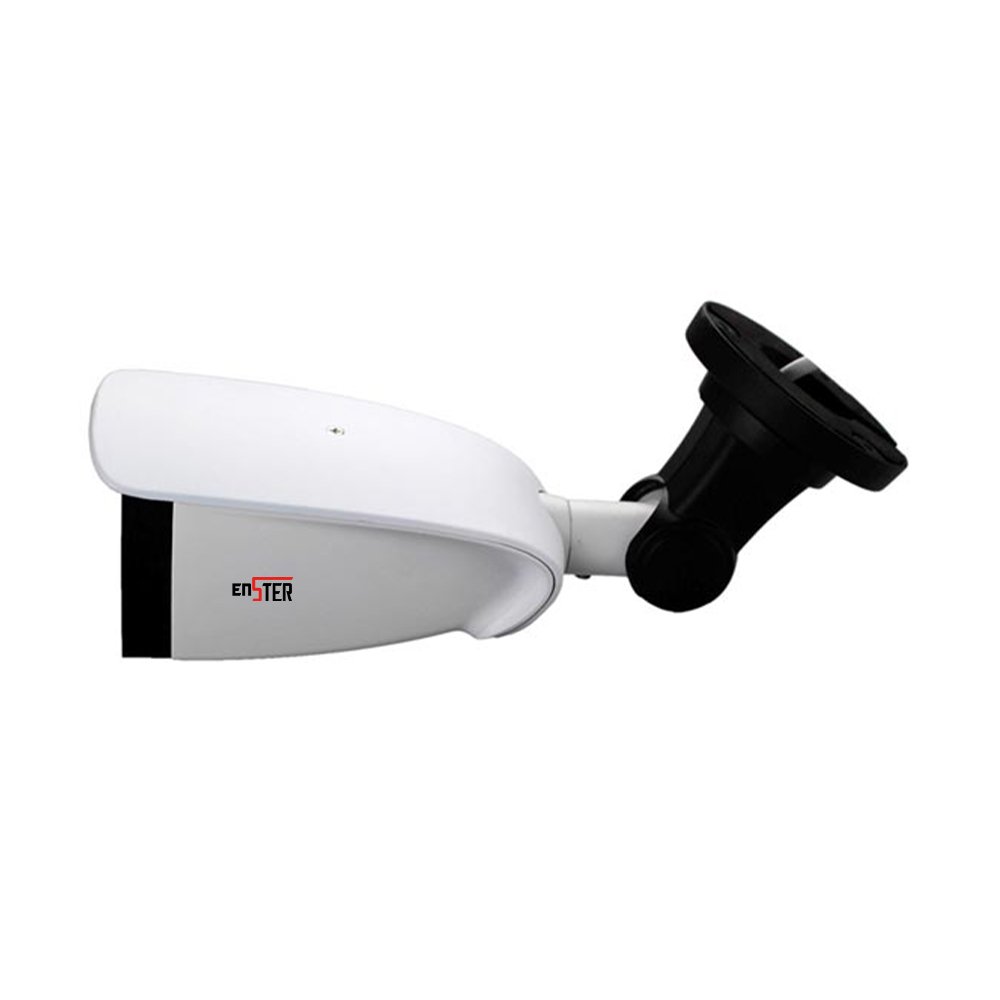

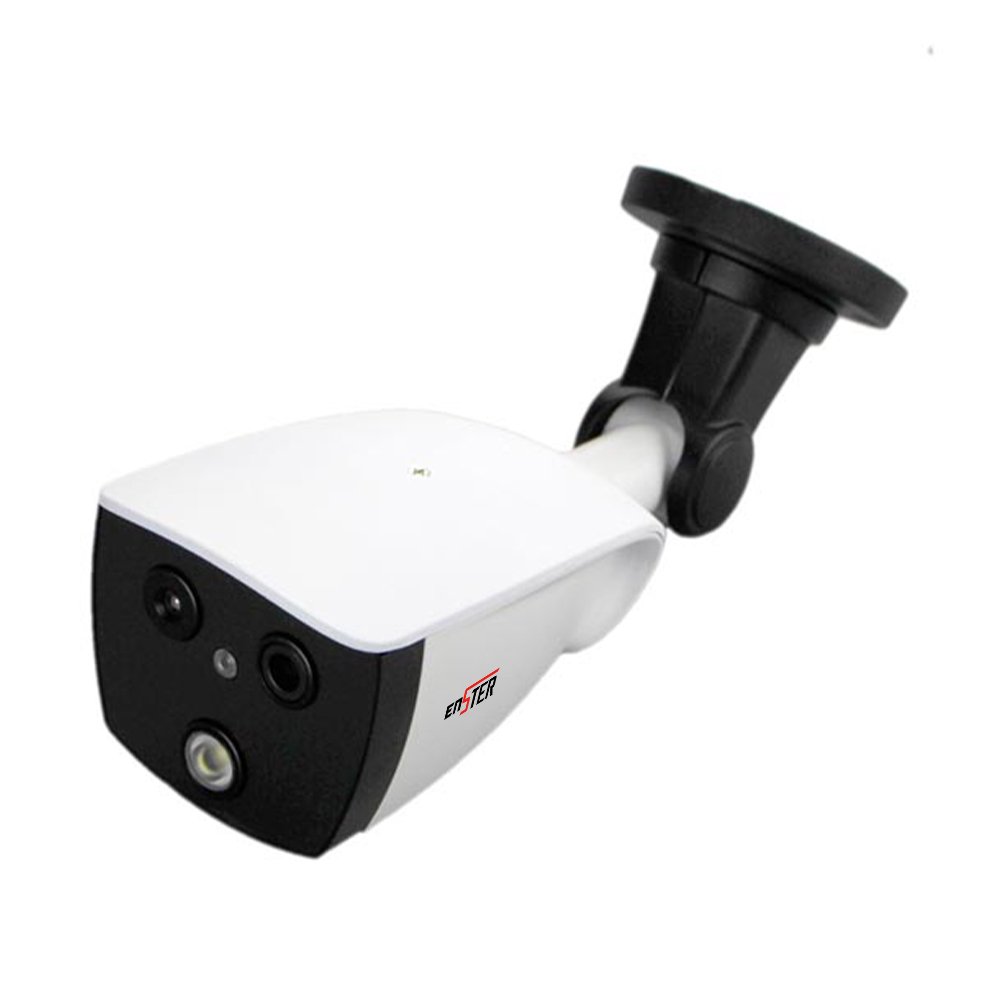

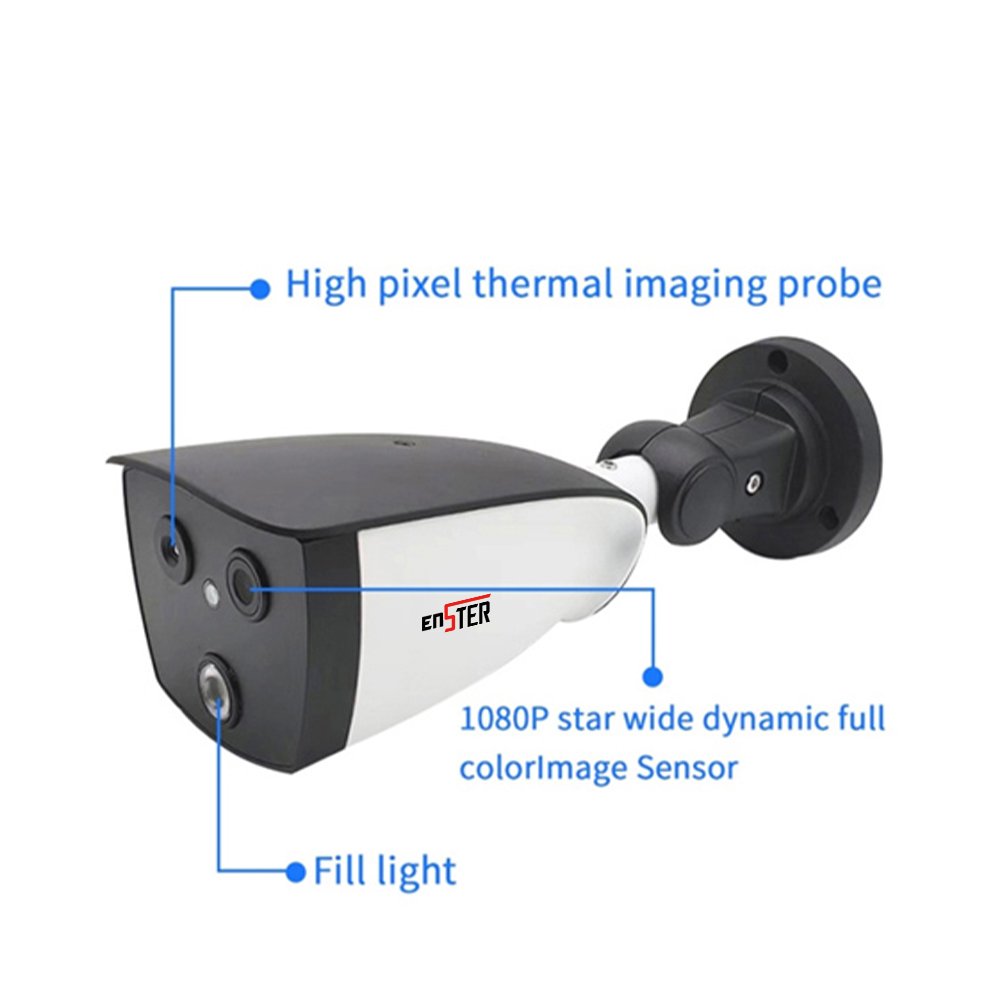

Binocular 2MP 1080P AI Body Temperature indicator Thermal imaging Camera
High sensitivity thermal module with 256 x 192 resolution NETD is less than 60 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR Up to 15 palettes of adjustable color
Reliable temperature-anomaly alarm Temperature Range From -15°C to +150°C High quality optical module with 2 MP resolution
Bi-spectrum image fusion, picture-in-picture preview
Model No. | NST-IPH5962-TH | |
| Thermal | Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 256×192 | |
| Pixel Interval | 12μm | |
| NETD | Less than 60 mK (@25°C,F#=1.1) | |
| Aperture | F1.0 | |
| Field of View | 35° × 27° (H × V) | |
| Optical | Image Sensor | 1/2.8" 2.0M Pixel CMOS |
| Resolution | 1920×1080P | |
| Min. Illumination | Color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) | |
| Field of View | 84° × 45° (H × V) | |
| Focal Length | 4mm | |
| Shutter Speed | 1s to 1/100,000s | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp | |
| Day & Night Mode | IR cut filter with auto switch | |
| WDR | 80 dB | |
| Feature | Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image | |
| Smart Function | Face snapping | Built-in deep learning AI algorithm, Supports simultaneous detection of 20-30 faces |
| Temperature Measurement | Support global and local temperature | |
| Temperature Range | From -15°C to +150°C | |
| Temperature Accuracy | Target temperature 35°C ^ 38°C ±0.3 °C | |
| Network | Main Stream | Thermal: 25fps(1920 × 1080, 1280 × 720) |
| Sub Stream | Thermal: 25fps(704 × 576, 352 × 288) | |
| Video Compression | H.265/H.264 (Baseline/Main/High Profile) /MJPEG | |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM | |
| Protocols | TCP/IP, ONVIF, GB/T 28181, DHCP, RTP, RTSP, PPPoE, UPnP, UDP | |
| API | ONVIF (Profile S, Profile G, Profile T), SDK | |
| General | Web Client Language | languages English, Chinese |
| Power | DC 12V, 0.65A | |
| Work Temperature/Humidity | From -20°C to 55°C; Humidity: 95% or Less | |
| Protection Level | IP67 | |
| Dimension | 246 mm × 101 mm × 81 mm (with bracket) | |
| Weight | Approx. 1.5 kg | |
