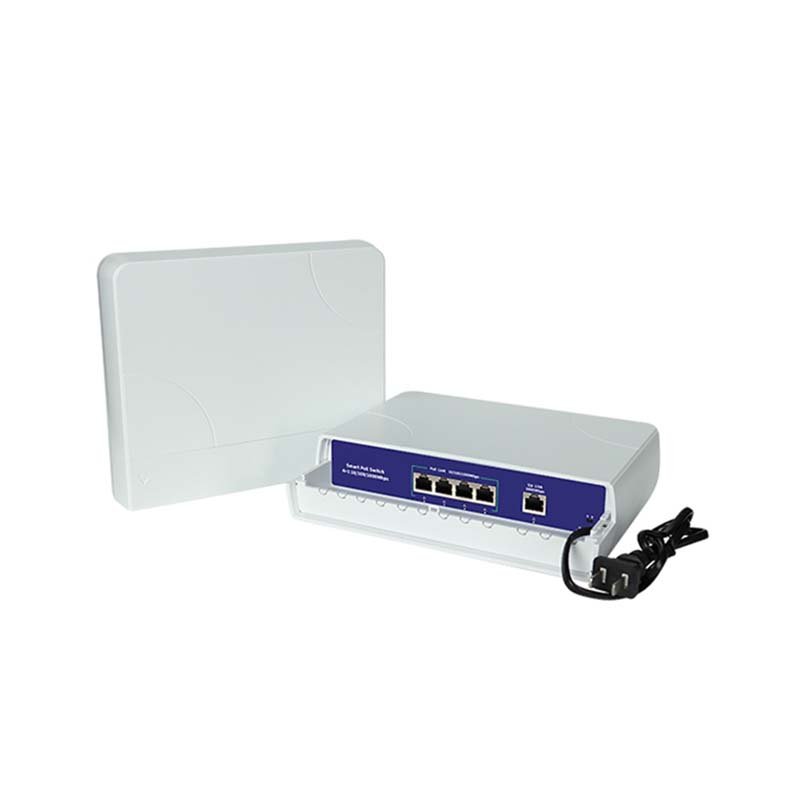

Outdoor Waterproof 5-Port Gigabit PoE Switch with 4 Port PoE

POE Switch can meet the demand of POE. It uses the latest high-speed Ethernet switching chip, has ultra-high backplane bandwidth design, and has extremely fast data processing capability and smooth data transmission performance. It has 4*RJ45 port，1* RJ45 uplink port. Each port max. power supply reached 30W, the whole power is78W. It can automatically detect and identify PD device that meets the IEEE 802.3af/at, support the priority.

Excellent port performance

l  Supply 4*10/100/1000Mpbs RJ45 self-adaption, high-speed forwarding and non-packet loss RJ45 port.

l  Supply 1*10/100Mpbs RJ45 uplink port.

l  All ports supported by MDI/MDIX auto flip and self-negotiation. Support IEEE802.3X Full-duplex and backpressure for half-duplex mode.

Excellent POE power supply performance

l  4*10/100/1000Mpbs RJ45 port support POE+，meets the requirements for security monitoring, teleconference system, and wireless coverage.

l  Detect the PD devices automatically and supply the power without damaging non-POE devices.

Network Standard：IEEE 802.3、IEEE 802.3u、IEEE 802.3x

Port:8个10/100/1000Mbps RJ45 port

POE power:8个10/100/1000Mbps RJ45 port support POE+;The whole power is 120W;Each port max. power supply reached 30W

POE Connection:Both1/2+、3/6- and 4/5+、7/8- End-span

Performance:Store and forward;MAC address table 4k;Switching capacity16Gbps

Forwarding Rate:10BASE-T:14880PPS/port;100BASE-tx：148800pps/port;1000BASE-tx：1488000pps/port

Port Function:Power priority mechanism, fast and forward, MAC automatic;learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment:Operating Temperature：-10℃ - -55℃

Power:Built in power base board;Input：110-220V，50HZ，Output：DC52V±5% 1.5A; ≤78W

Weight:0.85KG:

Size: 206mm×172mm×48mm(L×W×H)
