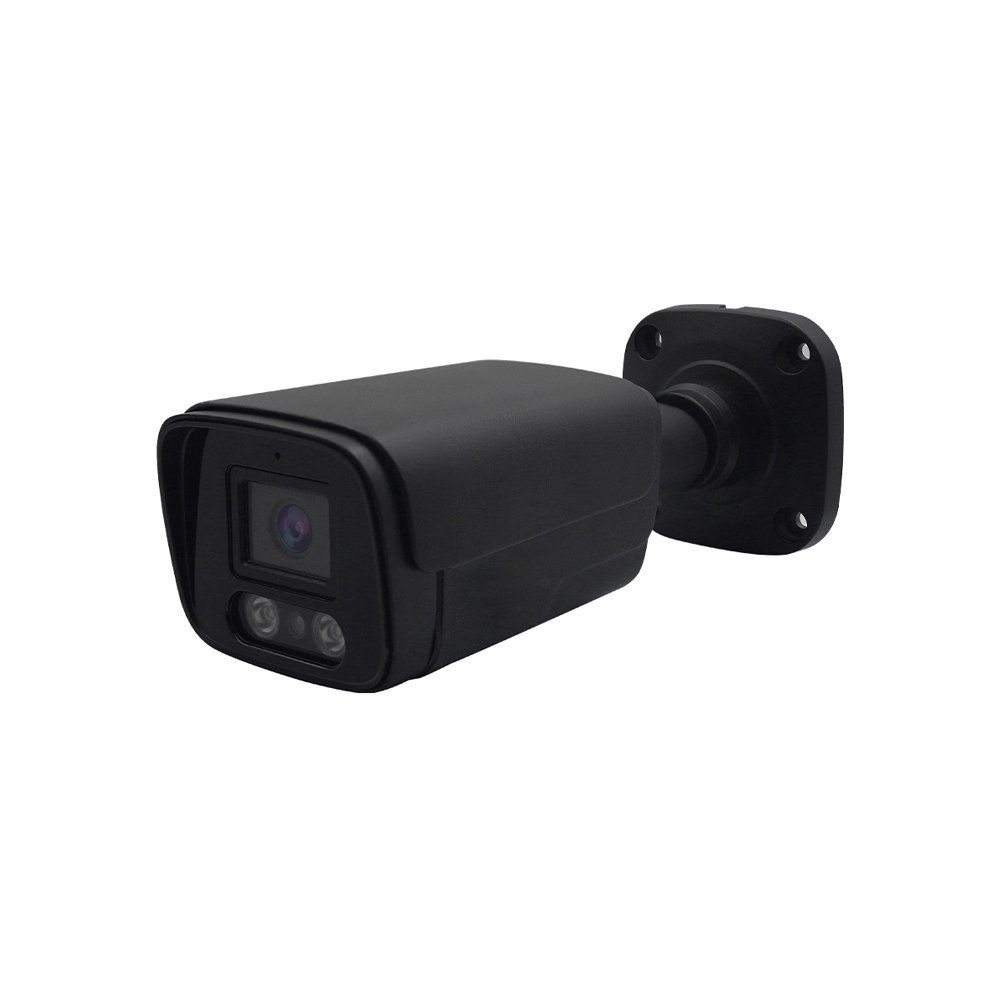

4K P2P Outdoor Bullet Night Vision Cctv Security IP Camera System 8MP 5MP Human Vehicle Detection WDR POE Network Camera

4K P2P Outdoor Bullet Night Vision Cctv Security IP Camera System 8MP 5MP Human Vehicle Detection WDR POE Network Camera

Compatible with Brand NVR
private protocol for connecting to Hikvision、Uniview NVRSupport Multi-frame Synthesis Optical Wide Dynamic Range(120DB)Support two-way voice intercom,2 way Micphone inputSupport IPV4
HTTPSSupport ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-TSupport Triple Stream: main stream
secondary stream
third stream

NST-IPM6855-FC

SEND INQUIRY NOW

Dual Micphone Pickup Voice 5 Megapixels POE Network Camera

equipped with dual MIC support to lengthen audio picking up distance and more clear audio

16:9 5.0 Megapixels

802.11af POE Network Camera

Model No.		NST-IPM6858-FC	NST-IPM6855-FC
Camera Type		Full Color Night Vision Turret WDR IP Camera
System		Embedded RTOS design
Camera	Image Sensor	1/2.8" Sony IMX415 Cmos Sensor	1/2.7" SC501AI Cmos Sensor
	Soc Chipset	Mstar SSC338Q	Mstar SSC30KQ
	Effective Pixels	8.0 MegaPixels	5.0 Megapixels
	Video Standard	38402160@20 (default), 28801620@30, 28801620@25, 25601440@30,25601440@25, 23041296@25, 23041296@30, 19201080@25 、 1920*1080@30	28801620@25, 25601440@25, 23041296@25, 19201080@25, 1920*1080@30
	Resolution	Mainstream: 38402160 (default), 28801620, 25601440, 23041296, 1080P	Main stream: 28801620 (default), 25601440, 2304*1296, 1080P, 720P
		Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF	Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF
		Third stream: D1, 640*360, 2CIF, CIF (default)	Three streams: D1, 640*360, 2CIF, CIF (default)
	Min. Illumination	Color 0.01Lux/F1.2; B/W 0.0001 Lux/F1.2	Color 0.01Lux/F1.2 ; B/W 0.001 Lux/F1.2
Video	Smart Coding	Support basic mode and advanced mode to reduce storage usage
	Compression	H.264, H.265 video coding; Support three streams
	OSD	Support time OSD , custom OSD , etc., up to 8 areas
	Privacy Mask	Support, up to 4 areas
	Area Enhancement	Support, up to 8
	Wide Dynamic	Support multi-frame synthesis optical wide dynamic range
	Noise reduction	Support 2D , 3D noise reduction
	shutter	Support automatic/manual mode; Support low smear mode; Support indoor 50/60Hz shutter mode, suppress power frequency flicker;
	scene mode	Support transparent (default), bright, standard three scene mode selection, adjust image style preference
Audio	Audio Input	Support 2 -way Micphone input
	Audio Output	Support 1-way Lineout audio output
	Audio Output	Maximum support for 64kbps transmission
	Audio processing	Support G.711u, G.711a codec standard; Support noise suppression;
Alarm	Types	With the expansion board, it can realize 1 in 1 out switch control; Can access or control sensors, access control switches and other equipment;
Network	IP acquisition method	PPPoE, Netcom (default enabled), DHCP, static IP address
	Protocol	Support IPv4, IP v6, HTTPS , TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS , NTP, port mapping and other network protocols;
	Compatibility	Support ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-T,realize the video preview and recording of docking mainstream brand NVR and PC client, etc.
	Network Interface	10/100M
	Client	Support mobile APP video preview (IOS, Android); Support local management of IPC by PC client, realize multi-channel IPC live broadcast, local hard disk storage, etc.;
	POE	Support(optional)
General	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Board Lens 3.6mm
	Aux Luminary	2pcs Warm Light LED
	Light Wavelength	580nm
	Illuminate Distance	20m
	Waterproof Criterion	IP 66
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Working Environment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	0.6kg
