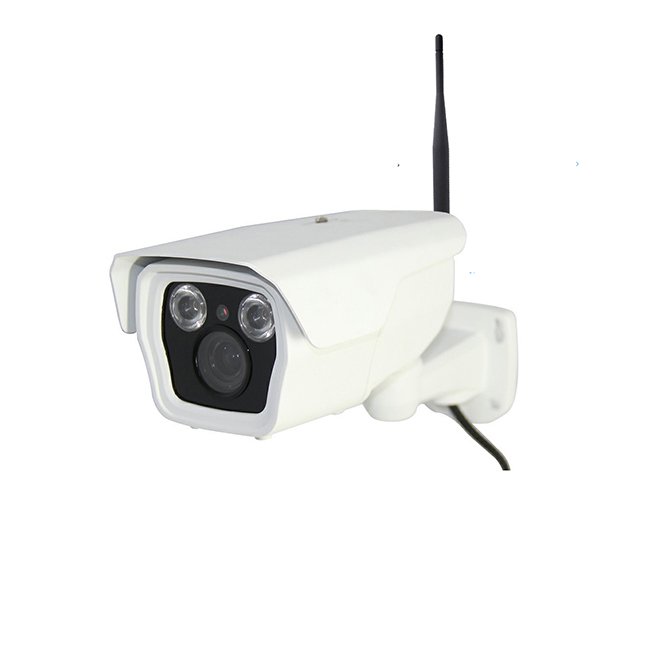

Professional Outdoor waterproof ICR wireless wifi ip camera with micro sd card slot

Feature: 1
HD Board Lens 3.6mm 2
Wi-Fi/802.11/b/g/n 3
Motion detection, email alert, FTP upload 4
IPCone, Android 3G phone Smartphone supported 5
Support max 128G TF Card.Indoor Use,power input DC 12V1A 6
P2P, PNP,Plug&Play,easy remote monitoring in anytime any where

NST-IPC5702E-W

SEND INQUIRY NOW

Product Description

无标题文档

Product name	Outdoor waterproof wifi ip camera with micro SD card
Model	NST-IPC5702E-W	NST-IPC5702S-W	NST-IPC57013-W	NST-IPC5701-W
Image Sensor	1/3" SONY CMOS sensor with ICR	1/3" OV CMOS sensor with ICR	1/3" OV CMOS sensor with ICR	1/4" OV CMOS sensor with ICR
Chipset	323+3518E	2023+3518E	H65+3518E	1034+GK7102C
Image Resolution/Frame Rate	2.0MP(1920*1080P)/15FPS	2.0MP(1920*1080P)/15FPS	1.3MP(1280*960P)/ 20FPS	1.0MP(1280*720P)/25/30FPS
Lens	fixed 3.6mm Lens
Day & Night	Yes
Infrared Sensitivity	support
Minimum illuminator	0.01Lux @(F1.2,AGC ON),0 LUX with IR
IR CUT	With
Aperture	Auto
Compression Technology	H.264
Max Coding Rate	128-8192kbps
Encoding Type	CBR or VBR
White Balance	ATW/Manual/Auto
Gamma Adjusting	0.45
R/N Ratio	More than 50DB
Image intensification	Brightness, Contrast, Saturation, HU Adjustable
Subtitle Input	Support Channels name, Date & time
Video Orientation	Left & Right Mirror, Up & down Flip
Audio input	Optional
Audio Format	G.711/G.726
Camera Access	Camera Access
Alarm	Motion Detection(Sensitivity adjustable)
Alert Processing	Control Center monitoring, go to preset point, Email send MSG, Log Record, Video & PIC save on PC
Network Port	RJ45
Safety	IP Address Filtering, User rank protect, User login log
Web Browser	IE browser 6.0 or advanced edition, google,firefox
Mobile Monitoring	iPhone,Android etc
Software management	CMS, Onvif support different platform software
Network Port	Support DDNS, P2P(NAT),software remote access
IR Distance	40M
Operating Enviroment	-20℃~60℃ / 10% ~ 95%RH
Voltage	DC12V (9V ~ 15V) Power consumption lower than 2W
Dimension	263(L) x119(W) x94(H)mm
Video Protocol	TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3, NTP,R TP, and RTSP, Onvif2.0
Accessories	CD, Screw package
